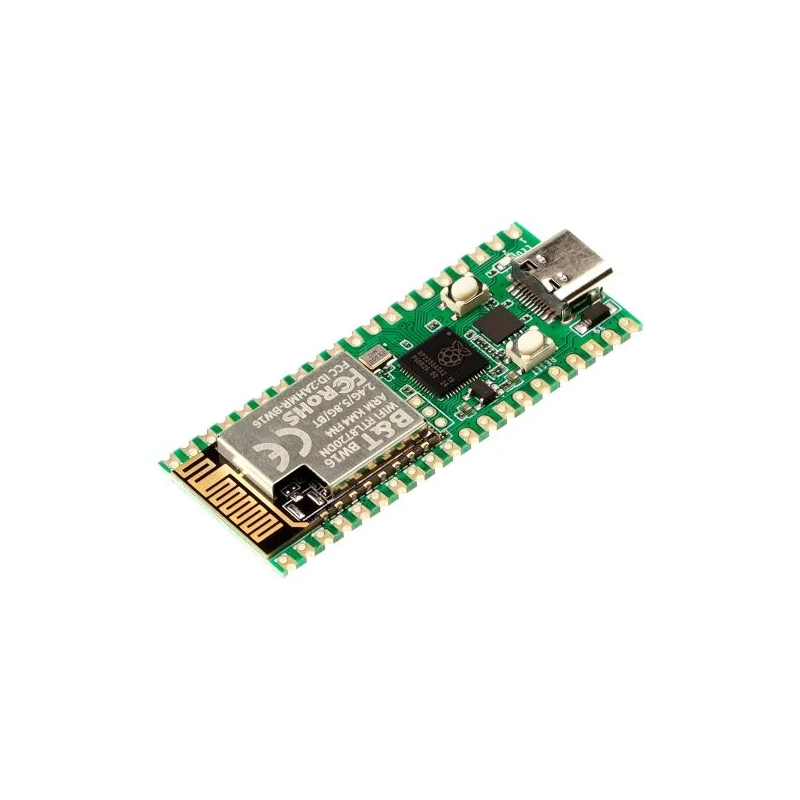

This development board is based on the Raspberry Pi RP2350 microcontroller with an Arm Cortex-M33 or RISC-V Hazard3 core. It offers 2.4/5 GHz Wi-Fi, Bluetooth 5.0, and 8 MB of Flash memory, delivering high performance in a compact form factor. With a USB-C port and full Pico W compatibility, it's ideal for IoT projects, home automation, and learning to program. Elecrow RP2350 Pico W5 Board

24h
Available
Available quantity: 9

Description

RP2350 Pico W5 is a modern development board based on the Raspberry Pi RP2350 microcontroller, designed for IoT projects, education, prototyping, and low-power embedded systems. The device offers exceptional flexibility and performance thanks to the use of either an Arm Cortex-M33 core or a RISC-V Hazard3 core, enabling a wide range of applications. The board supports dual-band Wi-Fi 2.4 GHz and 5 GHz as well as Bluetooth Low Energy and Bluetooth 5.0, making it ideal for creating modern wireless solutions.


Compared to the Raspberry Pi Pico W model, the new Pico W5 offers larger Flash memory capacity (8 MB) and a USB Type-C connector instead of micro-USB, providing greater convenience and compatibility with modern accessories. It maintains full dimensional and pinout compatibility with the original Pico, ensuring support for most existing modules and add-ons. The design allows for easy soldering and integration with custom baseboards.

RP2350 Pico W5 supports both C/C++ and MicroPython, and with its complete SDK and open tutorials, it is an excellent choice for both professionals and beginners. It is perfect for projects such as smart IoT devices, wireless control systems, home automation, and microcontroller programming education. This versatile platform combines cutting-edge technology with ease of use in a compact form factor.

Features

  • Processor: Raspberry Pi RP2350 with Arm Cortex-M33 or dual Hazard3 RISC-V cores
  • Memory: 520 KB SRAM + 8 MB Flash
  • Wireless connectivity:
    • Wi-Fi 802.11 a/b/g/n (2.4 GHz and 5 GHz)
    • Bluetooth 5.0 + BLE
  • Interface: USB Type-C for power and programming
  • Buttons: RESET (system reset), BOOT (firmware update)
  • User LED indicator

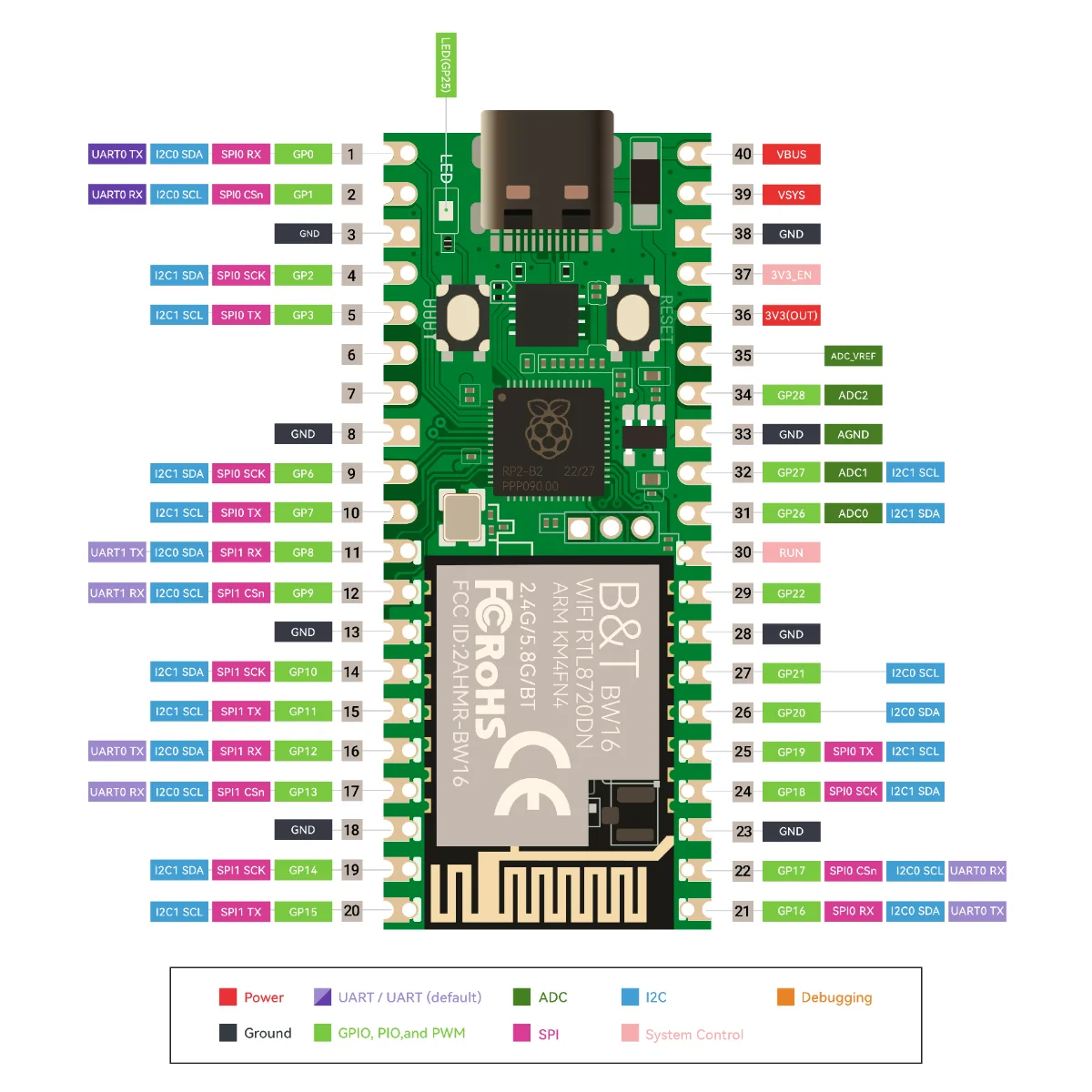

  • Full compatibility with Raspberry Pi Pico and Pico W – identical size, pins, and layout
  • Supported languages: C/C++, MicroPython
  • Power supply: 5V / 2A via USB port
  • Operating temperature range: –10°C ~ +60°C
  • Dimensions: 51 × 21 × 4.2 mm
  • Weight: 6 g
1201673

Data sheet

Microcontroller
RP2350
Flash memory
8 MB
Number of I/O
26
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
Yes
Length
51mm
Width
21 mm
USB connector type
USB type C
