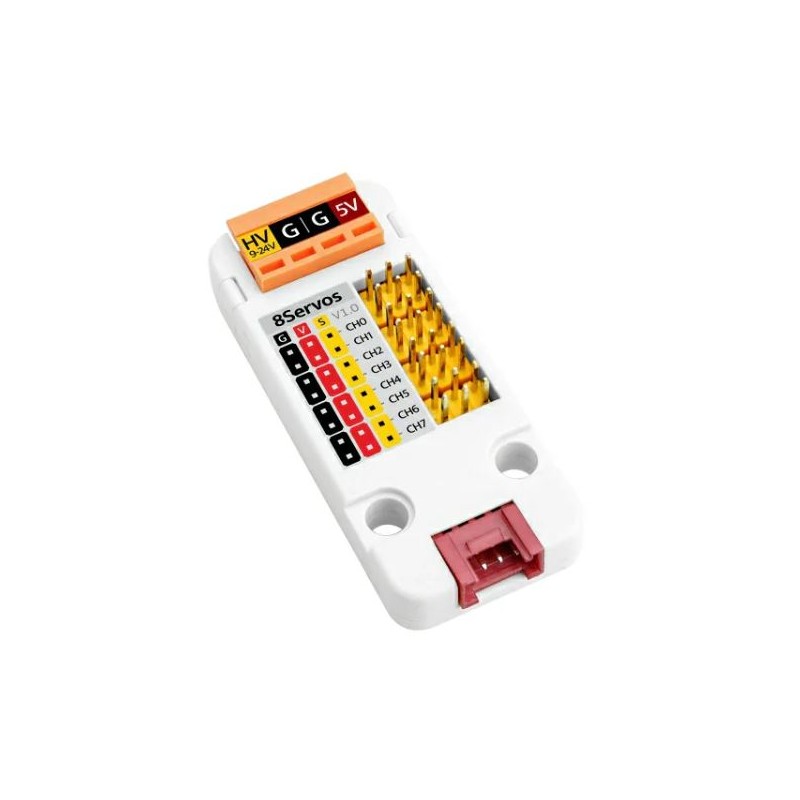

U165 – rear side (angled view)
search
  • U165 – rear side (angled view)
  • U165 – front side (angled view)
  • U165 – rear (top view)
  • U165 – front (top view)
  • U165 – complete set
ID: 1200557
zł37.55
Tax included

zł30.53 tax excl.

U165 module designed for controlling up to eight servo motors using I2C communication in M5Stack systems

24h
Available
Available quantity: 2

Description

The U165 module is used in electronic, robotic, and mechatronic projects that require simultaneous control of multiple servo motors. The design is based on the STM32F030 microcontroller, which generates PWM signals for eight independent channels and communicates with a host controller via the I2C bus. The module supports connection of standard RC servo motors and integration with M5Stack controllers through a Grove connector. Typical applications include mobile robots, robotic arms, educational platforms, and prototyping projects that require multi-channel motion control.

Features

  • Module type: servo driver
  • Number of channels: 8
  • Microcontroller: STM32F030
  • Communication: I2C
  • Output signal: PWM
  • Control interface: Grove 4-pin (HY2.0)
  • Servo connectors: 3-pin
  • Servo power supply: external, according to module specification
  • Manufacturer: M5Stack
  • Manufacturer part number: U165

Kit includes

  • 1× U165 8Servos Unit module
  • 1× HT 3.96mm 4-pin connector
  • 1× Grove 4-pin cable (HY2.0) – 20cm
1200557

Data sheet

Microcontroller
STM32F030
Flash memory
16kB
Number of I/O
02
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
55 mm
Width
24mm
USB connector type
Brak
