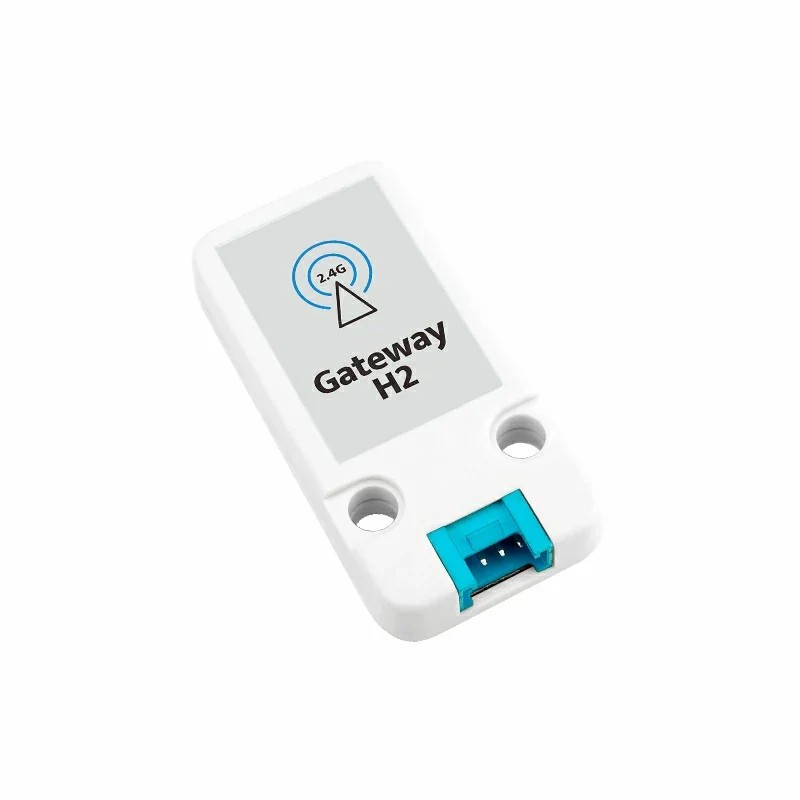

ESP32-H2 M5Stack Thread/Zigbee Gateway Module
ID: 1201386
5902186332393
zł35.30
Tax included
zł28.70 tax excl.
The ESP32-H2 Gateway Unit with ZigBee, Thread, and Matter support enables the development of energy-efficient IoT applications and the integration of intelligent systems. Designed to operate as a gateway or end node in wireless networks based on the IEEE 802.15.4 standard. M5Stack U195
Description
The Unit Gateway H2 network gateway module, based on the ESP32-H2-MINI-1-N2 chip with a 32-bit single-core RISC-V processor, supports IEEE 802.15.4 wireless communication with ZigBee, Thread, and Thread-based Matter protocols. It communicates with M5 series devices via a UART interface via the Grove connector (Port C), enabling integration with smart home systems, environmental monitoring, and sensor networks. It can operate as a gateway (e.g., Thread Border Router) or an end device, working with a host or standalone in IoT applications. It features a built-in encryption chip, a programming connector, and a USB Type-C port for debugging and firmware updates.
Features
- Supports ZigBee, Thread, and Matter protocols
- Integrated IEEE 802.15.4 technology
- UART communication
- Built-in hardware encryption
- Low power consumption
- Development platforms: Arduino IDE, ESP-IDF
Included
- 1x Unit Gateway H2
- 1x Grove HY2.0-4P cable (20 cm)
