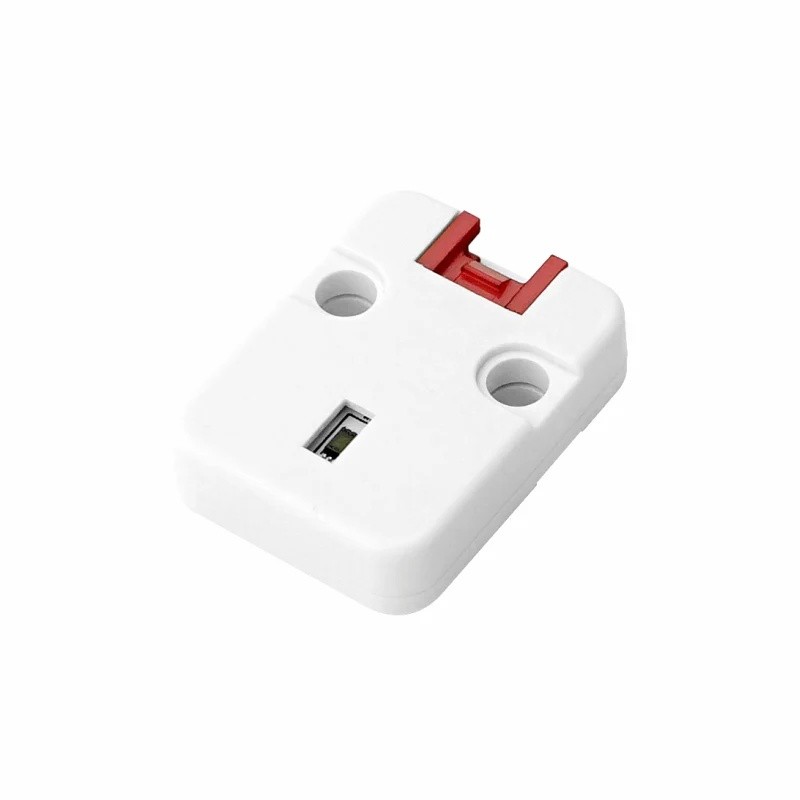

Light intensity sensor DLight Unit - M5Stack U096
ID: 1200563
5902186332348
zł30.90
Tax included
zł25.12 tax excl.
The DLight Unit module with the BH1750FVI-TR sensor enables digital illuminance measurement with high resolution and low power consumption. It is suitable for automation systems, measurement devices, and IoT projects requiring precise light detection. M5Stack U096
Description
The DLight Unit module with the BH1750FVI-TR digital light intensity sensor enables precise lighting measurement in the range of 1 to 65,535 lux. Thanks to a 16-bit analog-to-digital converter, it provides accurate representation of lighting conditions as digital data. It communicates with a microcontroller via an I2C bus (address: 0x23), facilitating integration with microcontroller-based systems.
The sensor's high sensitivity and typical maximum sensitivity wavelength of 560 nm enable reliable detection of light from a variety of sources, including incandescent lamps, fluorescent lamps, halogen lamps, white LEDs, and sunlight. The module's small dimensions (32 x 24 x 8 mm) allow for installation in confined spaces, making it suitable for applications in building automation systems, smart factories, and environmental monitoring devices. Low current consumption (<143 µA at 5 V) facilitates use in battery-powered projects.
Features
- Light intensity measurement range: 1–65535 lx
- Communication via I2C interface (address: 0x23)
- 16-bit ADC
- Typical maximum sensitivity wavelength: 560 nm
- Supports various light sources (artificial and natural)
- HY2.0-4P connector
- Current consumption: <143 µA at 5 V
- Dimensions: 32 × 24 × 8 mm
- Net weight: 4.8 g
Included
- 1 x DLight Unit
- 1 x Grove cable
