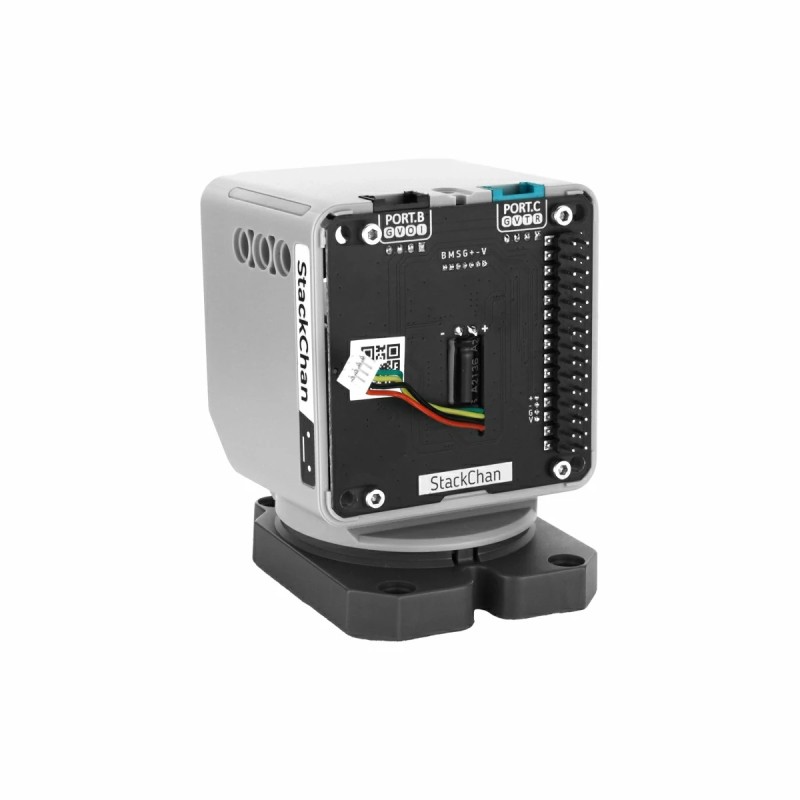

Replacement body for the StackChan desktop robot; two feedback servos providing 360° horizontal rotation and 90° vertical tilt; 550 mAh battery; 12 RGB LEDs; infrared transmitter and receiver; three capacitive touch pads; NFC interface; GPIO and UART ports; USB Type-C connector for power and data transmission; dimensions of 48 x 60.1 x 70.4 mm. M5Stack A180

24h
Available
Available quantity: 1

Opis

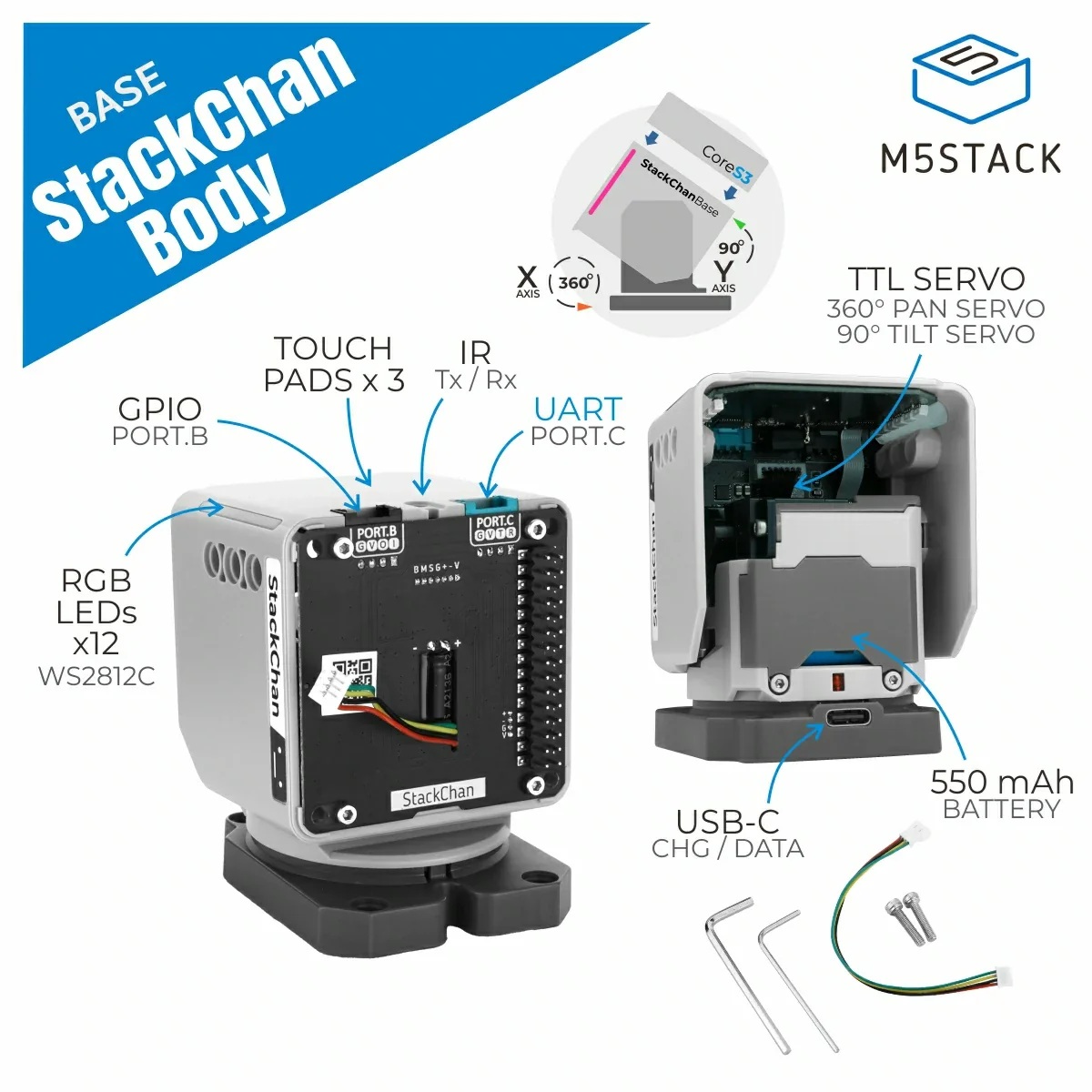

StackChan robot body designed to replace the mechanical and electronic body assembly in the M5Stack StackChan desktop robot. The StackChan Body (A180) module features two feedback servos providing 360° horizontal rotation and 90° vertical tilt. A built-in 550 mAh battery powers the device, while the USB Type-C connector provides power and data connectivity. The body also includes 12 WS2812C RGB LEDs, an infrared transmitter and receiver, and three capacitive touch pads located on the top of the enclosure.

StackChan robot body replacement - restores the motion mechanism and built-in control components without replacing the entire robot.

Two-axis head movement - enables horizontal rotation and vertical tilting during animations and user interactions.

Visual status indication - uses 12 programmable RGB LEDs to display operating states and lighting effects.

Touch control - detects user interactions through three capacitive touch pads.

Infrared communication - enables the transmission and reception of IR signals.

The body provides a GPIO port (Port.B) and UART interface (Port.C). It also features an NFC interface.


The assembly is designed to work with the original StackChan Core controller and allows the body of the StackChan robot to be replaced. The Stackchan App supports original StackChan controllers, including those used in the standard StackChan robot and the Remote Controller Kit. StackChan user firmware must be flashed to the controller before using the application. The application does not support CoreS3, CoreS3-SE or CoreS3-Lite controllers. The body measures 48 x 60.1 x 70.4 mm and weighs 145.3 g.

Features

  • Mechanical design and drive system
    • Product type: replacement body for the StackChan robot
    • Servos: 2, with feedback
    • Horizontal rotation range: 360°, continuous rotation
    • Vertical tilt range: 90°
  • Interfaces and sensors
    • USB Type-C: power and data transmission
    • GPIO port: Port.B
    • UART port: Port.C
    • Infrared transmitter
    • Infrared receiver
    • Capacitive touch pads: 3
    • NFC interface
  • Lighting and power supply
    • RGB LEDs: 12 x WS2812C
    • RGB LED arrangement: 2 rows
    • Battery capacity: 550 mAh
  • Mechanical specifications
    • Dimensions: 48 x 60.1 x 70.4 mm
    • Weight: 145.3 g
    • Package dimensions: 100 x 100 x 57 mm
    • Gross weight: 201.5 g

Kit includes

  • M5Stack StackChan Body A180
  • 2 x M3 x 14 mm button-head screws
  • 1.5 mm L-shaped hex key for M2 screws
  • 2.5 mm L-shaped hex key for M3 screws
  • 1.25-4P male-to-female extension cable, 100 mm
