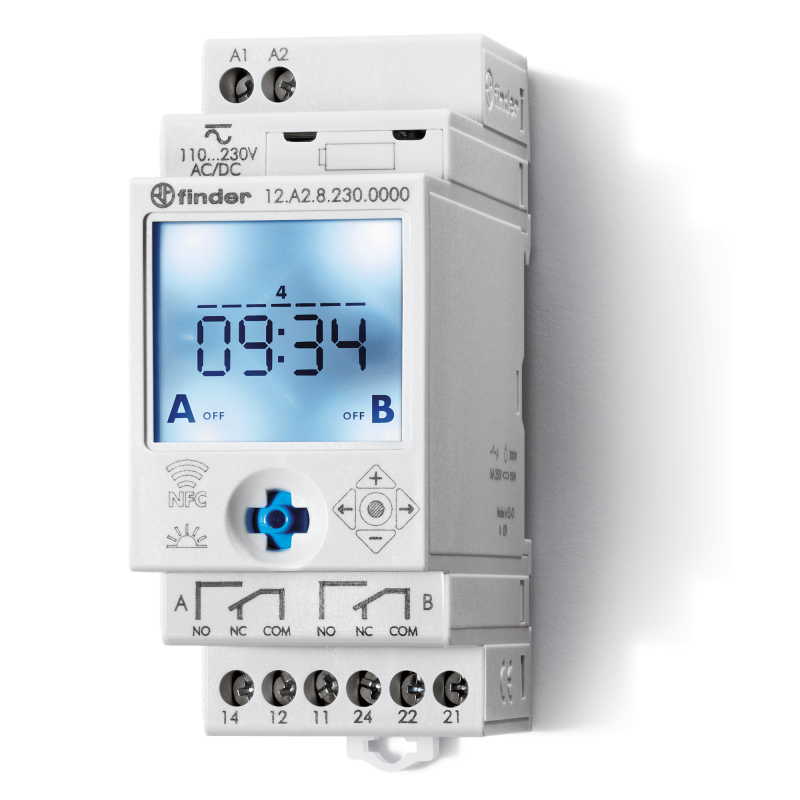

Time switch 16A, 250VAC – Finder 12.A2.8.230.0000
ID: 1195560
8012823402260
zł458.09
Tax included
zł372.43 tax excl.
Finder 12.A2.8.230.0000 is a digital time switch with an astronomical function, allowing precise control of lighting and other devices based on local light conditions. It is used in building automation and outdoor lighting systems.
Description
The Finder 12.A2.8.230.0000 electronic time switch with astronomical function enables automatic control of devices based on calculated sunrise and sunset times according to geographic location. The timer is equipped with two changeover contacts (SPDT), each rated at 16 A at 250 V AC. It offers ASTRO operation modes, manual ON/OFF control, and a pulse output function with a duration from 1 second to 59 minutes. Programming can be performed using a joystick or a smartphone via NFC. Designed for DIN rail mounting.
Specifications
- Programming type: weekly + astronomical (ASTRO)
- Functions: ASTRO ON/OFF, manual ON/OFF, pulse output 1 s – 59 min
- Contact configuration: 2 changeover (SPDT)
- Contact voltage rating: 250 V AC
- Contact current rating: 16 A
- Programming: joystick (Classic) or NFC (Smart)
- Power supply: 110–230 V AC/DC
- Dimensions: 35 × 84 × 56.5 mm
- Mounting: DIN rail
- Width: 35 mm
1195560
Data sheet
- Output current
- 16 A
- Number of channels
- 2
- Coil voltage
- 250 VAC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
