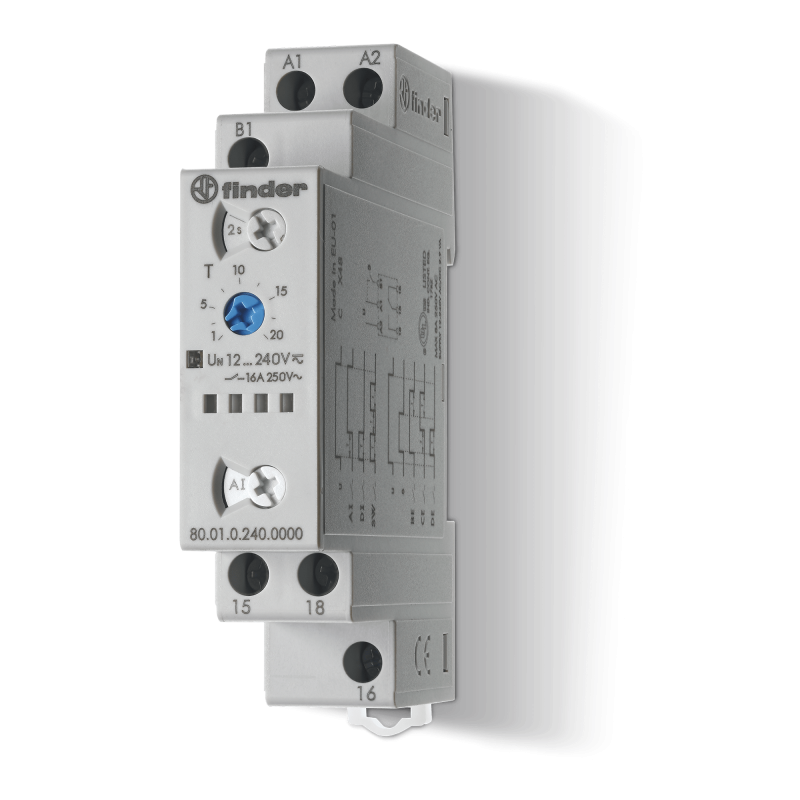

Modular time relay 16A, 250VAC – Finder 80.01.0.240.0000
ID: 1195563
8012823274584
zł227.11
Tax included
zł184.64 tax excl.
Finder 80.01.0.240.0000 is a compact multifunctional time relay for industrial and building automation applications. It offers great flexibility with 6 operating modes, a wide supply voltage range, and precise time setting capabilities.
Description
Finder 80.01.0.240.0000 is a universal time relay designed for DIN rail mounting, offering six timing functions: delay on operate (AI), delay on release (DI), pulse (SW), asymmetric cyclic (BE), symmetric cyclic (CE), and pulse-triggered (DE). It provides a selection of six time ranges, from 0.1 seconds to 24 hours. It supports a wide supply voltage range from 12 to 240 V AC/DC. Parameter configuration is done manually using a flat or Phillips screwdriver.
Specifications
- Relay type: multifunctional time relay
- Number of functions: 6 (AI, DI, SW, BE, CE, DE)
- Number of contacts: 1 changeover (SPDT)
- Contact rating: 16 A
- Contact voltage rating: 250 V AC
- Supply voltage: 12–240 V AC/DC
- Time setting ranges: 0.1…2 s, 1…20 s, 0.1…2 min, 1…20 min, 0.1…2 h, 1…24 h
- Mounting: DIN rail 35 mm
- Dimensions: 17.5 × 84 × 56.5 mm
1195563
Data sheet
- Output current
- 16 A
- Number of channels
- 1
- Executive element
- Time relay
- Coil voltage
- 250 VAC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
