Time switch 16A 250VAC – Finder 12.A1.8.230.0000
ID: 1195592
8012823402253
zł382.46
Tax included
zł310.94 tax excl.

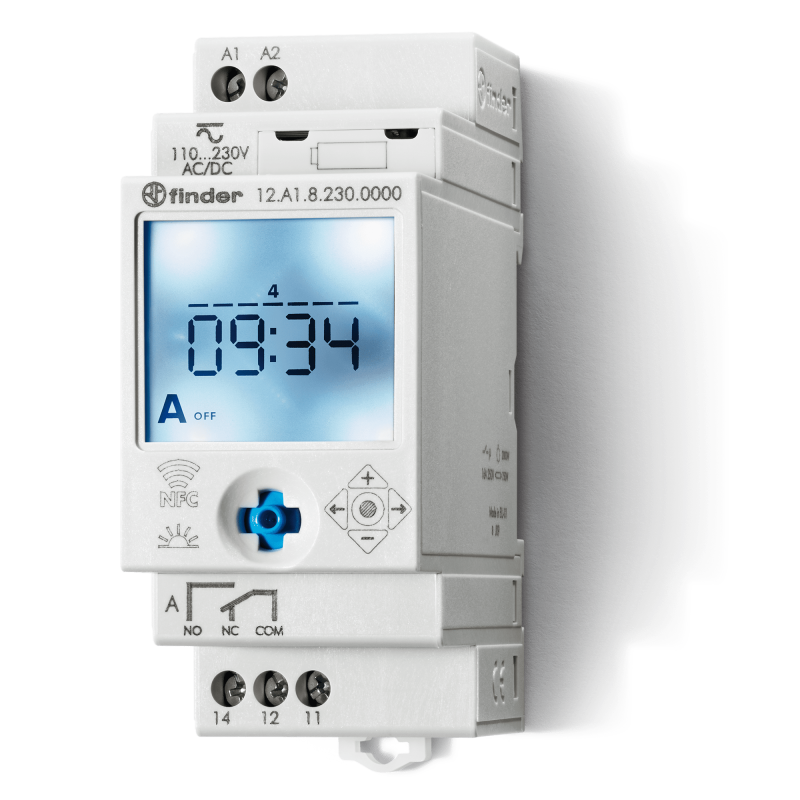

Finder 12.A1.8.230.0000 is a digital time switch with an astronomical function, designed for precise control of lighting and devices based on the sun's position. It is used in both outdoor and indoor installations where automatic control depending on daylight conditions is required.
Description
The Finder 12.A1.8.230.0000 electronic time switch with astronomical function allows control of lighting and electrical devices based on calculated sunrise and sunset times. The ASTRO program uses the date, time, and geographic coordinates to automatically adjust switch-on and switch-off times. The device also offers manual (ON/OFF) and pulse (1 s – 59 min) operating modes. Configuration is possible via a traditional joystick (Classic mode) or through a smartphone using NFC communication (Smart mode). Designed for DIN rail mounting, housed in a 35 mm-wide enclosure.
Specifications
- Programming type: weekly + astronomical (ASTRO)
- Functions: ON, OFF, ASTRO ON, ASTRO OFF, pulse (1 s – 59 min)
- Number of contacts: 1 changeover (SPDT)
- Contact voltage: 250 V AC
- Contact current: 16 A
- Programming: joystick (Classic) or NFC (Smart)
- Power supply: 110–230 V AC/DC
- Dimensions: 35 × 84 × 56.5 mm
- Mounting: DIN rail
- Display: backlit LCD
- Protection rating: IP 20
1195592
Data sheet
- Output current
- 16 A
- Number of channels
- 1
- Executive element
- Time relay
- Coil voltage
- 250 VAC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
