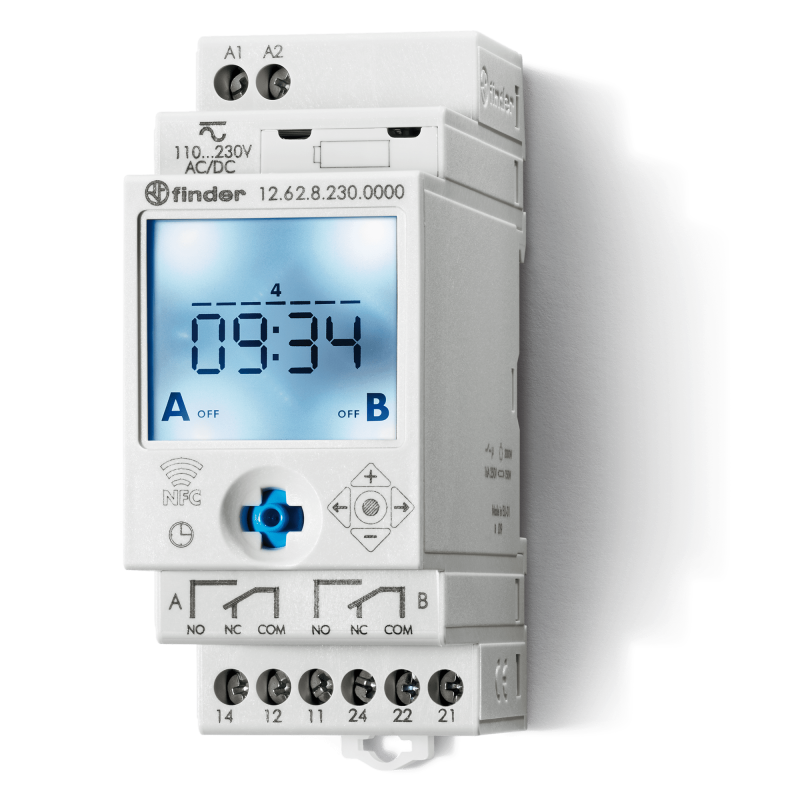

Time switch 250 VAC 16 A – Finder 12.62.8.230.0000
ID: 1195595
8012823402246
zł403.48
Tax included
zł328.03 tax excl.
Finder 12.62.8.230.0000 is a weekly time switch with two 16 A contacts and the ability to be programmed both manually and via NFC. It is used for automating lighting, heating, and other timed systems in residential and industrial installations.
Description
The Finder 12.62.8.230.0000 electronic time switch allows weekly programming of on/off cycles for electrical circuits. It is equipped with two changeover contacts (2×SPDT), each rated at 16 A at 250 V AC. Operating modes include on/off and pulse mode (from 1 second to 59 minutes). Programming can be done using the traditional joystick interface ("Classic" mode) or via a mobile app using NFC communication ("Smart" mode). The timer is designed for DIN rail mounting in electrical distribution boards.
Specifications
- Programming type: weekly
- Number of contacts: 2 changeover (SPDT)
- Contact voltage: 250 V AC
- Contact current: 16 A
- Pulse time range: 1 s – 59 min
- Programming: joystick (Classic) or NFC (Smart)
- Power supply: 110–230 V AC/DC
- Dimensions: 35 × 84 × 56.5 mm
- Mounting: DIN rail
- Protection rating: IP 20
1195595
Data sheet
- Output current
- 16 A
- Number of channels
- 2
- Executive element
- Time relay
- Coil voltage
- 250 VAC
