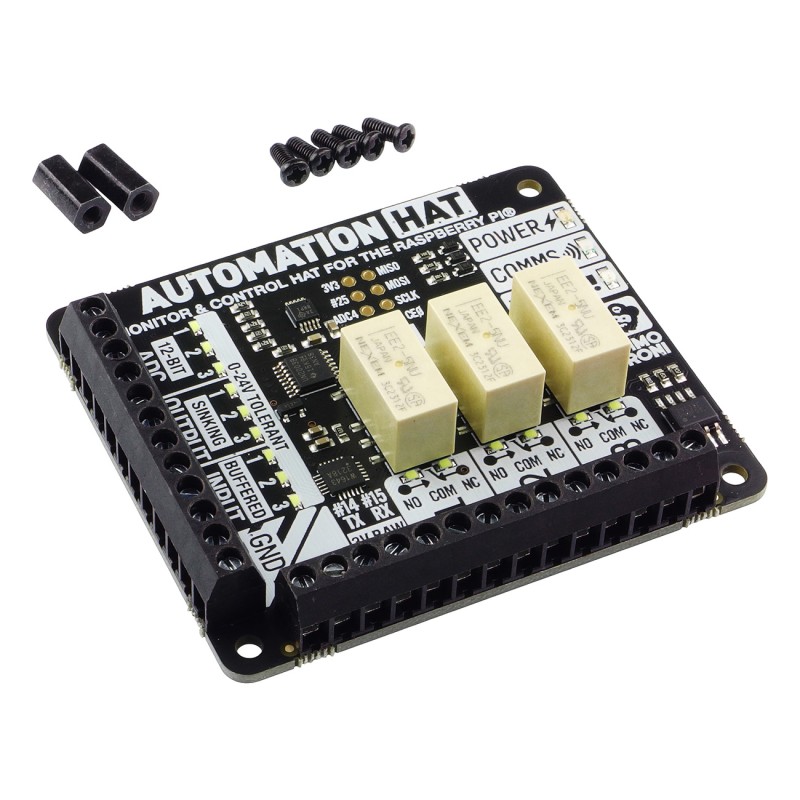

Automation HAT - home automation extension module for Raspberry Pi
ID: 585219
704256794705
€44.18
Tax included
€35.92 tax excl.
Extension module compatible with Raspberry Pi. The board is equipped with three 24 V 2 A relays, three buffer inputs, three sink outputs and three analog inputs with a working range up to 24 V. Pimoroni PIM213
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Extension module designed for home automation projects compatible with Raspberry Pi. The board is equipped with three 24 V relays with a maximum switchable current up to 2 A, three buffer inputs, three sink type outputs and three analog inputs with a working range up to 24 V. Thanks to this, the module can work with devices operating with voltages of 12 V and 24 V The analog inputs are supported by a 12-bit ADC converter, and the sink outputs can supply currents up to 500 mA (for all three outputs in total). All inputs and outputs are led out to screw connections. Additionally, the user has at his disposal a connector with UART and SPI interface that enables the connection of sensors and communication with external modules. On the product page there is a dedicated Python library and a guide to help you get started with the board.
Features
- 3 x relay 24 V @ 2 A (NC and NO terminals)
- 3 x 12-bit analog input 0-24V, ADC ADS1015 converter (accuracy ± 2%)
- 3 x 24 V buffer input
- 3 x 24V sink type output
- 1 x 12-bit analog input 0-3.3V
- 15 x LED indicators for each IO
- SPI, UART interface
- 3.5mm screw terminals
- LED indicator for power, communication and alarm
- Compatible with all Raspberry Pi models with a 40-pin connector
- Python library
585219
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
