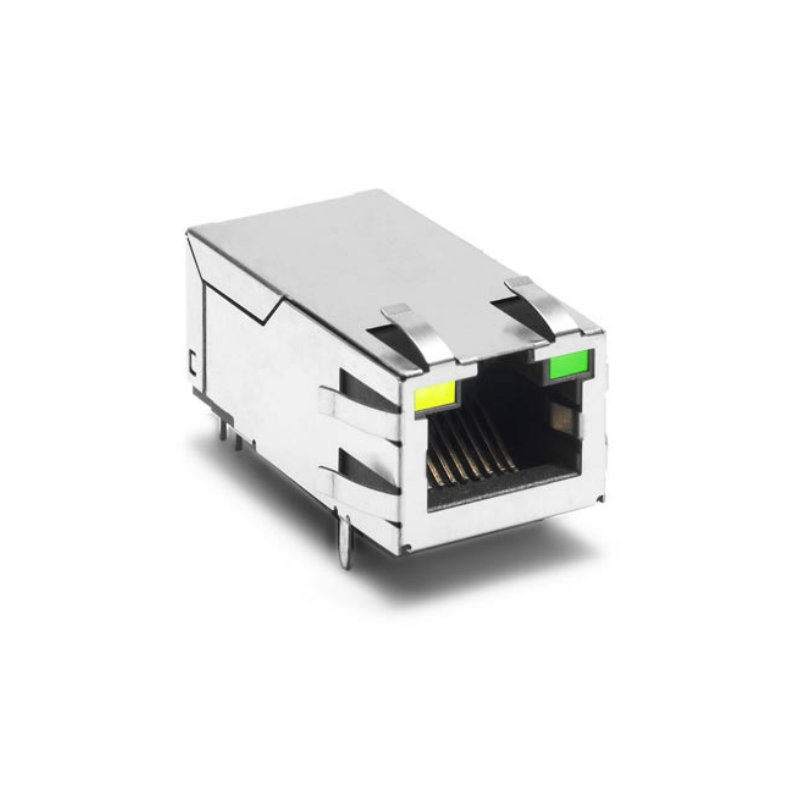

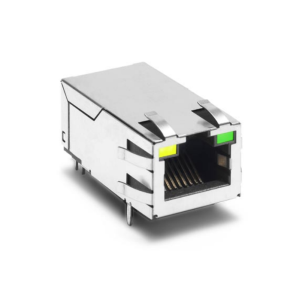

JK0-0036NL - RJ45 Connector with Integrated Magnetics (PulseJack) - Pulse Electronics
ID: 570147
zł11.89
Tax included
zł9.67 tax excl.
Shielded RJ45 connector with integrated magnetics (PulseJack – GigJack T12) designed for 10/100/1000Base-T applications. The JK0-0036NL integrates the Ethernet connector and isolation transformers into a single package, simplifying PCB design while ensuring stable data transmission and galvanic isolation in networking and industrial devices. Pulse Electronics JK0-0036NL
Description
The JK0-0036NL is an integrated RJ45 Ethernet connector with built-in magnetics from the PulseJack (GigJack T12) series by Pulse Electronics. Designed for Gigabit Ethernet applications, it combines the RJ45 interface and magnetic components in one housing, reducing external component count and simplifying PCB layout.
The connector is intended for through-hole (THT) PCB mounting and is widely used in networking equipment, routers, switches, industrial systems, and IoT devices requiring reliable 10/100/1000Base-T communication. The integrated magnetics provide galvanic isolation, impedance matching, and signal filtering in accordance with Ethernet standards, ensuring stable performance and reduced EMI.
The JK0-0036NL belongs to the GigJack T12 family and meets the requirements for high-bandwidth Ethernet applications, delivering signal integrity and electromagnetic interference suppression.
Features
- Connector type: RJ45 with integrated magnetics (PulseJack)
- Ethernet standard: 10/100/1000Base-T
- Number of ports: 1
- Mounting type: THT (through-hole)
- Shielding: Shielded
- Galvanic isolation: Integrated Ethernet transformers
- Applications: LAN networks, routers, switches, industrial devices, IoT
- Series: GigJack T12
- Manufacturer: Pulse Electronics
- Model: JK0-0036NL
