A versatile robotics controller based on the Raspberry Pi RP2350 processor that allows you to easily create mobile robots and control mechanisms. With a wide range of ports, including 4 DC motor channels, 8 servo ports, and 3 Maker Ports, it provides an excellent platform for robotics development, ideal for beginners and intermediate users. Cytron MOTION-2350-PRO
Description

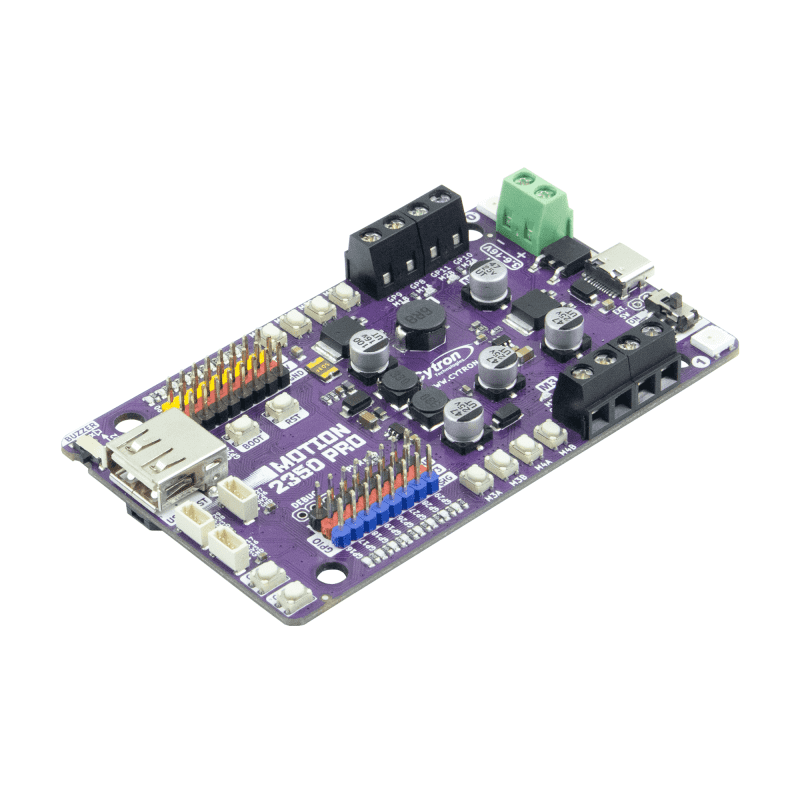

MOTION 2350 Pro is an advanced robotics controller designed by Cytron, utilizing the latest Raspberry Pi RP2350 processor. It is the perfect solution for beginners and intermediate users who want to create an advanced robot without the need for complicated electronics work. With its wide array of ports and advanced features, building mobile robots, controlling mechanisms, and integrating sensors is now even easier.
MOTION 2350 Pro supports up to 4 DC motors (3A max per channel, voltage from 3.6V to 16V), making it easy to build robots with mecanum wheels. Additionally, the device offers 8 servo ports, 8 GPIO inputs/outputs, and 3 Maker Ports for connecting a wide range of sensors and modules. Thanks to the built-in USB host port, you can directly connect a joystick or gamepad, enabling immediate readiness for control.
Cytron's characteristic "Maker features" simplify work – the PCB markings help with quick module connections, and the quick-test buttons and LEDs allow for immediate diagnostics without the need for programming. Additionally, the built-in buzzer and user buttons allow for fast functional testing. The controller is fully compatible with the Raspberry Pi Pico ecosystem, supporting Python (MicroPython, CircuitPython), C/C++, and Arduino IDE. Pre-loaded CircuitPython software allows for demo programs to run as soon as the device is connected via USB-C, enabling users to start working with the device immediately.
Features
- Microcontroller: Raspberry Pi RP2350 (Dual-core Arm Cortex-M33, 150MHz)
- Memory: 520KB RAM, 2MB Flash
- Power: VIN: 3.6V to 16V, USB-C: 5V
- Motor control: 4 x DC motor drivers (3A continuous, 5A peak)
- Inputs/Outputs: 8x 3V GPIO
- Servo support: 8 x 5V servo ports
- USB Host: support for joysticks and gamepads
- LEDs: 24 status indicators (for DC, GPIO, and servos)
- Buttons: 12 (8 test buttons, 2 user buttons, BOOT, RST)
- Additional features: buzzer with mute, 2x RGB LEDs (Neopixel)
- Software: CircuitPython, MicroPython, C/C++, Arduino
- Dimensions: 95.2 x 57.2 x 8 mm
Kit contains
- MOTION 2350 Pro
- STEMMA QT/Qwiic JST SH 4-pin cable (150mm)
- 2 x Grove to JST-SH cables (200mm)
- Set of silicone feet
- 4 x mounting screws
- Mini screwdriver
