USR-DR164 – RS485 to WiFi Dual Band (2.4G/5.8G) Converter with Modbus Gateway Function
search
  • USR-DR164 – RS485 to WiFi Dual Band (2.4G/5.8G) Converter with Modbus Gateway Function
ID: 1196235
zł59.90
Tax included

zł48.70 tax excl.

USR-DR164 is a compact RS485 ↔ WiFi converter supporting 2.4 GHz and 5.8 GHz bands with Modbus Gateway functionality, enabling easy integration of industrial devices with IoT networks and SCADA/PLC systems. Thanks to its robust industrial design, wide voltage and operating temperature range, and flexible configuration, it is suitable for industrial automation, smart buildings, energy, and logistics applications.

24h
Available
Available quantity: 10
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

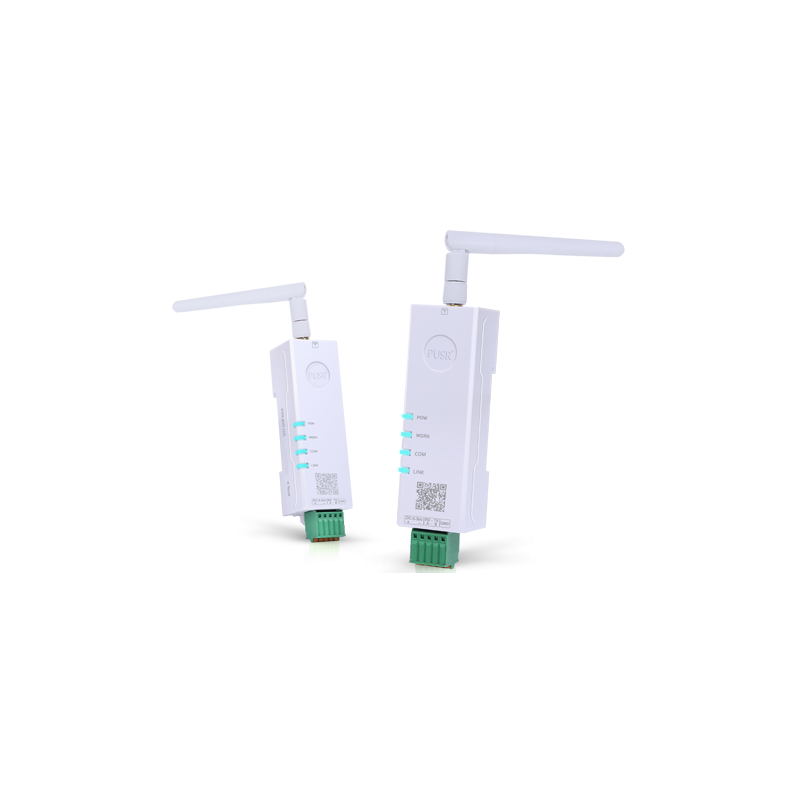

The USR-DR164 converter is a compact serial device server enabling bidirectional data transmission between RS485 devices and a WiFi network in 2.4 GHz and 5.8 GHz bands. The device supports IEEE 802.11 a/b/g/n standards, and with AP, STA, and AP+STA modes, it offers flexible adaptation to various network topologies. The built-in Modbus Gateway function provides Modbus RTU ↔ Modbus TCP protocol conversion, enabling integration with PLCs, SCADA systems, and industrial servers.

The “lipstick”-sized housing and DIN rail mounting make the module easy to install even in small control cabinets. Thanks to interference resistance and a wide operating temperature range, the device is suitable for industrial applications such as automation, logistics, energy, and smart buildings.

Properties

  • Serial interface: RS485
  • Bidirectional transmission: RS485 ↔ WiFi
  • Supported bands: WiFi 2.4 GHz and 5.8 GHz (Dual Band)
  • Transmission range: up to 200 m in open space (2.4 GHz)
  • Modbus Gateway protocol: Modbus RTU ↔ Modbus TCP, multi-host polling support
  • Network protocols: TCP, UDP, HTTP, MQTT, IGMP
  • WiFi operating modes: AP, STA, AP+STA (simultaneous dual-mode operation)
  • Configuration methods:
  • AT Commands (serial and network)
  • Built-in web page
  • Smart APlink APP mobile application
  • Power supply: DC 5–36 V (wide range)
  • Operating temperature: -40 °C … +85 °C (industrial grade)
  • Enclosure: DIN rail mounting, compact “lipstick” size
  • Safety features: dual watchdog (hardware and software), flame-retardant enclosure (UL94 V0)

Included

  • USR-DR164 converter
  • WiFi antenna
