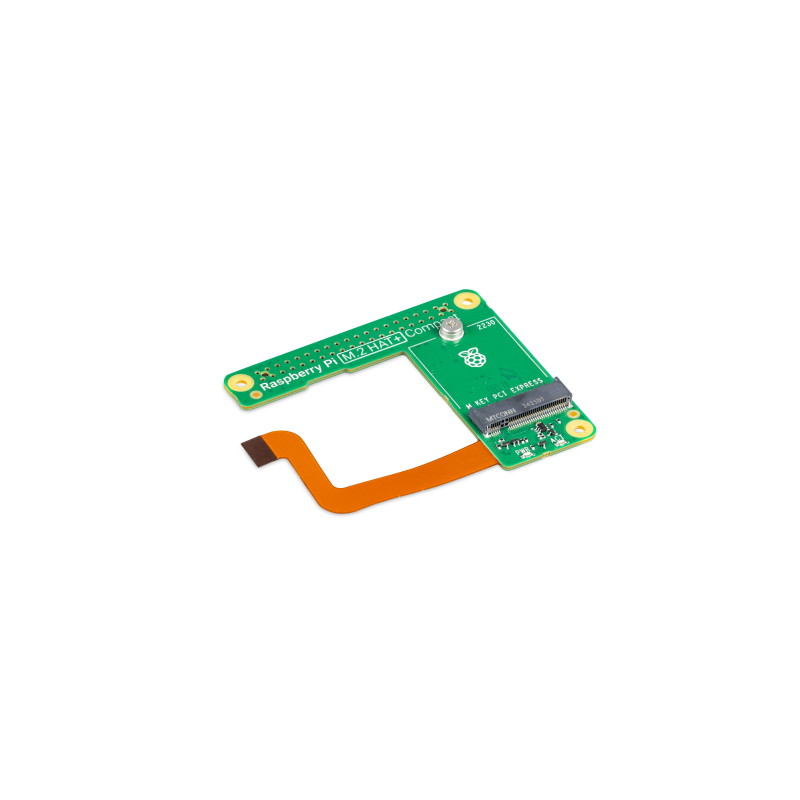

Raspberry Pi M.2 HAT+ (Compact) - miniature M.2 module for Raspberry Pi 5 (compact version)
ID: 1198425
5056561805863
zł68.90
Tax included
zł56.02 tax excl.
Raspberry Pi M.2 HAT+ in compact version enables expansion of the Raspberry Pi 5 with high-speed NVMe drives and other PCIe accessories in M.2 format. The standard version supports 2230 and 2242 formats, while the Compact version supports 2230 format with the option of installation in a dedicated case. The module increases the capabilities of the Raspberry Pi 5 in applications requiring high bandwidth and hardware flexibility. Raspberry SC1771
Description
The Raspberry Pi M.2 HAT+ in compact version enables connection of M.2 devices with PCIe interface, such as NVMe drives or AI accelerators, directly to the Raspberry Pi 5. The adapter uses a single-lane PCIe 2.0 available on the 16-pin (0.5 mm) FPC connector, providing data transfer up to 500 MB/s. It supports M-key devices in formats 2230 and 2242 (for the Standard version) and 2230 (for the Compact version). The module supplies up to 3 A current for connected devices and complies with the HAT+ specification.
The Standard version is equipped with a 16 mm stacking header and mounting hardware, allowing use with the Raspberry Pi 5 along with active cooling. The Compact version is designed for use inside the Raspberry Pi 5 case, maintaining space for the fan.
Properties
- Interface: PCIe 2.0 ×1 (up to 500 MB/s)
- Supported connector: M.2 M-key
- Supported device formats:
- M.2 HAT+ Standard: 2230, 2242
- M.2 HAT+ Compact: 2230
- Power supply: up to 3 A for connected devices
- LED indicators: power and activity
- Compliance: Raspberry Pi HAT+ specification
Set includes
- Raspberry Pi M.2 HAT+ (Compact)
- FPC cable
- 16 mm stacking header (Standard version)
- Threaded spacers and screws
- Double-flanged screw for mounting M.2 devices
1198425
Data sheet
- Compatible with
- Raspberry Pi 5
