PCIe-to-M.2 NVMe SSD HAT+ adapter for Raspberry Pi 5 with 256 GB bootable drive - Waveshare 27523
ID: 1196626
5902186321045
zł384.42
Tax included
zł312.54 tax excl.
The PCIe TO M.2 HAT+ Acce B kit with a 256 GB SSD expands the functionality of the Raspberry Pi 5 by providing fast data storage and the ability to boot the system from an NVMe drive. With high compatibility, built-in power monitoring, and a compact design, the kit is ideal for server projects, file systems, edge computing applications, and solutions requiring high read/write speeds.
Description

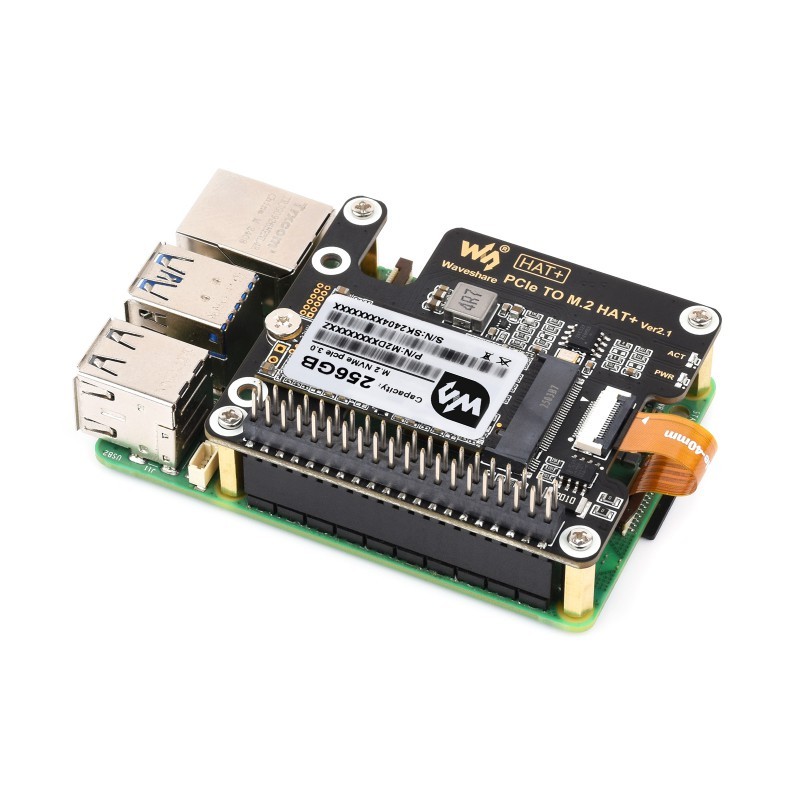

The PCIe TO M.2 HAT+ Acce B is an expansion module designed for the Raspberry Pi 5, enabling the installation of a 256 GB M.2 2242 NVMe SSD. The adapter connects via the 16PIN FFC interface, utilizing PCIe x1 Gen2/Gen3 for high-speed data transmission and allowing the operating system to boot directly from the SSD.
The board features an integrated EEPROM and power monitoring circuit, ensuring stable performance and smooth system integration. Two LED indicators provide real-time SSD activity feedback, and ventilation holes support optional active cooling to maintain optimal operating temperatures.
Features
- Compatibility: Raspberry Pi 5, PCIe x1 Gen2/Gen3 interface (16PIN FFC)

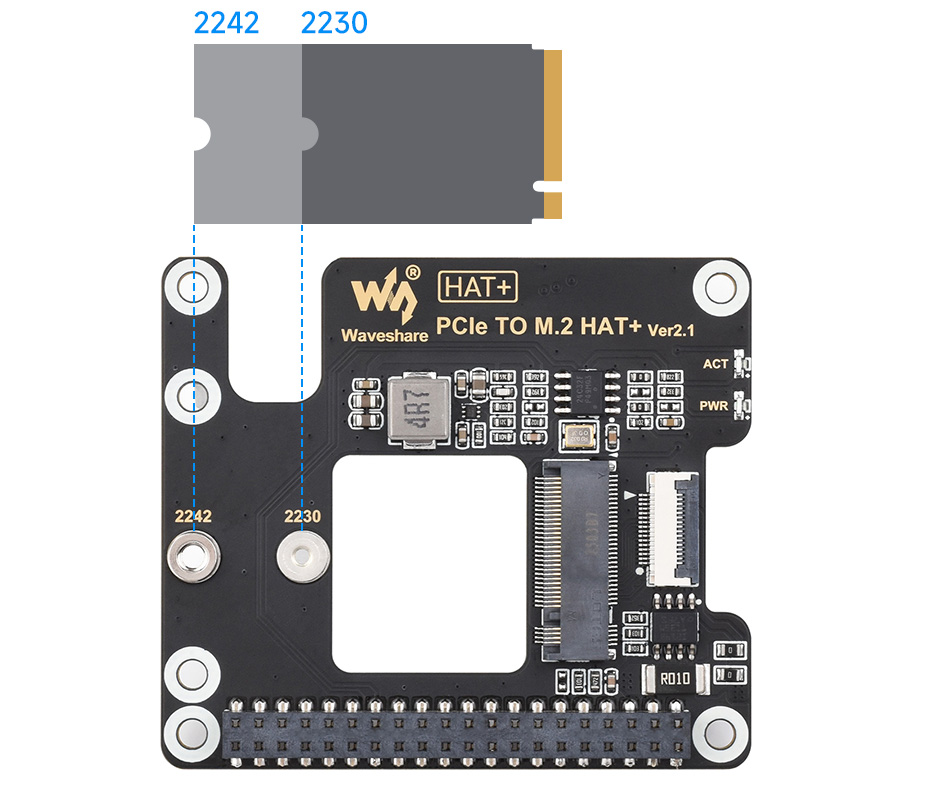

- Supports M.2 2230/2242 NVMe SSDs
- Enables Raspberry Pi 5 boot from SSD
- Integrated EEPROM and SSD power monitoring
- LED indicators for SSD activity status

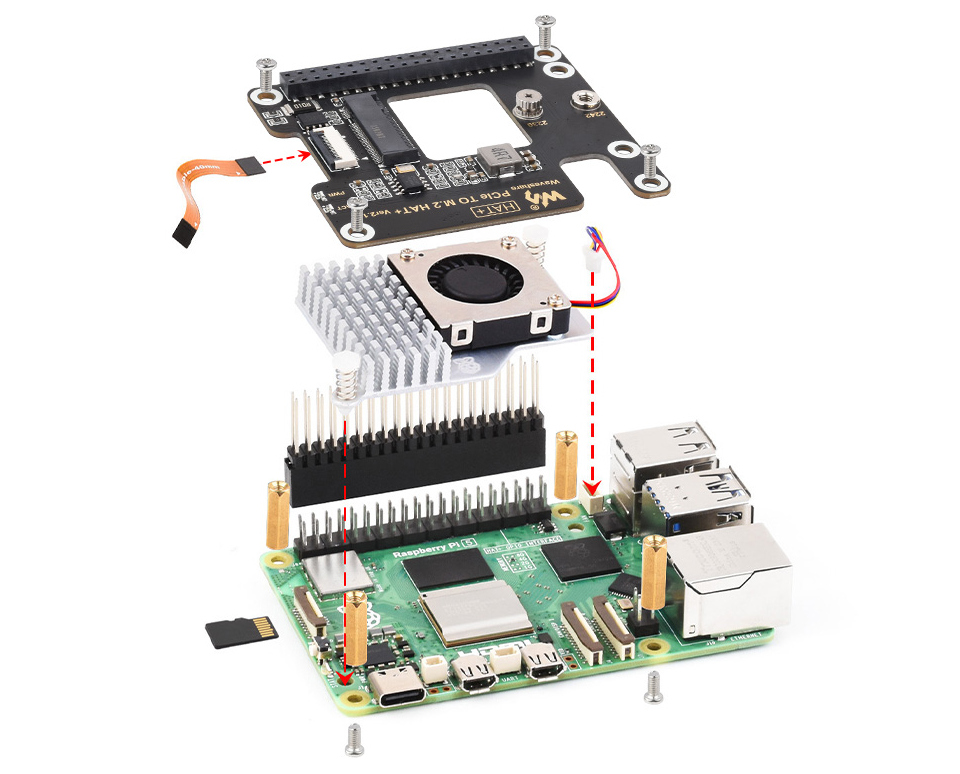

- HAT+ form factor with fan mounting holes
- Compact design, easy to integrate with Raspberry Pi 5

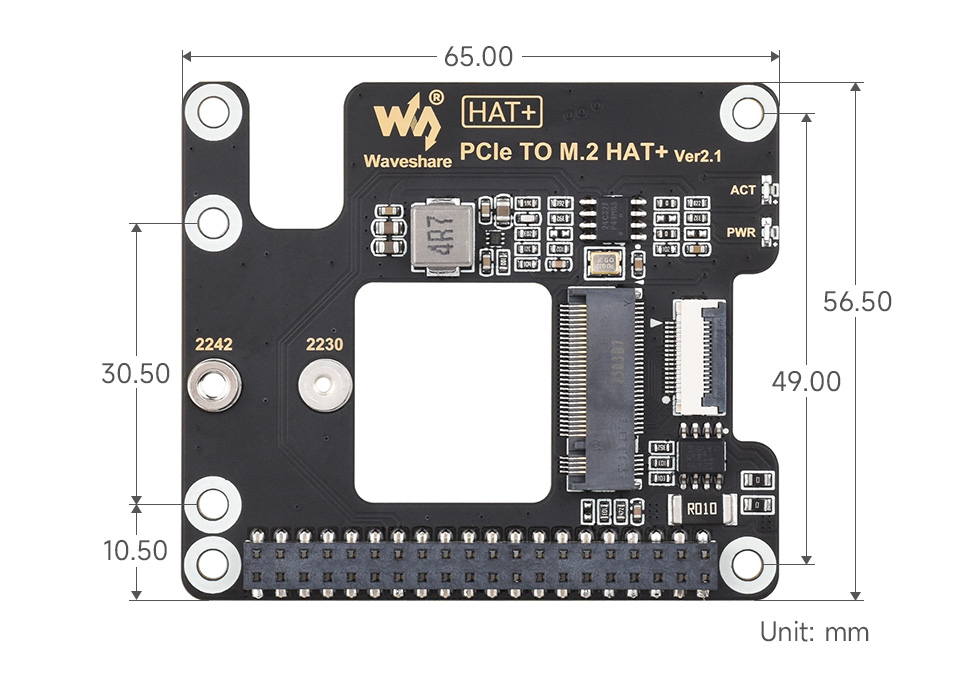

- Dimensions: 56 × 65.5 mm
Included
- PCIe TO M.2 HAT+ x1
- SK-NVME 2242 256 GB SSD x1
- 16PIN FFC cable (40 mm) x1
- Mounting spacer set x1
- 2×20 pin header x1
1196626
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
