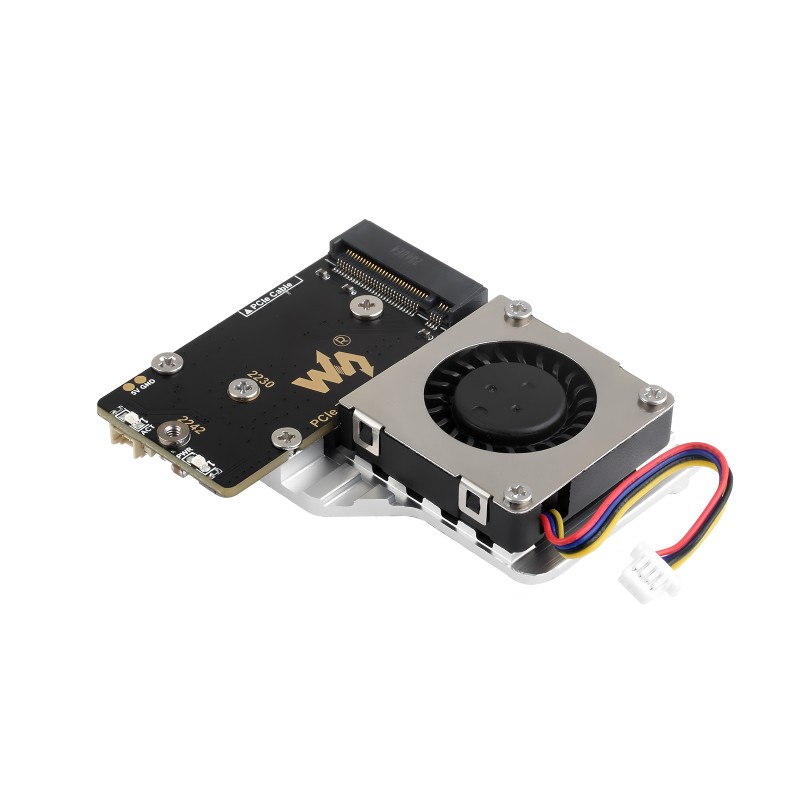

PCIe to M.2 (E) adapter with fan for Raspberry Pi 5 compatible with NVMe 2230/2242 - Waveshare 28013
ID: 1197408
5902186307223
zł53.46
Tax included
zł43.46 tax excl.
The PCIe to M.2 Board (E) adapter for Raspberry Pi 5 enables integration of high-speed NVMe M.2 drives and efficient cooling thanks to a PWM fan and heatsink. Its compact design, compatibility with 2230/2242 formats, and full integration with the Raspberry Pi 5 board make the module ideal for projects that require high disk performance and reliable operation.
Description
The PCIe to M.2 (Type E) adapter, designed specifically for the Raspberry Pi 5, allows connection of M.2 SSDs compatible with the NVMe protocol in 2230 and 2242 formats. It supports PCIe Gen2/3 interface, offering data transfer rates of up to 8 Gbps, significantly increasing read/write speeds and enabling system boot directly from the SSD. The integrated aluminum heatsink and PWM-controlled fan (8000 RPM, max airflow 1.39 CFM) provide efficient cooling, suitable for heavy workloads. The form factor and mounting hole layout are tailored to fit the Raspberry Pi 5. The module connects to the base board via a 16-pin PCIe cable.
Specifications
- Compatibility: Raspberry Pi 5
- Supported SSD formats: M.2 2230, 2242
- Interface: PCIe Gen2 / Gen3
- Protocol: NVMe only
- Data transfer rate: up to 8 Gbps
- SSD boot support: yes
- Cooling: active (heatsink + PWM fan)
- Fan speed: 8000 ±10% RPM
- Airflow: 1.39 CFM
- Material: anodized aluminum
- Fan power supply: 5 V DC via Raspberry Pi 5 4-pin fan connector
- LED indicators: 2 (operating status)
Included
- PCIe to M.2 Board (E) x1
- MX1.25 2PIN cable x1
- Thermal pads (3 pcs) x1
- Mounting screw set x1
1197408
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
