PoE M.2 HAT+ (B) PCIe to M.2 NVMe with PoE for Raspberry Pi 5 - Waveshare 29320
ID: 1197486
5902186307391
zł91.39
Tax included
zł74.30 tax excl.

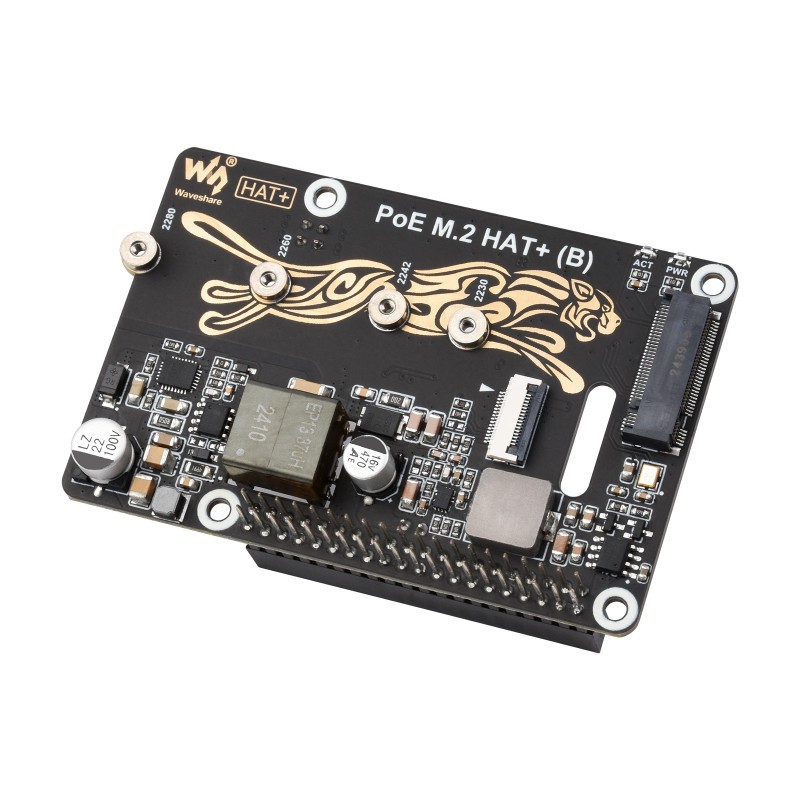

PoE M.2 HAT+ (B) is a practical add-on board for Raspberry Pi 5 that enables simultaneous power over Ethernet and installation of a high-performance NVMe SSD. With boot support from the SSD and additional power output terminals, this module is ideal for projects requiring fast storage and reliable power supply, such as servers, surveillance systems, or IoT gateways.
Description
The PCIe M.2 HAT+ (B) expansion enables connection of an NVMe SSD to the Raspberry Pi 5 while simultaneously powering the device via PoE (Power over Ethernet) compliant with IEEE 802.3af/at. The adapter uses the 16-pin PCIe connector on the Raspberry Pi 5 and a standard 40-pin GPIO header, allowing parallel use of other HAT add-ons. It supports both Gen2 and Gen3 protocols, allows system boot from the SSD, and is compatible with 2230, 2242, 2260, and 2280 SSD formats. Power over Ethernet enables data and power transmission through a single cable, simplifying network integration. The board also features LED indicators for monitoring status and additional 5 V and 12 V power outputs for external peripherals.
Features
- Supports NVMe-compatible M.2 SSDs (2230 / 2242 / 2260 / 2280 formats)
- IEEE 802.3af/at PoE standard support
- PoE input voltage: 37 V – 57 V DC
- Power output: 5 V 4.5 A (GPIO), 12 V 2 A (2-pin header)
- PCIe Gen2 / Gen3 support, boot from SSD possible
- 16-pin PCIe connector for Raspberry Pi 5
- Power output terminals for external devices (5 V and 12 V)
- Dual LED indicators showing operating status
- High-quality gold immersion finish
- Dimensions: 56.0 × 85.0 mm
Included
- PoE M.2 HAT+ (B)
- 16-pin PCIe cable
- SSD mounting screw
- Set of mounting screws
1197486
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
