This development board with a microSD slot is ideal for data logging in measurement and IoT projects. Equipped with USB-C, a Li-Po charger, and a STEMMA QT connector, it's ideal for portable devices requiring easy expansion with I2C sensors. A powerful RP2040 microcontroller with 8MB of Flash and a rich GPIO set ensures high performance and a wide range of applications. Adafruit 5980

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

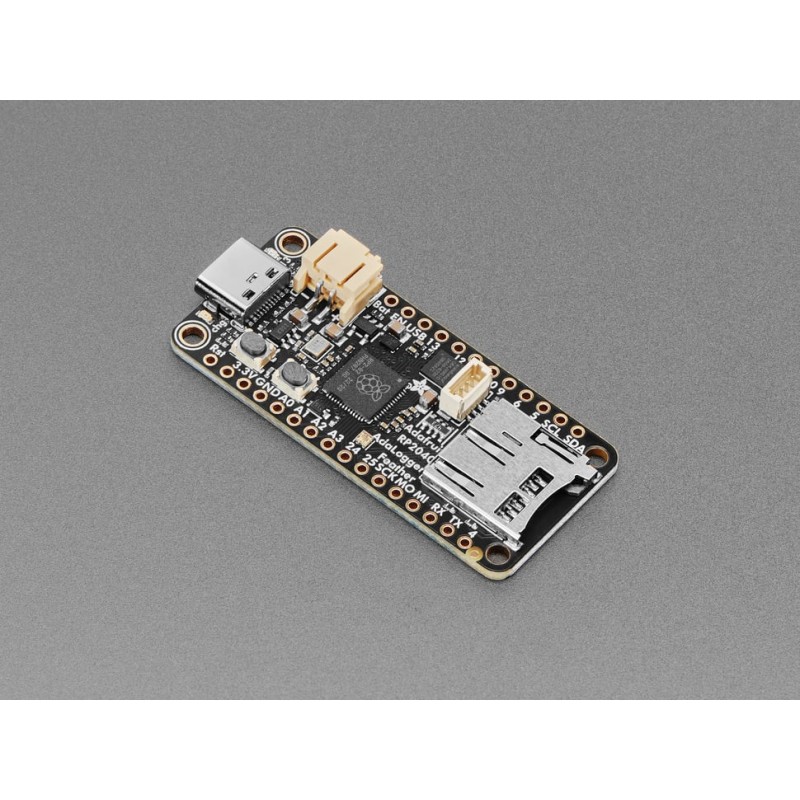

Feather RP2040 Adalogger is a versatile platform for data logging and data retrieval, combining the capabilities of the RP2040 microcontroller with the convenience of the Feather system. Equipped with a microSD card slot, it enables fast and easy recording of large amounts of data in measurement, IoT, or mobile projects. Thanks to the built-in USB Type-C port and Li-Po battery charger, the module is perfect for portable applications, automatically switching between battery and USB power. The board also includes a STEMMA QT/Qwiic connector for quick, solder-free connection of I2C sensors and modules.


The heart of the device is the RP2040 microcontroller with a dual-core ARM Cortex-M0+ processor clocked at 133 MHz, providing strong performance and 8 MB of Flash memory. The presence of a built-in NeoPixel RGB LED and a red status LED allows convenient signaling of operating states. The module offers a rich set of GPIOs, including 4 ADC inputs, numerous communication interfaces, and 16 PWM channels. With full compatibility with the Feather ecosystem, the board works seamlessly with FeatherWing add-ons, enabling rapid project expansion. It supports Arduino, CircuitPython, and MicroPython, greatly simplifying development. With a solid design, low weight, and integrated power management, the Feather RP2040 Adalogger is an excellent choice for hobbyists, engineers, and data-logging system creators.

Features

  • RP2040 microcontroller, ARM Cortex-M0+ dual-core, 133 MHz
  • 264 KB RAM
  • 8 MB QSPI Flash memory
  • microSD slot supporting SPI and optional SDIO
  • STEMMA QT/Qwiic connector for I2C devices
  • Built-in 3.7 V Li-Po charger with charge-status LED
  • USB Type-C port with bootloader and serial communication support
  • 21 GPIO pins, including 4 ADC inputs, 16 PWM channels, 2× I2C, 2× SPI, 2× UART
  • RGB NeoPixel and LED on pin 13
  • 3.3 V / 500 mA voltage regulator
  • Dimensions: 52.1 × 23.0 × 7.2 mm
  • Weight: 5.6 g

Kit contains

  • Adafruit Feather RP2040 Adalogger board
  • Header set
1202039

Data sheet

Microcontroller
RP2040
Flash memory
8 MB
Number of I/O
21
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes
Length
52,1 mm
Width
23 mm
USB connector type
USB type C
