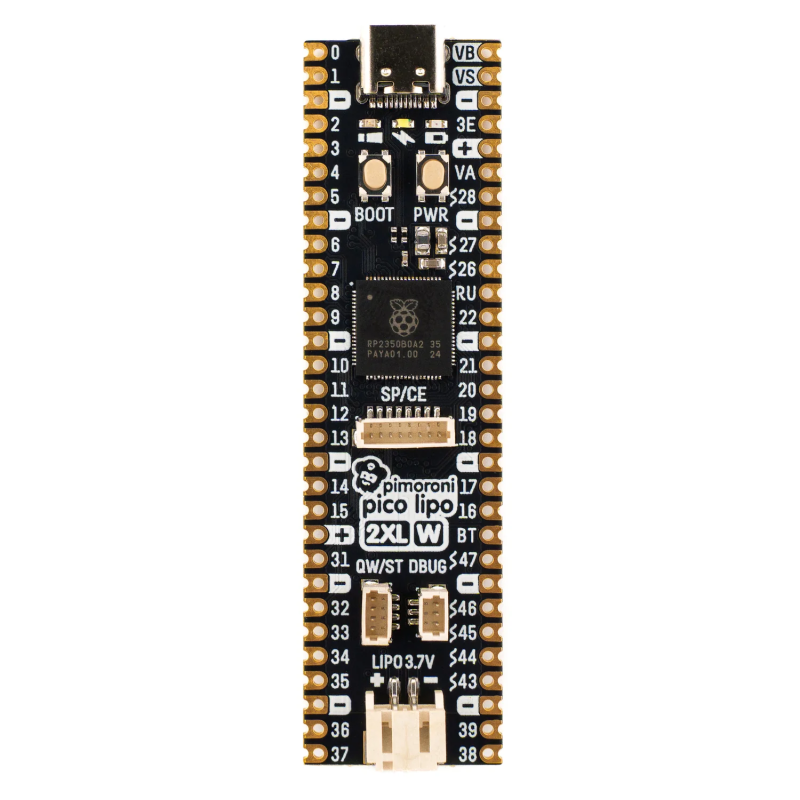

Pimoroni Pico LiPo 2 XL W development board – RP2350B, 16MB Flash, 8MB PSRAM, Wireless/Bluetooth, USB-C, LiPo – PIM776
ID: 1202072
zł153.64
Tax included
zł124.91 tax excl.
Pimoroni Pico LiPo 2 XL W PIM776 is an extended development board with the RP2350B, offering Wi-Fi and Bluetooth connectivity, 16 MB of flash memory and 8 MB of PSRAM. Thanks to its 40 GPIO pins, integrated LiPo charging system and numerous interfaces, it works well in advanced IoT projects and battery-powered systems.
Description
An extended version of the development board with the RP2350B microcontroller, equipped with the Raspberry Pi Radio Module 2 providing 2.4 GHz wireless and Bluetooth connectivity. Integrated LiPo/Li-Ion battery support with the MCP73831 charging system and XB6096I2S protection enables direct battery power and charging via USB-C. The board includes 16 MB of QSPI flash memory, 8 MB of PSRAM, POWER and BOOT buttons, LEDs indicating power and charging status, and a JST PH connector for attaching a battery.
The board offers 40 GPIO pins arranged in two rows of 30 pins, making it suitable for more complex projects. The Qw/ST connector simplifies connecting I2C modules, the SP/CE connector enables SPI/UART communication, and the 3-pin JST-SH debugging connector provides access to the SWD interface. Compatibility with Raspberry Pi Pico add-ons requires placing them near the USB port due to the extended board design.
Properties
- RP2350B chip (Dual Arm Cortex M33, up to 150 MHz, 520 KB SRAM)
- 16 MB QSPI flash memory with XiP support
- 8 MB PSRAM
- Raspberry Pi Radio Module 2 (2.4 GHz Wi-Fi and Bluetooth)
- MCP73831 charging system, 215 mA charging current
- XB6096I2S battery protection
- USB-C connector for power, programming and data transmission
- Qw/ST connector (Qwiic/STEMMA QT) for I2C devices
- SP/CE connector for SPI/UART devices
- 3-pin JST-SH debugging connector (SWD)
- BOOT button (user function and DFU)
- POWER button for power management
- LEDs: power, charging, user
- Built-in 3.3 V regulator (maximum current output 600 mA)
- Supply voltage range: 3 V – 5.5 V
- JST PH 2-pin battery connector with marked polarity
- Two 30-pin rows, 40 GPIO total
- Compatibility with Raspberry Pi Pico extensions (on the USB side)
1202072
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 40
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 77 mm
- Width
- 21 mm
- USB connector type
- USB type C
