RP2350 MCU board with 1.28″ round LCD 240×240 - Waveshare 28986
ID: 1197465
5902186307322
zł59.15
Tax included
zł48.09 tax excl.
RP2350-LCD-1.28 is an advanced, compact development module with a color LCD display and a rich set of interfaces, designed for embedded projects that require efficient graphics handling and communication. Thanks to its dual processor architectures and programmable peripheral resources, the module is suitable for use in smart devices, HMI systems, and next-generation IoT solutions.
Description

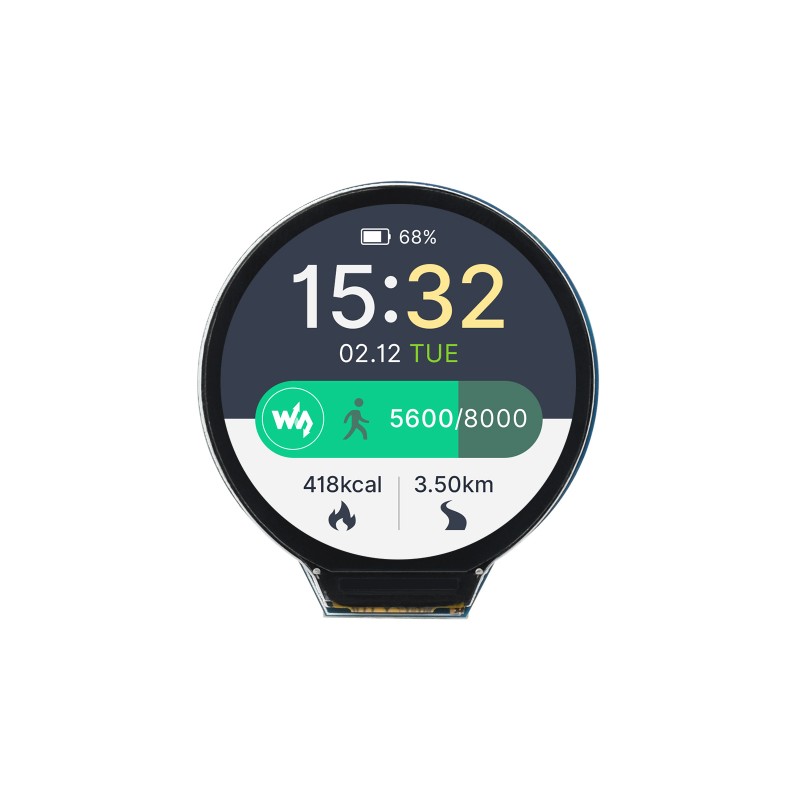

RP2350-LCD-1.28 is a compact development module based on the RP2350 microcontroller designed by Raspberry Pi, combining the ARM Cortex-M33 architecture with the open RISC-V Hazard3 standard. The board features a 1.28-inch color LCD with a resolution of 240×240 pixels, an IMU sensor (accelerometer and gyroscope), a Li-Ion battery charging circuit, and 30 multifunction GPIO pins.
The device supports drag-and-drop programming via USB Type-C and offers UART, SPI, I2C, ADC, and PWM interfaces. The board's design allows direct integration into user devices, and the inclusion of 12 PIO state machines enables the creation of custom peripherals. It is suited for low-power operation modes and is supported by C/C++ and MicroPython libraries.
Features
- Microcontroller: RP2350 – 2× ARM Cortex-M33 + 2× Hazard3 RISC-V, up to 150 MHz
- Memory: 520 KB SRAM, 4 MB NOR Flash (P25Q32SH-UXH-IR)
- Display: 1.28” IPS, 240×240, 65K colors (non-touch)
- Sensors: QMI8658 (6DOF IMU), temperature sensor
- Interfaces: 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 24× PWM, 12× PIO
- Programming: USB 1.1 (host/device), drag-and-drop
- Power supply: USB Type-C, MX1.25 connector (3.7 V Li-Ion battery)
- GPIO: 30 pins via 1.27 mm female header (partially shared with internal circuits)
- Sleep and low-power operation modes
- Supported languages: C/C++ and MicroPython
- No enclosure – designed for embedded integration and prototyping
1197465
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 30
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- Inny
- Width
- Inna
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
