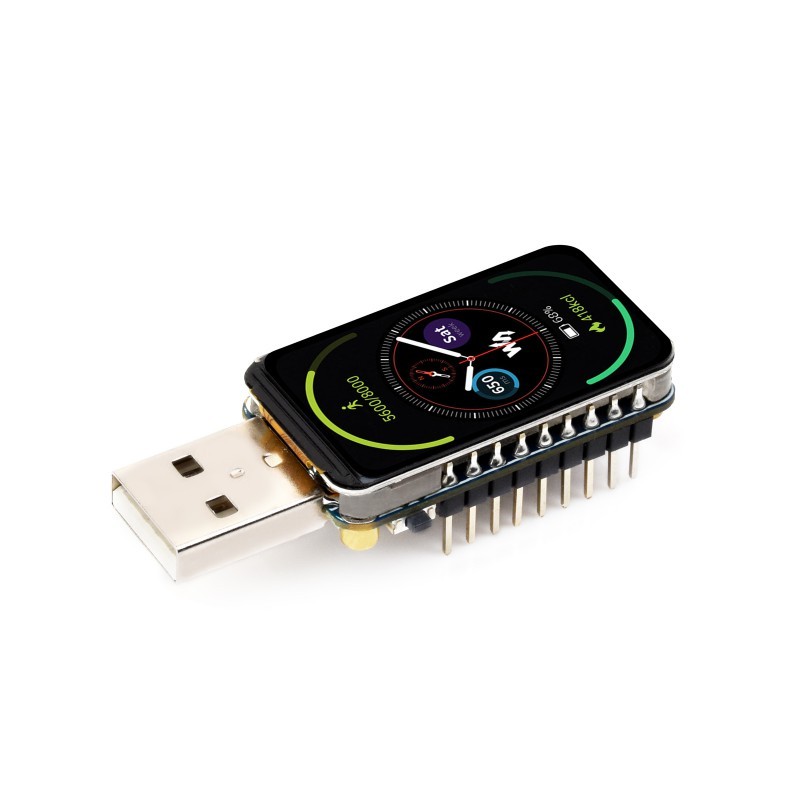

RP2350 development board with 1.47″ display, USB-A port, and soldered connector - Waveshare 31160
ID: 1197762
5902186303768
zł51.14
Tax included
zł41.58 tax excl.
RP2350-LCD-1.47-B-M is an advanced yet compact development board designed to work with the RP2350A microcontroller. The integrated LCD display, USB Type-A port, TF card slot, and pre-soldered headers facilitate quick setup and easy integration into various projects. The dual architecture (ARM and RISC-V) provides great flexibility for learning and testing embedded applications, control systems, and IoT devices.
Description
The RP2350-LCD-1.47-B-M development module is based on the RP2350A microcontroller designed by Raspberry Pi. It features a 1.47" color LCD with a resolution of 172×320 pixels and support for 262K colors. With its unique dual-core and dual-architecture design—Cortex-M33 and Hazard3 RISC-V—the chip enables flexible project development using both ARM and RISC-V platforms. The module includes a USB Type-A connector, pre-soldered pin headers, a TF card slot, 16 MB Flash memory, and a programmable RGB LED. Compatibility with C/C++, MicroPython, and Arduino IDE makes it a versatile tool for embedded systems prototyping.
Specifications
- Microcontroller: RP2350A, dual-core Cortex-M33 + dual-core Hazard3 RISC-V, 150 MHz
- Memory: 520 KB SRAM, 16 MB NOR Flash (W25Q128JVSIQ)
- Display: 1.47" LCD, 172×320, 262K colors\
- USB connector: Type-A, USB 1.1 (host/device)
- Card slot: TF
- BOOT and RESET buttons
- Built-in RGB LED with acrylic panel
- Power and programming via USB Type-A
- Low power support (sleep/dormant modes)
- Supported environments: C/C++, MicroPython, Arduino IDE
- Dimensions: compact format for easy integration
Included
- RP2350-LCD-1.47-B module with pre-soldered headers x1
1197762
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Other products in the same category (16)
Module with RP2350B microcontroller, clock speed up to 150 MHz, 2 MB PSRAM, 16 MB Flash, 48 GPIO, 2.54 mm pitch, includes USB adapter and FPC cable, dimensions 25.40 x 25.40 mm. Waveshare Core2350B1-Kit
zł30.53
24h
Available quantity: 2
Available
Module with RP2350B microcontroller, clock speed up to 150 MHz, 2 MB PSRAM, 16 MB Flash, 48 GPIO, 2.54 mm pitch, compact size 25.40 x 25.40 mm. Waveshare Core2350B1
zł27.05
24h
Available quantity: 4
Available
Module with RP2350B microcontroller, clock speed up to 150 MHz, 0 MB PSRAM, 16 MB Flash, 48 GPIO, 2.54 mm pitch, includes USB adapter and FPC cable, dimensions 25.40 x 25.40 mm. Waveshare Core2350B0-Kit
zł27.05
24h
Available quantity: 4
Available
Module with RP2350B microcontroller, clock speed up to 150 MHz, 0 MB PSRAM, 16 MB Flash, 48 GPIO, 2.54 mm pitch, compact size 25.40 x 25.40 mm. Waveshare Core2350B0
zł24.46
24h
Available quantity: 5
Available
Development board with RP2350B microcontroller, 2.41" AMOLED touch display, 450 x 600 px resolution, QSPI interface, 6-axis sensor, RTC, TF card slot and Li-ion battery connector, version with protective case. Waveshare RP2350-Touch-AMOLED-2.41-B
zł250.78
6 weeks
No product available!
Development board with RP2350B microcontroller, 2.41" AMOLED touch display, 450 x 600 px resolution, QSPI interface, 6-axis sensor, RTC, TF card slot and Li-ion battery connector, version without protective case. Waveshare RP2350-Touch-AMOLED-2.41
zł230.69
6 weeks
No product available!
Development board with RP2350B microcontroller, equipped with a 3.5" IPS display with 320 x 480 px resolution, capacitive touch panel, camera interface, audio codec, IMU sensor, microSD slot and USB Type-C, enclosed with OV5640 camera. Waveshare RP2350-Touch-LCD-3.5-C
zł150.44
6 weeks
No product available!
Development board with RP2350B microcontroller, equipped with a 3.5" IPS display with 320 x 480 px resolution, capacitive touch panel, camera interface, audio codec, IMU sensor, microSD slot and USB Type-C. Waveshare RP2350-Touch-LCD-3.5
zł119.35
6 weeks
No product available!
Development board with RP2350A microcontroller, 1.54" IPS touch LCD 240 x 240 px, USB-C interface, IMU module, microSD slot and 3.7 V battery included. Waveshare 34333
zł85.96
24h
Available quantity: 5
Available
Development board with RP2350A microcontroller, 1.54" IPS touch LCD 240 x 240 px, USB-C interface, IMU module, microSD slot. No 3.7 V battery included. Waveshare 34332
zł79.85
24h
Available quantity: 5
Available
Development board with RP2350A microcontroller, 1.54" IPS LCD 240 x 240 px, USB-C interface, IMU module and microSD slot. No 3.7 V battery included. Waveshare 34334
zł62.21
24h
Available quantity: 3
Available
Development board with RP2350A microcontroller, 1.54" IPS LCD 240 x 240 px, USB-C interface, IMU module, microSD slot and 3.7 V battery included. Waveshare 34335
zł68.22
24h
Available quantity: 3
Available
Development board based on the RP2040 microcontroller combines a dual-core Arm Cortex-M0+ processor with the W6300 Ethernet controller featuring a hardware TCP/IP stack and native IPv4/IPv6 support. The board maintains compatibility with Raspberry Pi Pico while adding a 10/100 Mb/s Ethernet interface with an RJ45 connector and optional Power over Ethernet support using the WIZPoE-P1 module. It is designed for IoT applications, industrial automation, network communication systems, and embedded devices requiring reliable wired Ethernet connectivity. WIZnet W6300-EVB-Pico
zł61.66
24h
Available quantity: 20
Available
WIZnet W6100-EVB-Pico2 - development board with RP2350 microcontroller and W6100 Ethernet controller
Development board based on the RP2350 microcontroller combines a dual-core Arm Cortex-M33 processor with the W6100 Ethernet controller featuring a hardware TCP/IP stack and native IPv4/IPv6 support. The board maintains compatibility with Raspberry Pi Pico 2 while adding a 10/100 Mb/s Ethernet interface with an RJ45 connector and optional Power over Ethernet support using the WIZPoE-P1 module. It is designed for IoT applications, industrial automation, network communication systems, and embedded devices requiring reliable wired Ethernet connectivity. WIZnet W6100-EVB-Pico2
zł61.66
24h
Available quantity: 14
Available

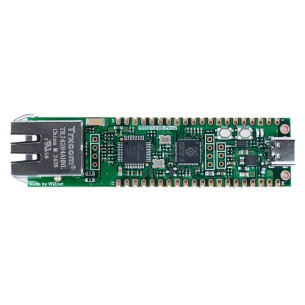

WIZnet W5500-EVB-Pico2 - development board with RP2350 microcontroller and W5500 Ethernet controller
