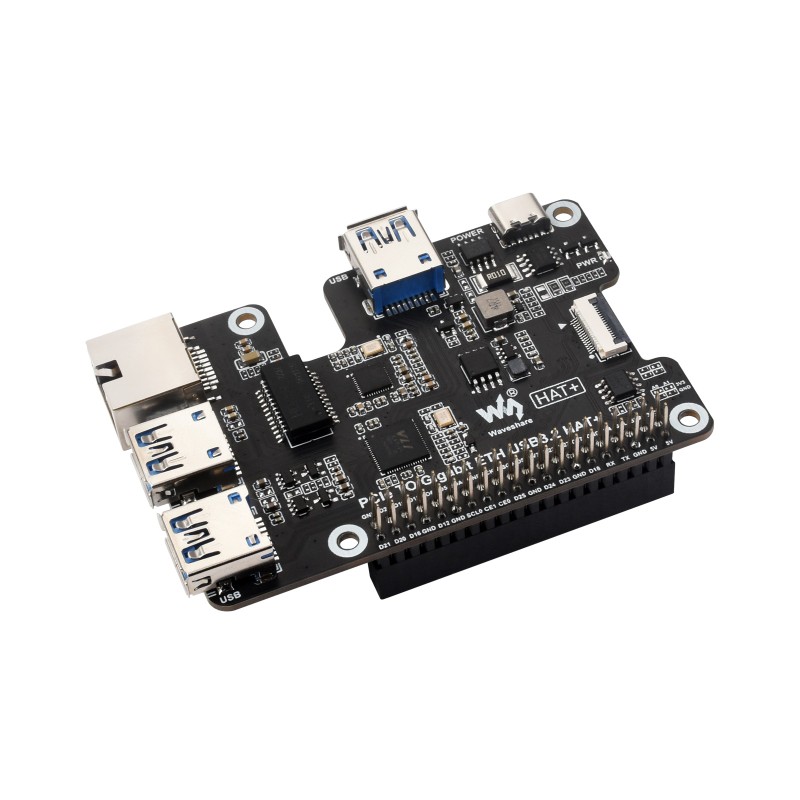

PCIe-to-Gigabit Ethernet USB3.2 HAT+ for Raspberry Pi 5 - Waveshare 27541
ID: 1196619
5902186305588
zł112.56
Tax included
zł91.51 tax excl.
The PCIe Expansion HAT+ for Gigabit ETH USB3.2 allows the Raspberry Pi 5 to be extended with three high-speed USB 3.2 Gen1 ports and one Gigabit Ethernet connector, using the 16-pin PCIe interface. The device operates without the need for driver installation and offers full support for popular Linux systems. Thanks to additional features such as power monitoring and USB port power control, the module is ideal for advanced networking projects, home servers, and expanded workstations based on the Raspberry Pi 5.
Description
The PCIe To Gigabit ETH USB3.2 HAT+ expansion board enhances the capabilities of the Raspberry Pi 5 by providing three additional USB 3.2 Gen1 ports and one Gigabit Ethernet port. The module uses the 16-pin PCIe connector located on the Raspberry Pi 5 board and requires no driver installation – it works plug and play with Raspberry Pi OS, Ubuntu, and OpenWRT systems. With the use of VL805 and RTL8153B chips, it ensures high data throughput and stable network transmission. The board also features an INA219 power monitoring chip and an EEPROM containing HAT identification data. The module allows software-based power control of USB ports and is designed for external power via a USB Type-C connector.
Features
- 3× USB 3.2 Gen1 ports
- 1× Gigabit Ethernet port (up to 1000 Mbps, compatible with 100 Mbps)
- VL805 chip – PCIe to USB 3.2 Gen1
- RTL8153B chip – USB to Gigabit Ethernet
- INA219 chip – power monitoring
- EEPROM – stores HAT identification data
- 16-pin PCIe connector for Raspberry Pi 5
- GPIO connector for connection with Raspberry Pi 5
- USB Type-C power port (5 V DC)
- Power LED (PWR LED)
- Compatibility: Raspberry Pi OS, Ubuntu, OpenWRT
- Dimensions: 85 × 56.5 mm
Included
- PCIe To Gigabit ETH USB3.2 HAT+ ×1
- Ethernet cable (~1.5 m) ×1
- 16-pin cable (40 mm) ×1
- Spacer set ×1
1196619
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
