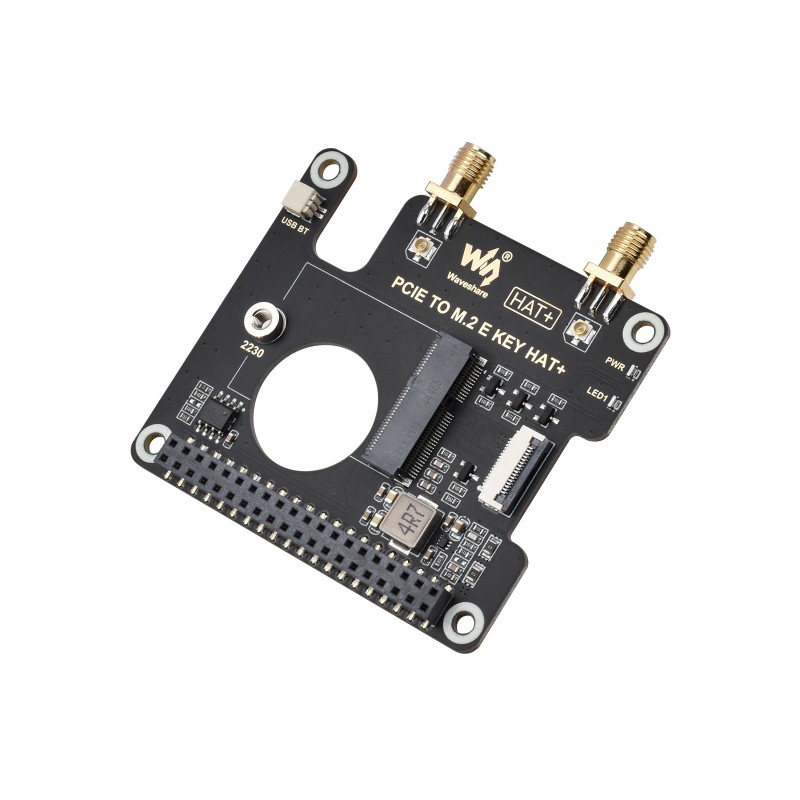

PCIe HAT+ adapter to M.2 E Key for Raspberry Pi 5 - Waveshare 30134
ID: 1197661
5902186305014
zł37.36
Tax included
zł30.37 tax excl.
PCIe To M.2 E KEY HAT+ adapter expands the capabilities of the Raspberry Pi 5 with support for high-speed Wi-Fi/Bluetooth network cards in M.2 E Key format. It supports direct PCIe connection and Bluetooth integration via USB. Robust antenna connectors and compliance with the HAT+ standard make it an ideal solution for IoT projects, network gateways, and compact routers based on the Raspberry Pi 5.
Description
The PCIe To M.2 E KEY HAT+ adapter enables the expansion of the Raspberry Pi 5 with NGFF (M.2) network modules with E or A/E key, compliant with the HAT+ standard and the Raspberry Pi 5 PCIe interface. The adapter allows for the installation of Wi-Fi cards that also support Bluetooth, transmitting the BT signal via the USB interface to the Raspberry Pi. Integrated female SMA antenna connectors facilitate the connection of external antennas to improve signal range and quality. Designed for direct mounting on the 16-pin PCIe connector of the Raspberry Pi 5.
Features
- Compatibility with Raspberry Pi 5 (16-pin PCIe interface)
- Supports NGFF (M.2) network cards with E and A/E key
- Capability to transmit Bluetooth signal to Raspberry Pi via USB connector
- Female SMA antenna connectors for connecting external antennas
- Compliance with HAT+ standard
- Power and communication with Raspberry Pi via dedicated 16-pin cable
- Compact size and mounting holes for easy integration
Included
- PCIe To M.2 E KEY HAT+ x1
- 2×20 goldpin header x1
- IPEX 1 to IPEX 4 cable ~6 cm (2 pcs) x1
- Type-A to SH1.0 2Pin cable x1
- 16P-Cable-40mm x1
- Mounting screw set x1
1197661
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
