HAT expansion board designed to split the single PCIe interface of the Raspberry Pi 5 into four PCIe FFC connectors, enabling simultaneous connection and stacking of multiple PCIe HATs. Waveshare PCIe TO 4-CH PCIe HAT

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

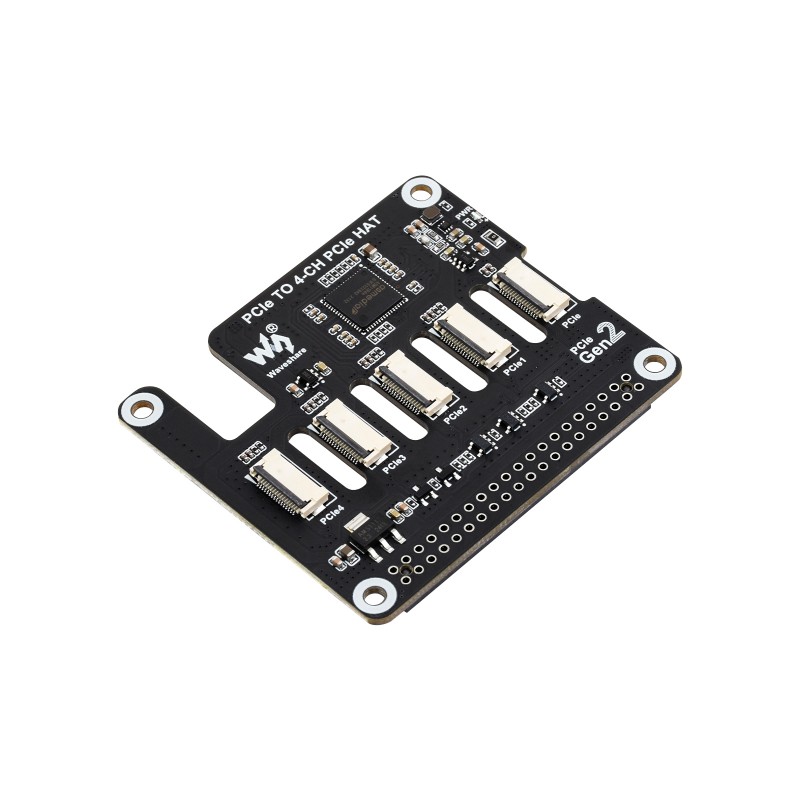

The PCIe TO 4-CH PCIe HAT expansion board is designed for use with Raspberry Pi 5 and allows the built-in PCIe interface to be divided into four channels exposed via FFC connectors. Connection to the Raspberry Pi 5 is made using a 16-pin PCIe cable compatible with the native PCIe interface of the board.


The solution supports PCIe Gen2 (PCIe 2.0) transmission and is intended for system expansion with multiple PCIe HATs, including communication modules, storage devices, or network extensions. The design supports flexible configuration and stacked mounting, which simplifies the development of compact prototype and industrial systems.

The board integrates a power monitoring circuit and EEPROM memory, while the included heatsink improves thermal dissipation in higher-load configurations. A set of standoffs enables stable mechanical mounting in various installation scenarios.

Features

  • Base interface: Raspberry Pi 5 PCIe (16-pin)

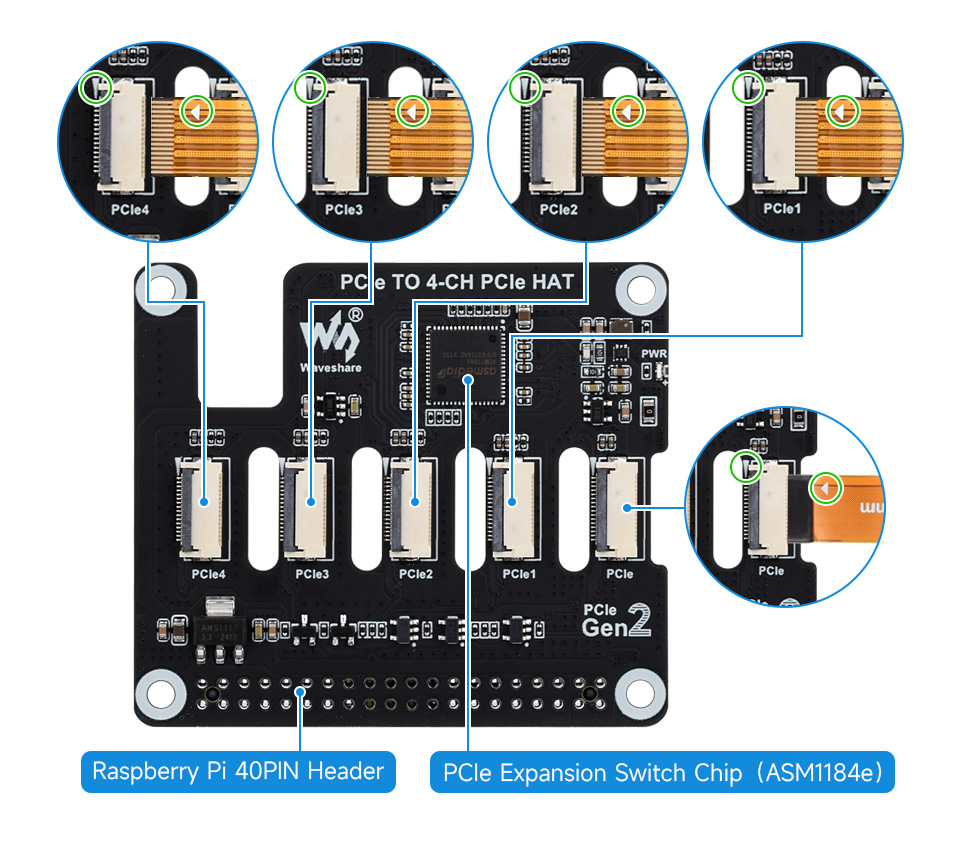

  • Number of PCIe outputs: 4 × PCIe FFC
  • PCIe standard: PCIe Gen2 (PCIe 2.0)

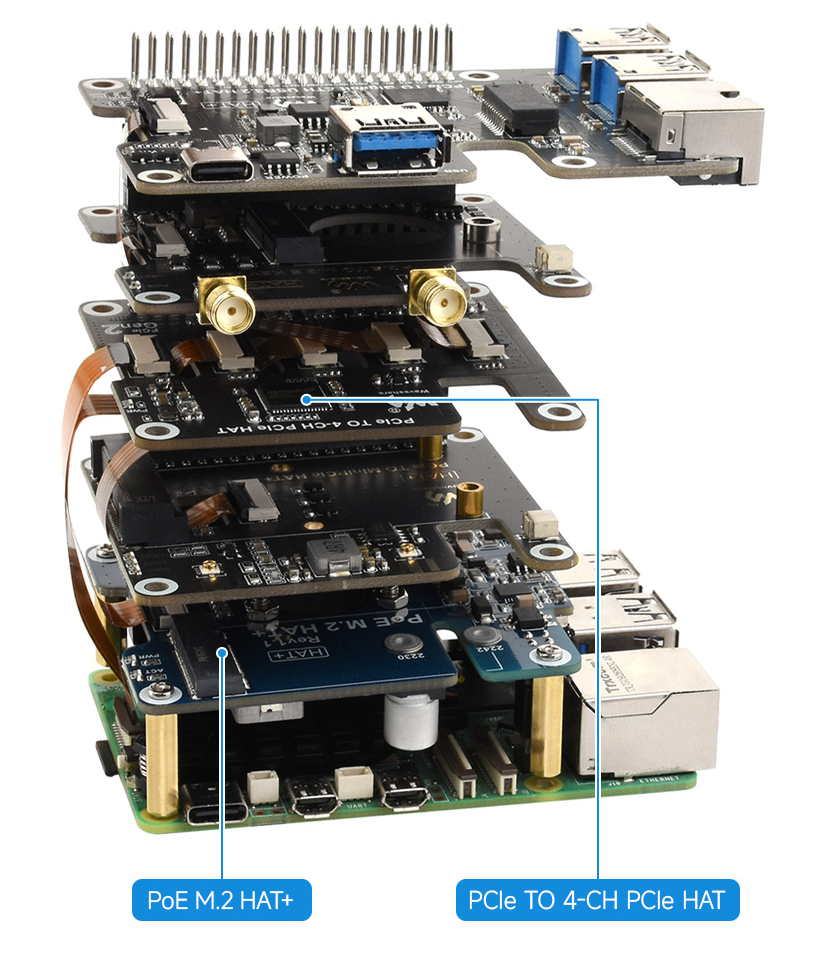

  • Stacking support: yes, multiple PCIe HATs supported
  • Onboard components: power monitoring circuit, EEPROM

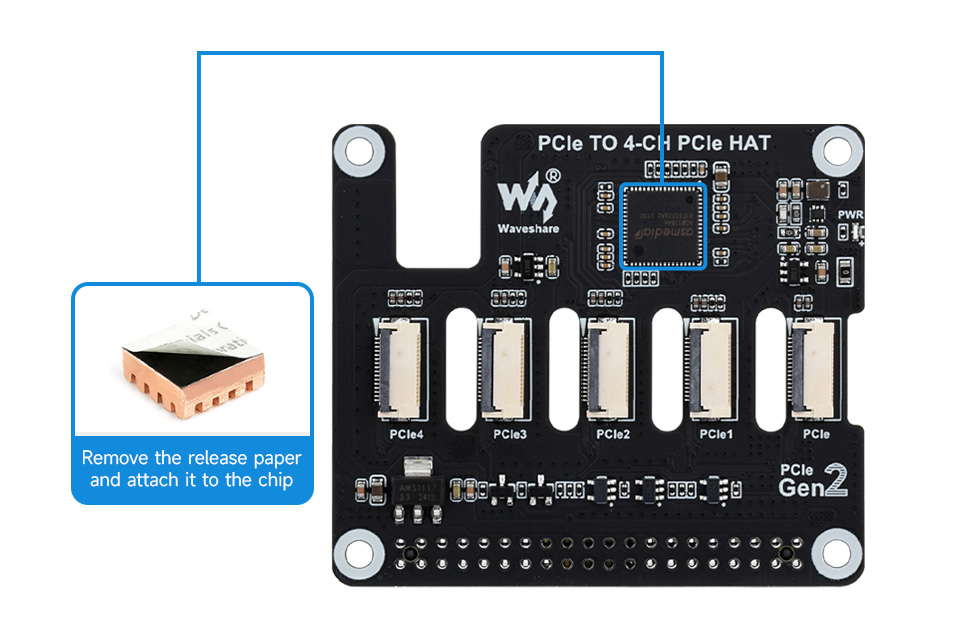

  • Cooling: heatsink included
  • Application: PCIe interface expansion for Raspberry Pi 5
  • Mounting: HAT standard, mounting standoffs

Kit includes

  • PCIe TO 4-Ch PCIe HAT board – 1 pc
  • 2×20 pin header – 1 pc
  • Heatsink – 1 pc
  • Mounting standoff set – 1 set
  • 16-pin PCIe cable 40 mm – 5 pcs
  • 16-pin PCIe cable 70 mm – 5 pcs
