PCIe-to-M.2 MINI adapter for Raspberry Pi 5 - Waveshare 27580
ID: 1196618
5902186305571
zł23.19
Tax included
zł18.85 tax excl.
The PCIe To M.2 MINI adapter allows the Raspberry Pi 5 to be expanded with a high-speed NVMe SSD, offering high bandwidth and the ability to boot the system directly from the drive. Its compact form makes the module ideal for projects that require high computing power and fast data access within limited mounting space. It is well-suited for file systems, servers, terminals, and embedded projects using the Raspberry Pi 5.
Description

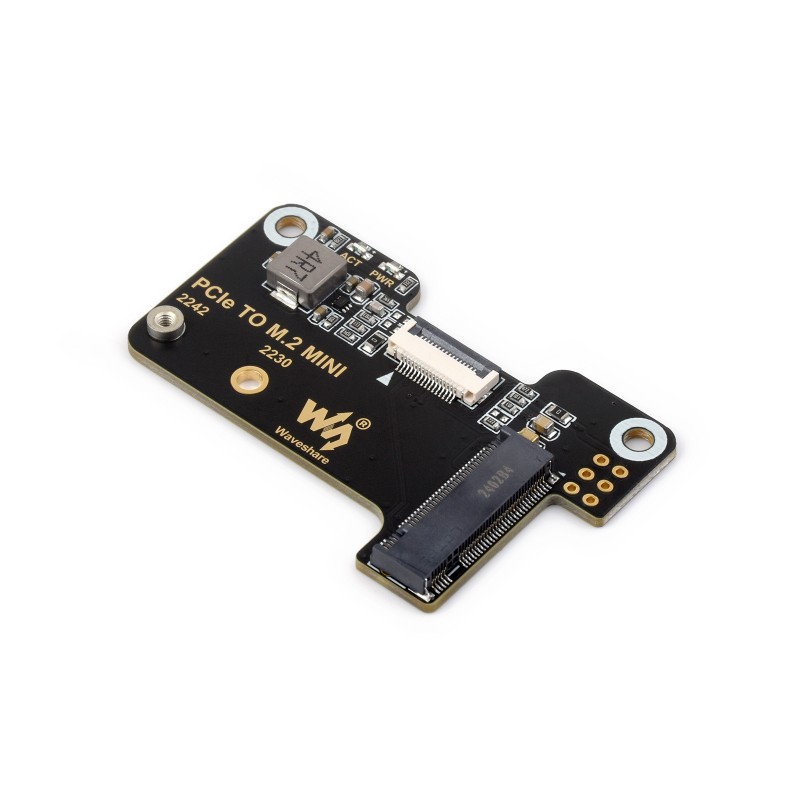

The PCIe To M.2 MINI HAT enables the connection of M.2 SSDs compatible with the NVMe protocol to the Raspberry Pi 5 via the 16-pin PCIe interface. The adapter supports 2230 and 2242 drive sizes and Gen2 and Gen3 transmission modes, providing fast data read and write speeds. It allows booting the system directly from the SSD. Thanks to its compact design, the adapter integrates easily into cases and projects with limited space. The board features two LEDs for monitoring operational status. The module requires no additional power supply or drivers.
Features
- Support for M.2 NVMe SSDs in 2230 and 2242 formats
- Compatibility with Gen2 and Gen3 modes
- Support for booting Raspberry Pi 5 from NVMe SSD
- 16-pin PCIe connector for Raspberry Pi 5
- Compact housing for integration into projects
- 2 LEDs indicating operational status
- Dimensions: 56,60x35,50mm
Included
- PCIe To M.2 MINI ×1
- 16-pin cable (40 mm) ×1
- 2×3 pin header ×1
- Mounting screw set ×1
1196618
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
