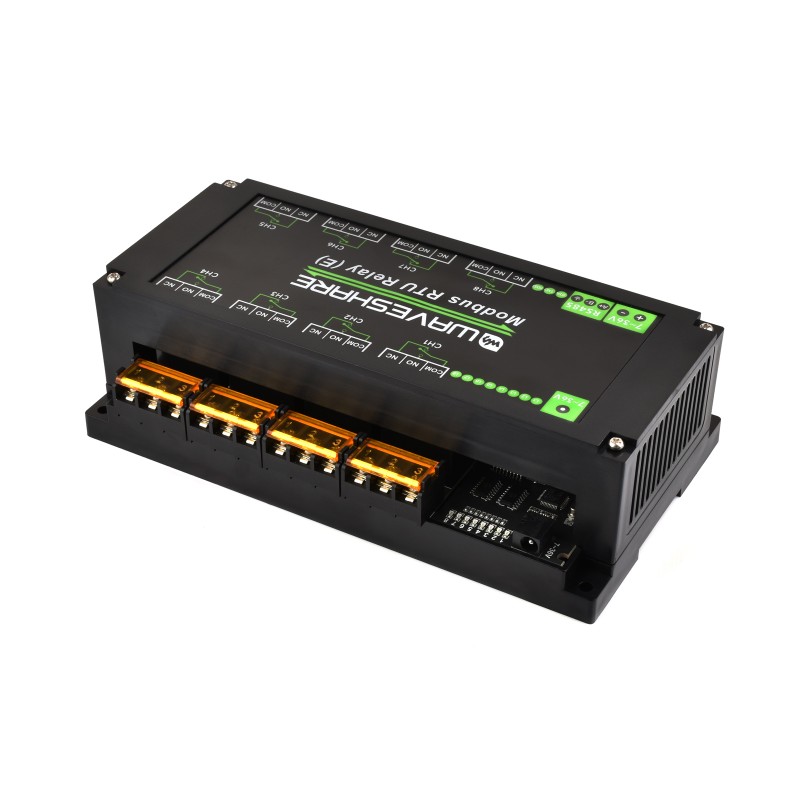

Modbus RTU relay module (E) 8 × 30 A RS485 DIN-rail - Waveshare 30459
ID: 1197645
zł207.87
Tax included
zł169.00 tax excl.
Modbus RTU Relay (E) is a reliable relay module with an RS485 interface for use in industrial automation systems, remote control, HVAC, lighting, and energy management systems. It supports control of up to 8 relays rated at 30 A with full galvanic isolation and addressable function, enabling easy integration into complex serial communication installations.
Description
Industrial relay module with 8 channels controlled via RS485 bus using the Modbus RTU protocol. Equipped with high-current relays (up to 30 A) and multilayer protections such as galvanic isolation, opto-isolation, surge and short-circuit protection, ensuring stable, reliable, and safe operation in industrial automation applications.
Supports configurable device addressing (1–255), cascading of multiple modules in a single RS485 network, and timed relay switching mode. The built-in voltage regulator supports a wide input range of 7–36 V. Communication via RS485 with support for multiple baud rates and data formats. Housed in an ABS enclosure adapted for DIN rail mounting to facilitate integration into industrial installations.
Features
- RS485 communication with Modbus RTU protocol
- 8 relay channels, each with NO/NC contacts
- Contact rated current: ≤30 A 250 V AC or ≤30 A 28 V DC
- Built-in protections:
- Power isolation
- Signal isolation (ADI magnetic)
- Opto-isolation
- Resettable fuse
- TVS diode
- Flyback protection diode
- Reverse polarity protection
- Built-in voltage regulator (7–36 V DC)
- RS485 address support: 1–255
- Baud rates: 4800–256000 bps (default: 9600 bps, N, 8, 1)
- Pulse mode (flash-on / flash-off) controlled by command
- LED indicators:
- STA (MCU status)
- TXD (transmission)
- RXD (reception)
- ABS enclosure with DIN rail mounting bracket
