ID: 1195081
zł959.08
Tax included

zł779.74 tax excl.

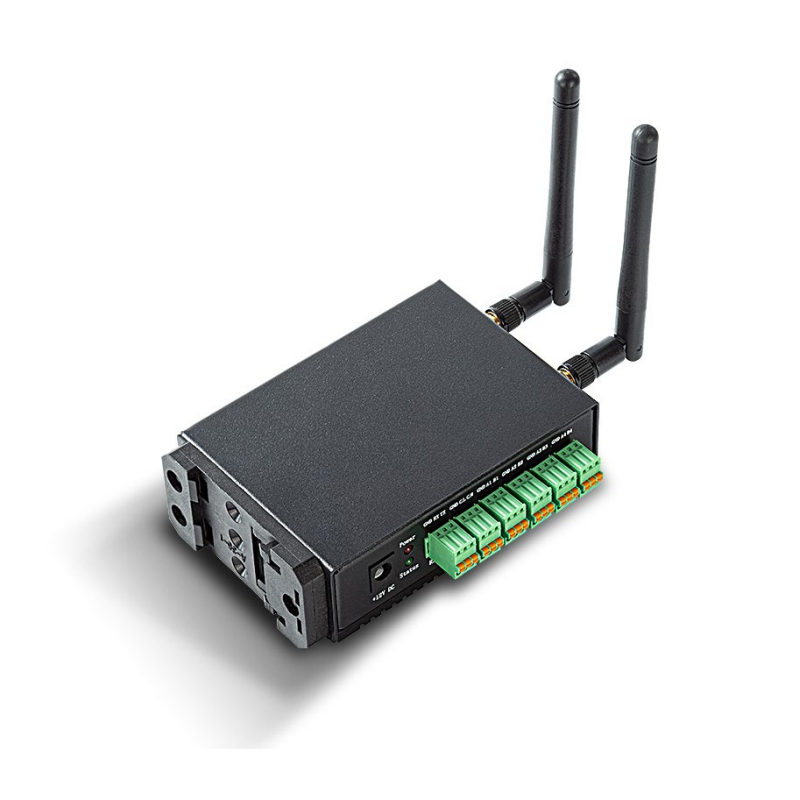

Industrial computer based on Raspberry Pi Compute Module 4, optimized for IoT and data acquisition, with effective thermal management and support for an external antenna for improved wireless communication. The device offers a rich set of interfaces, such as RS485, RS232, CAN, Gigabit Ethernet and HDMI 4K, and its solid construction ensures reliability in temperatures from -25 ° C to 60 ° C, with the possibility of mounting on a DIN rail. Edatec ED-CM4SEN-1232-4C(EU)

5 weeks
Awaiting delivery

Description

CM4 Sensing is an industrial computer designed for IoT and data acquisition applications, based on the Raspberry Pi Compute Module 4 (CM4). The device’s design maximizes the flexibility of the CM4, effectively addressing heat dissipation for the processor, wireless module, and power management unit (PMU). The use of an external antenna significantly improves wireless communication reliability. The system can be configured with 2GB of RAM and 8GB of eMMC storage. It supports Wi-Fi 2.4/5.8GHz and Bluetooth with an external antenna option and also 4G LTE communication. For scenarios requiring extensive data storage, users can install the operating system and applications on the eMMC while using an SD card for storing large datasets, offering both higher capacity and cost efficiency.


CM4 Sensing features four RS485 channels, one RS232 channel, one CAN channel, one Gigabit Ethernet channel, a buzzer, and a battery-powered real-time clock (RTC). The DSI interface is fully compatible with the Raspberry Pi 4 Model B, supporting the 7-inch Raspberry Pi touch display. An HDMI port enables 4K HD video output. The 5V/1.5A power output provides power for a Pi Display. The device includes two USB 2.0 ports and one Micro USB 2.0 port for system updates. It supports a wide input voltage range of 8V to 28V DC. Enclosed in an industrial-grade casing, the system employs a large heatsink for efficient cooling of the processor, wireless module, and PMU, ensuring reliable operation in temperatures from -25°C to 60°C. The casing includes four M2.5 mounting holes for easy installation on other devices or DIN rail mounting. The device is CE and FCC certified.

Features

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz
  • Multimedia:
    • H.265 (HEVC) decoding up to 4Kp60
    • H.264: decoding up to 1080p60, encoding up to 1080p30
    • OpenGL ES 3.1, Vulkan 1.0
  • RAM: 2GB LPDDR4-3200 SDRAM
  • Storage:
    • Built-in eMMC: 32GB (for system boot)
    • MicroSD card slot for data storage, works alongside eMMC
  • Display Options:
    • Standard HDMI Out (Type A)
    • FPC HDMI Touch Display
    • FPC DSI Touch Display
  • Wired Interfaces:
    • Gigabit Ethernet (10/100/1000M)
    • 2x USB 2.0 Type-A
    • USB micro-B for eMMC programming (internal)
  • Wireless Connectivity:
    • Wi-Fi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac and Bluetooth 5.0, BLE with external antenna
    • Optional 4G LTE with optional GPS support, 1x Nano-SIM card slot, external antenna
  • Industrial Interfaces:
    • 4 x RS485, 3-pin Terminal Block connector
    • 1 x RS232, 3-pin Terminal Block connector
    • 1 x CAN, 3-pin Terminal Block connector
    • RTC with CR1220 backup battery
    • Buzzer
  • Expansion:
    • Mini-PCIe slot with one PCIe lane and 1x USB 2.0 (supports 4G modules)
    • 5V@1A DC power output (2-pin WTB connector) for official 7" Raspberry Pi touch display
  • Enclosure: Aluminum heatsink with a metal casing, 2 antenna holes
  • Mounting: DIN rail mount (with kit) or wall mount
  • Operating System:
    • Pre-installed Raspberry Pi OS 32-bit with GUI on eMMC
    • Supports 32-bit and 64-bit versions of Raspberry Pi OS, Lite and Desktop
    • BSP updates via APT supported
  • Power:
    • Input voltage: 8 to 28V DC
    • DC Jack or optional 2-pin Terminal Block
  • LED Indicators:
    • Power indicator (red LED)
    • Status indicator (green LED)
    • 4G network indicator (blue LED, internal)
  • Operating Temperature: -25°C to 60°C
  • Operating Humidity: 10% to 60%
  • Dimensions: 103 x 73 x 32 mm
