ID: 1195082
zł904.37
Tax included

zł735.26 tax excl.

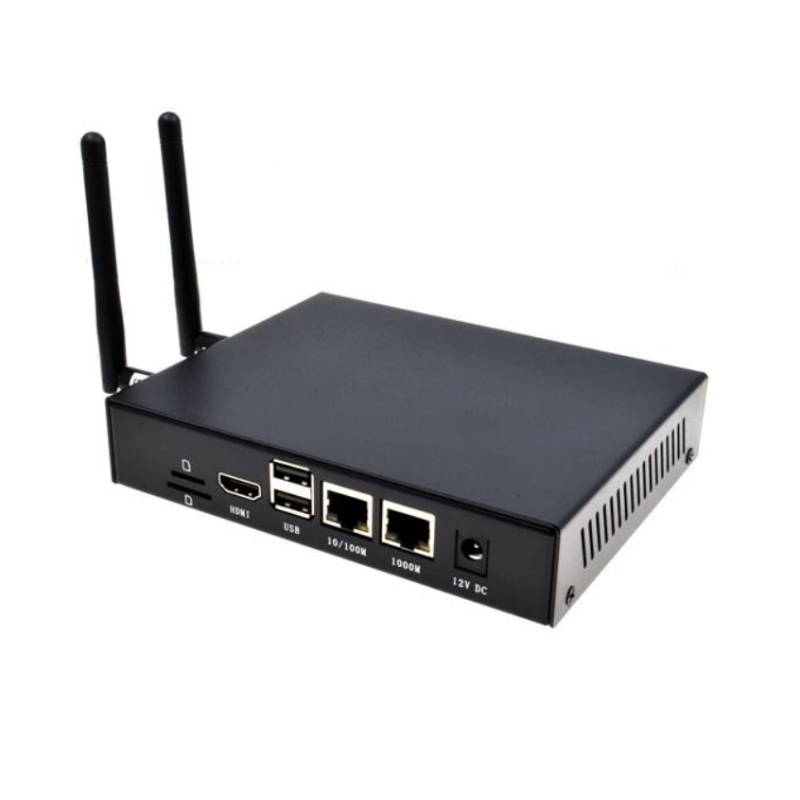

Industrial computer based on Raspberry Pi Compute Module 4, with 4 GB RAM and 8 GB eMMC, supporting system boot from SD card and a wide set of interfaces such as RS232, RS485, ADC, isolated I/O, PoE, WiFi, Bluetooth with external antennas. With built-in Flash memory, support for PCI-e Gen2 and GPIO, as well as operation in voltages from 8 to 36 V, the device is ideal for applications requiring advanced communication and reliability in industrial environments. Edatec ED-CM4IND-1408-C

5 weeks
Awaiting delivery

Description

CM4 Industrial is an industrial-grade computer based on the Raspberry Pi Compute Module 4 (CM4). The system includes 4GB of RAM and 8GB of eMMC storage, with support for booting from an SD card. This device is equipped with a wide range of industrial communication interfaces and features, such as RS232, RS485, a precision ADC, isolated inputs/outputs, relay control, a battery-powered real-time clock (RTC), a buzzer, an Ethernet interface with PoE, a secondary 10/100M Ethernet port with support for external antennas. It also supports dual-band Wi-Fi 2.4/5.8GHz and Bluetooth, along with official Raspberry Pi components like an 8 MP camera, DSI display port, and HDMI output.


Other notable features of CM4 Industrial include onboard serial Flash memory of 4 MB for system data storage, a wide power input range of 8 to 36V, and ESD protection for critical interfaces. Users can extend the device's functionality through a PCI-e 1x Gen2 interface, standard 40-pin GPIO header, two 4-pin USB headers for internal expansion, an RS232 TTL interface, and other options. These features make CM4 Industrial an excellent choice for applications requiring advanced communication capabilities.

Features

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz
  • Multimedia:
    • H.265 (HEVC) decoding up to 4Kp60
    • H.264: decoding up to 1080p60, encoding up to 1080p30
    • OpenGL ES 3.1, Vulkan 1.0
  • RAM: 4 GB LPDDR4-3200 SDRAM
  • Storage:
    • Built-in eMMC: 8GB (for system boot)
    • MicroSD card slot for data storage, works alongside eMMC
    • Onboard SPI Flash 4 MB
  • Display Options:
    • Standard HDMI Out (Type A)
    • FPC HDMI Touch Display
    • FPC DSI Touch Display
  • Wired Interfaces:
    • Gigabit Ethernet (10/100/1000M)
    • Fast Ethernet (10/100M)
    • 2x USB 2.0 Type-A
    • USB micro-B for eMMC programming (internal)
  • Wireless Connectivity:
    • Wi-Fi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac and Bluetooth 5.0, BLE with external antenna
  • Industrial Interfaces:
    • 2x RS485, 6-pin Terminal Block connector
    • RS232, 3-pin Terminal Block connector
    • 3x 12-bit ADC channels, 4-pin Terminal Block connector
    • 2x isolated digital inputs (DI), supports dry/wet contacts
    • DPDT relay, 6-pin Terminal Block connector
    • RTC with CR1220 backup battery
    • Fan speed control, 3-pin Wafer connector
    • Buzzer
  • Expansion:
    • Mini-PCIe slot with one PCIe lane and USB 2.0 (supports 4G modules)
    • Raspberry Pi 40-pin GPIO header
    • Serial (TTL), 4-pin DIP header
    • 2x USB 2.0, 4-pin DIP headers
    • Non-isolated IO, 2-pin DIP header
  • Enclosure: Aluminum heatsink with a metal casing, 2 antenna holes
  • Mounting: DIN rail mount (with kit) or wall mount
  • Operating System:
    • Pre-installed Raspberry Pi OS 32-bit with GUI on eMMC
    • Supports 32-bit and 64-bit versions of Raspberry Pi OS, Lite and Desktop
    • BSP updates via APT supported
  • Power:
    • Input voltage: 8 to 36V DC
    • DC Jack or optional 2-pin Terminal Block
  • LED Indicators:
    • Power indicator (red LED)
    • Status indicator (green LED)
    • 4G network indicator (blue LED, internal)
  • Buttons: Reset and User button
  • Operating Temperature: 0°C to 50°C
  • Operating Humidity: 10% to 60%
  • Dimensions: 147 x 119 x 28 mm
