ID: 1195086
zł1,267.12
Tax included

zł1,030.18 tax excl.

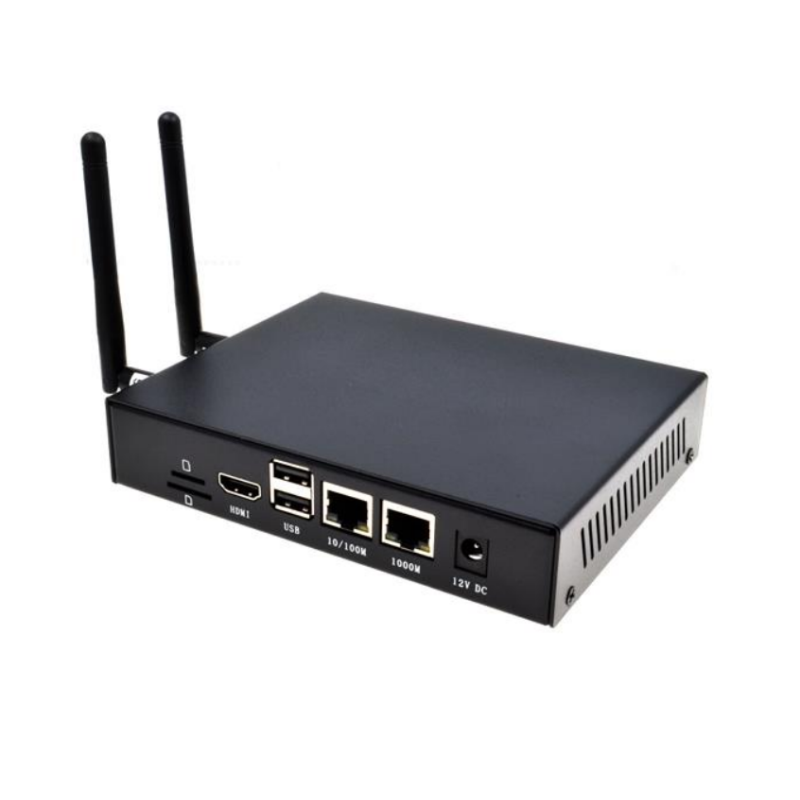

Industrial computer based on Raspberry Pi Compute Module 4, with 8 GB RAM and 8 GB eMMC, supporting booting from SD card and a wide range of interfaces such as RS232, RS485, ADC, isolated I/O, PoE, WiFi, Bluetooth, and 4G/LTE with external antennas. With built-in Flash memory, support for PCI-e Gen2 and GPIO, as well as operation in voltages from 8 to 36 V, the device is ideal for applications requiring advanced communication and reliability in industrial environments. Edatec ED-CM4IND-1808-4C(EU)

5 weeks
Awaiting delivery

Description

CM4 Industrial is an industrial computer based on the Raspberry Pi Compute Module 4 (CM4). The system offers 8GB of RAM and 8GB of eMMC storage. It also supports system booting from an SD card. The device provides a wide range of industrial communication interfaces and features, such as RS232, RS485, a precise ADC converter, isolated inputs/outputs, relay control, a battery-powered real-time clock, an audible alarm, one Ethernet interface with PoE support, one 10/100M port, a 4G/LTE module, and support for external antennas. Additionally, it features certified dual-band WiFi 2.4/5.8GHz and Bluetooth. It also supports official Raspberry Pi components, such as an 8 MP camera, a DSI display port, and HDMI output.


Other noteworthy features of the CM4 Industrial include built-in serial Flash 32Mb (4MB) for system data storage, a wide input voltage range of 8 to 36 V, and ESD protection for all critical interfaces. Users can expand the functionality of the device using the PCI-e 1x Gen2 interface, standard 40-pin GPIO connector, two 4-pin USB interfaces for internal expansion, the RS232 TTL interface, and other options. These features make the CM4 Industrial ideal for applications requiring advanced communication capabilities.

Features

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz
  • Multimedia:
    • H.265 (HEVC) decoding up to 4Kp60
    • H.264: decoding up to 1080p60, encoding up to 1080p30
    • OpenGL ES 3.1, Vulkan 1.0
  • RAM: 8 GB LPDDR4-3200 SDRAM
  • Memory:
    • Built-in eMMC: 8GB (for system boot)
    • MicroSD card slot for data storage, compatible with eMMC
    • Built-in SPI Flash memory: 4 MB
  • Display:
    • Standard HDMI Out (Type A)
    • FPC HDMI Touch Display
    • FPC DSI Touch Display
  • Wired Interface:
    • Gigabit Ethernet (10/100/1000M)
    • Fast Ethernet (10/100M)
    • 2x USB 2.0 Type-A
    • USB micro-B for programming eMMC (inside the enclosure)
  • Wireless Connectivity:
    • Wi-Fi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac and Bluetooth 5.0, BLE with external antenna
    • 4G LTE module with optional GPS support, 1 standard SIM card slot, external antenna
  • Industrial Interfaces:
    • 2x RS485, 6-pin Terminal Block connector
    • RS232, 3-pin Terminal Block connector
    • 3x ADC 12-bit channels, 4-pin Terminal Block connector
    • 2x isolated DI, support for dry/wet contacts
    • DPDT relay, 6-pin Terminal Block connector
    • RTC with backup battery CR1220
    • Fan speed control, 3-pin Wafer connector
    • Buzzer
  • Expansion:
    • Mini-PCIe slot with one PCIe lane and USB 2.0 (supports 4G modules)
    • Raspberry Pi 40-PIN GPIO connector
    • Serial (TTL), 4-pin DIP connector
    • 2x USB 2.0, 4-pin DIP connector
    • Non-isolated IO, 2-pin DIP connector
  • Metal enclosure with aluminum heatsink, 2 antenna openings
  • DIN rail mounting (with kit) or wall mounting
  • Operating System:
    • Pre-installed Raspberry Pi OS 32-bit with GUI on eMMC
    • Supports 32-bit and 64-bit Raspberry Pi OS, Lite, and Desktop
    • BSP updates via APT
  • Power Supply:
    • Input voltage: 8 to 36 V DC
    • DC Jack or optional 2-pin Terminal Block
  • LED Indicators:
    • Power indicator (red LED)
    • Status indicator (green LED)
    • 4G network indicator (blue LED, inside the enclosure)
  • Reset and User buttons
  • Operating Temperature: 0°C to 50°C
  • Operating Humidity: 10% to 60%
  • Dimensions: 147 x 119 x 28 mm
