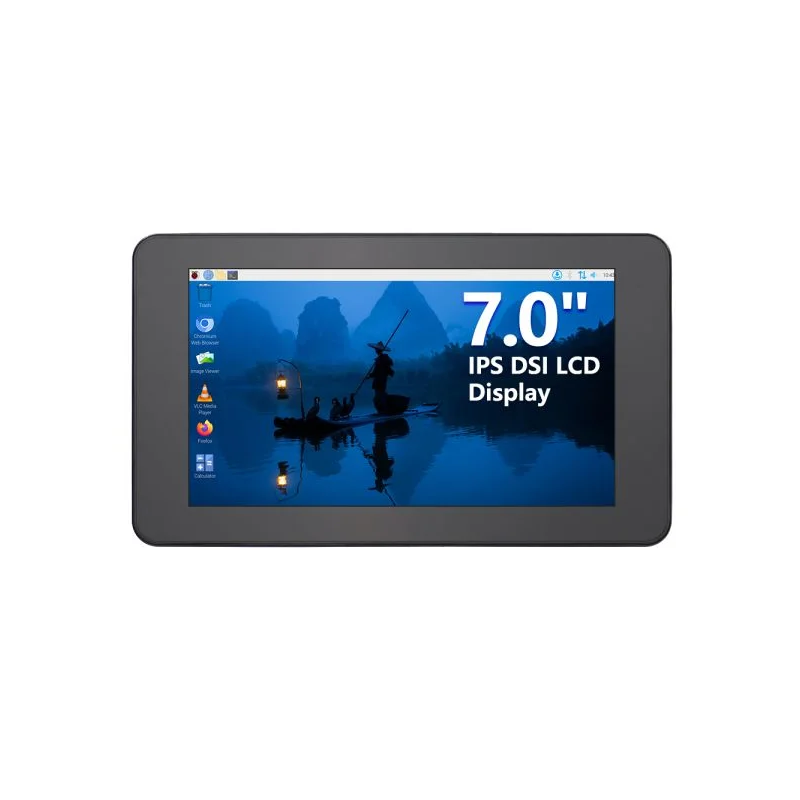

7inch IPS DSI Touch Screen-A - 7" 800x480 IPS LCD display for Raspberry Pi
ID: 1206343
5902186338142
zł207.44
Tax included
zł168.65 tax excl.
A 7-inch IPS touchscreen display with an 800x480 resolution designed for the Raspberry Pi and other single-board computers. It offers wide 170° viewing angles, 5-point capacitive touch, and a bright 400 cd/m² LED backlight for excellent readability in a variety of conditions. Thanks to the DSI interface, it offers plug-and-play operation without the need for driver installation. Elecrow DLH05270B
Description
7inch IPS DSI Touch Screen-A is a modern touch display designed primarily for use with Raspberry Pi, BB Black, and other compatible single-board computers. The display features a 7-inch IPS panel with a resolution of 800×480 pixels, ensuring realistic color reproduction, wide viewing angles, and high image quality. Thanks to IPS technology, the screen provides a clear and readable image even when viewed from sharp angles. The touch panel supports 5-point capacitive touch, enabling smooth and convenient user interaction.
The screen is specifically designed for Raspberry Pi 4B and Raspberry Pi 5 and can be connected directly via the DSI interface. With its plug & play design, no additional drivers are required, significantly simplifying setup and system startup. The display includes a built-in OSD menu for adjusting image parameters such as brightness and contrast. USB-based software dimming allows the screen to be adapted to different working conditions and professional applications.
The display is well-suited for IoT projects, automation systems, control panels, multimedia devices, and educational applications. LED backlighting with 400 cd/m² brightness ensures good visibility in various lighting conditions. The device is certified with CE and RoHS, confirming safety and environmental compliance. Its solid construction and wide operating temperature range allow stable operation in demanding environments. Included mounting accessories and cables allow for quick and easy setup.
Features
- Display type: IPS
- Screen size: 7.0 inch
- Resolution: 800 × 480 px
- Viewing angle: 170°
- Touch type: capacitive, 5-point
- Signal interface: DSI
- Backlight: LED
- Brightness: 400 cd/m²
- Supported systems: Raspbian, Ubuntu, Kali, WIN10 IoT
- Windows compatibility: 7/8/8.1/10/11
- Compatibility: Raspberry Pi 3/4/5, BB Black, Banana Pi
- Supports PS4 and Xbox consoles
- OSD menu for brightness and contrast adjustment
- Plug & play design, no driver installation required
- Power supply: 5 V
- Power consumption: 2.2 W
- Operating temperature: -20°C to 60°C
- Active display area: 154.21 × 85.92 mm
- Dimensions: 192.96 × 110.76 × 20.13 mm
- Weight: 372 g
Kit contains
- 7inch IPS DSI touch display
- 2-pin Dupont cable
- Ribbon cable 5 cm for Raspberry Pi 4B
- Ribbon cable 10 cm for Raspberry Pi 4B
- Ribbon cable 20 cm for Raspberry Pi 4B
- Ribbon cable 16 cm for Raspberry Pi 5
- 4 × Raspberry Pi M2.5 screw set
- Mini screwdriver
- 4 × M2 brass spacers
1206343
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 7
- Resolution
- 800 x 480 px
- Interface
- DSI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
