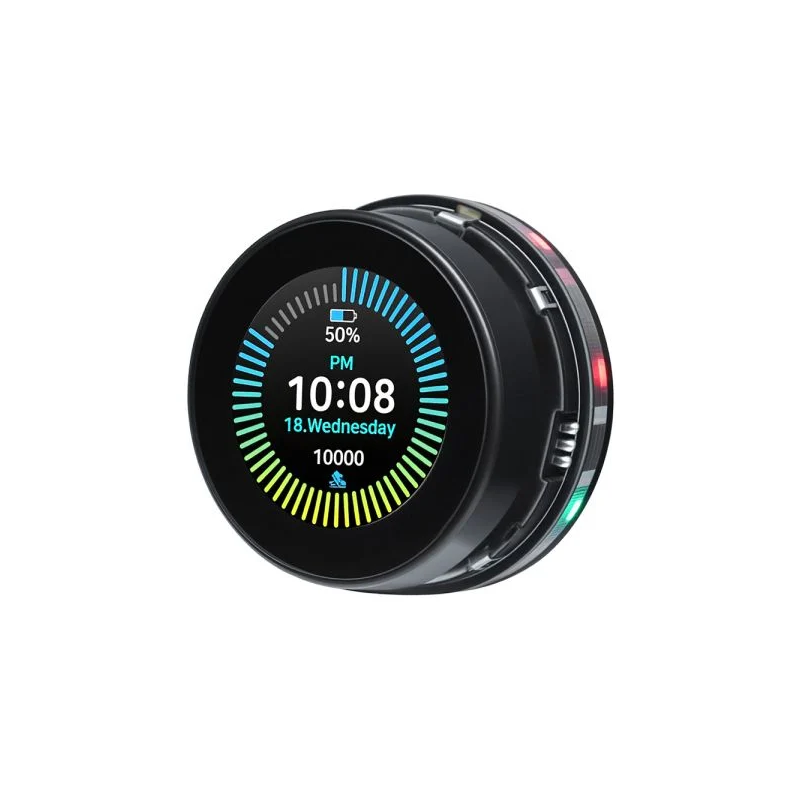

Main view
search
  • Main view
  • Back view
ID: 1206342
zł129.91
Tax included

zł105.62 tax excl.

This user interface module, based on the ESP32-S3 processor, features WiFi and Bluetooth BLE connectivity, a 360x360 px circular IPS display, and a touchscreen with a rotary knob. The device offers 16 MB of Flash and 8 MB of PSRAM, enabling the creation of complex graphical interfaces in the Arduino IDE and LVGL environments. Support for UART, I2C, and FPC allows for easy integration with IoT and automation systems. The Elecrow DHR55146D

24h
Available
Available quantity: 3

Description

CrowPanel 1.46inch-HMI is an advanced interactive display module that combines a touchscreen with a precise rotary encoder knob. The device is designed for modern IoT projects and intelligent control systems. At its core is a powerful dual-core ESP32-S3 processor running at up to 240 MHz, ensuring smooth operation and fast data processing. The use of 8 MB PSRAM and 16 MB Flash memory enables more complex projects and user interfaces. The 1.46-inch display uses IPS technology and offers a resolution of 360×360, providing a sharp and detailed image.


The device supports both touch control and operation via a rotary knob, which allows rotation left/right as well as a click function. This enables intuitive adjustment of parameters such as volume, brightness, or operating modes. The module supports wireless communication via 2.4 GHz WiFi and Bluetooth BLE, allowing easy integration with smart home systems. Built-in UART, I2C, and FPC interfaces enable extensive expansion and integration with additional devices. The integrated backlight improves usability and visual comfort.

The device is designed for low power consumption, making it suitable for portable applications. Compatibility with Arduino IDE and the LVGL library enables fast development of graphical interfaces. CrowPanel is ideal for smart home applications, industrial automation, and educational projects. It can be used as a control panel, user interface, or auxiliary PC display. Its solid construction and compact size make integration easy across different projects. High build quality ensures stable and reliable operation. This is a versatile solution for makers, engineers, and electronics enthusiasts.

Features

  • Processor: ESP32-S3R8, Xtensa 32-bit LX7, dual-core, up to 240 MHz
  • RAM: 512 KB SRAM + 8 MB PSRAM
  • Flash memory: 16 MB
  • Display: 1.46 inch, IPS, 360×360 px
  • Touch: capacitive + rotary encoder (rotate left/right + click)
  • Connectivity: WiFi 802.11 b/g/n 2.4 GHz, Bluetooth 5.0 BLE
  • Interfaces: UART (ZX-MX 1.25-4P), I2C (ZX-MX 1.25-4P), FPC 12P (0.5 mm pitch)
  • Power supply: 5V / 1A, main board 3.3V
  • Buttons: RESET, BOOT, encoder press (confirm click)
  • Lighting: ambient LED backlight + power indicator
  • Compatibility: Arduino IDE, LVGL library
  • Enclosure: plastic + acrylic
  • Operating temperature range: -20°C to 65°C
  • Dimensions: 60 × 60 × 27.5 mm
  • Weight: 60 g

Kit contains

  • CrowPanel ESP32 1.46inch Rotary Display
  • MS1.25 to USB cable (50 cm)
  • 4-pin Dupont cable
