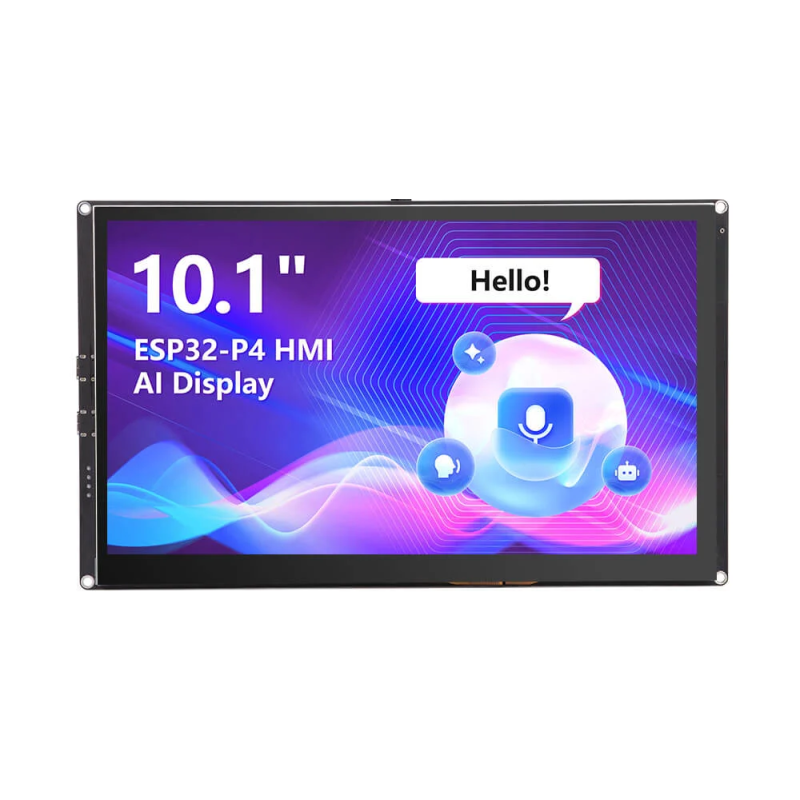

Main view
search
  • Main view
  • Set view
ID: 1206341
zł239.90
Tax included

zł195.04 tax excl.

An HMI panel with a powerful ESP32-P4 chip and an additional ESP32-C6 module, offering Wi-Fi 6 and Bluetooth 5.3 connectivity for IoT, automation, and AIoT applications. The device features a 10.1-inch IPS screen with a resolution of 1024 × 600 pixels and a capacitive touch panel supporting up to 5 touch points, ensuring convenient and smooth interface operation. With 32 MB of PSRAM, 16 MB of Flash, and support for LVGL, Arduino IDE, and ESP-IDF, the panel enables the creation of complex graphical applications and control systems. Elecrow DHE04310D

4 weeks
Awaiting delivery

Description

CrowPanel Advanced 10.1 inch is a modern HMI panel based on the powerful ESP32-P4 chipset, designed for advanced IoT projects, industrial automation, smart home systems, and AIoT applications. The device utilizes a RISC-V architecture and a dual-core processor operating at up to 400 MHz, delivering high performance while maintaining low power consumption. Thanks to the additional ESP32-C6 module, the panel provides stable wireless connectivity with Wi-Fi 6 and Bluetooth 5.3 support. Large onboard memory resources, including 16 MB Flash and 32 MB PSRAM, ensure smooth operation of advanced graphical interfaces and AI-based applications.

The device is equipped with a 10.1-inch IPS display with a resolution of 1024 × 600 pixels, offering wide viewing angles and sharp image quality. The capacitive touchscreen supports up to 5-point multi-touch, enabling smooth and intuitive interaction with the user interface. The panel works seamlessly with the LVGL library as well as Arduino IDE and ESP-IDF development environments, simplifying the creation of modern graphical interfaces. With a brightness of 400 cd/m², the display remains clearly visible even in brightly lit environments.


CrowPanel Advanced also offers integrated AI features, enabling projects involving face recognition, object tracking, and real-time image analysis. An optional 2 MP MIPI-CSI camera allows advanced vision-based applications without the need for additional processing modules. The built-in audio system with the NS4168 codec, microphone, and dual speakers supports voice control projects, intelligent assistants, and voice communication systems.

The panel is equipped with a rich set of communication interfaces and expansion options, including USB-C, UART, I2C, GPIO, SD card reader, and Crowtail connectors. The modular wireless architecture supports multiple communication protocols such as Zigbee, Thread, Wi-Fi Halow, and LoRa. This allows the device to be easily adapted for various IoT and industrial automation environments. Support for multiple communication standards makes the panel ideal for smart home control centers, environmental monitoring systems, and industrial operator panels.

Features

  • Main chipset: ESP32-P4NRW32
  • Processor: ESP32-P4
  • Architecture: RISC-V
  • High-performance HP processor: RISC-V 32-bit dual-core up to 400 MHz
  • Low-power LP processor: RISC-V 32-bit single-core up to 40 MHz
  • System memory: 768 KB L2MEM (HP)
  • SRAM memory: 32 KB SRAM (LP)
  • TCM memory: 8 KB
  • PSRAM memory: 32 MB
  • ROM memory: 128 KB ROM (HP)
  • LP ROM memory: 16 KB ROM (LP)
  • Flash memory: 16 MB
  • Supported development environments: ESP-IDF, Arduino IDE
  • Display size: 10.1 inch
  • Display resolution: 1024 × 600 px
  • Display type: IPS TFT
  • Touch panel: capacitive
  • Touch support: single touch and 5-point multi-touch
  • Viewing angle: 178°
  • Display brightness: 400 cd/m²
  • Color depth: 16.7M (8-bit)
  • Built-in ESP32-C6-MINI-1 module
  • Wi-Fi connectivity: 2.4 GHz Wi-Fi 6, 802.11a/b/g/n
  • Bluetooth 5.3 and BLE support
  • Support for additional protocols: Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi Halow (optional)
  • Interfaces: USB 2.0, UART, I2C, GPIO, SD card reader, battery connector, speaker connector, camera connector, module connectors
  • Dual USB-C ports
  • Crowtail connectors supporting I2C and UART
  • Built-in audio amplifier
  • Battery charging management
  • USB-UART converter
  • Built-in microphones
  • Dual speakers
  • Support for optional 2 MP MIPI-CSI camera
  • Support for face recognition and object tracking
  • Speaker connector: BX-PH 2.0-2PWT
  • Speaker connector pin count: 1 × 2P
  • Speaker connector pitch: 2 mm
  • Speaker connector dimensions: 8 × 8.5 × 5.6 mm
  • Connector mounting type: SMT Right Angle
  • Reset button
  • Boot button
  • On/Off power button
  • PWR power indicator
  • CHG charging indicator
  • Mounting methods: M3 3.2 mm mounting holes, panel mounting, enclosure integration
  • Operating temperature: -20°C to 70°C
  • Storage temperature: -30°C to 80°C
  • Power supply: 5 V / 2 A via USB or UART
  • Device dimensions: 248 × 147 mm

Kit contains

  • CrowPanel Advance ESP32-P4 Display 10.1 inch
  • USB-A to USB Type-C cable
  • Crowtail/Grove 4-pin DuPont cable
