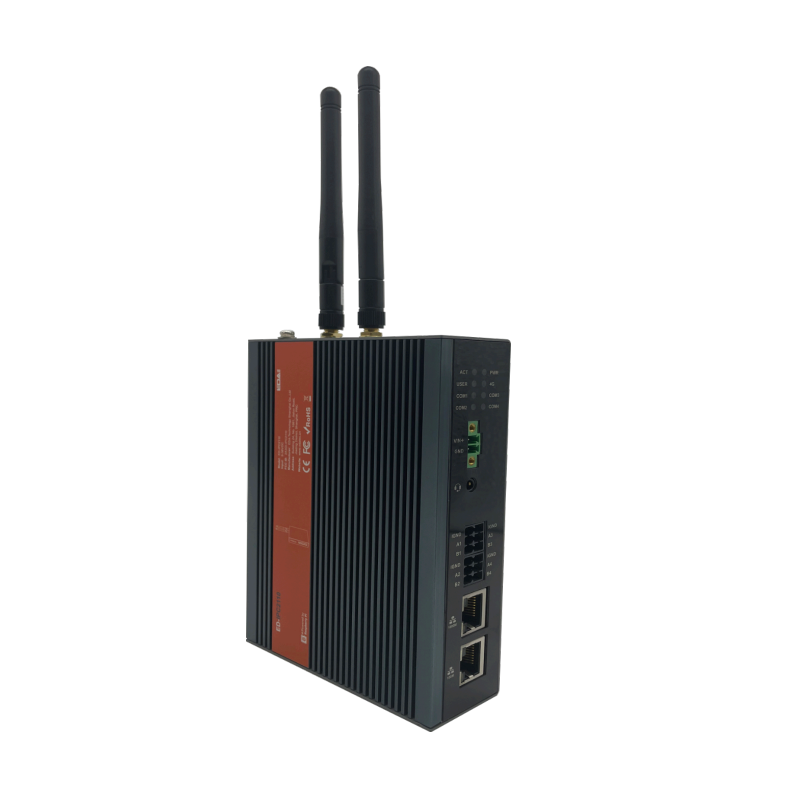

Industrial computer with quad-core Cortex-A72 1.5GHz processor, 2GB LPDDR4 RAM and 8GB eMMC, expandable via Micro SD and M.2 NVMe SSD. Equipped with two Ethernet ports, isolated RS232 and RS485, Wi-Fi, Bluetooth and wide power range, it is perfect for IoT and industrial automation, offering reliability in harsh conditions thanks to its solid housing and operation in temperatures from -25°C to 60°C. Edatec ED-IPC2110-1208

5 weeks
Awaiting delivery

Description

ED-IPC2110 is an industrial embedded computer powered by the efficient Broadcom BCM2711 chipset, featuring a quad-core Cortex-A72 (ARM v8) 64-bit processor running at 1.5GHz. It includes 2GB of LPDDR4 RAM and 8GB of built-in eMMC storage, with support for memory expansion via Micro SD cards and M.2 NVMe SSDs. The device is equipped with dual Ethernet ports (GbE and 100M), providing extensive communication capabilities. Additionally, it features two isolated RS232 ports and two RS485 ports with electrostatic discharge and surge protection, making it reliable for use in demanding industrial environments. Wireless communication is supported through dual-band Wi-Fi (2.4GHz and 5GHz) and Bluetooth.


The device operates on a wide DC voltage range of 9V to 36V, with built-in protection against reverse polarity, overvoltage, and overcurrent. It includes a supercapacitor for emergency power backup, along with built-in features such as RTC, Watchdog, EEPROM, and a cryptographic module for enhanced security. Designed for a wide operating temperature range of -25°C to 60°C, the ED-IPC2110 is suitable for harsh industrial conditions. A robust, high-quality metal enclosure and DIN rail mounting compatibility ensure durability and easy installation. This versatile solution is ideal for IoT applications, industrial automation, and data management systems.

Features

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz
  • VPU:
    • H.265 (HEVC) up to 4Kp60 (decode)
    • H.264 up to 1080p60 (decode), 1080p30 (encode)
  • GPU: OpenGL ES 3.1, Vulkan 1.0
  • RAM: 2GB LPDDR4-3200
  • Storage: 8GB eMMC
  • Micro SD card slot for additional storage
  • Optional M.2 NVMe SSD support
  • Connectivity:
  • Dual-band Wi-Fi: 2.4GHz (b/g/n) and 5GHz (a/n/ac) with antenna
  • Bluetooth 5.0 with antenna
  • Ethernet:
    • 1x 10/100/1000M (RJ45) – PoE support via expansion module
    • 1x 10/100M (RJ45)
  • Antennas: 2x SMA connectors for Wi-Fi/BT and 4G antennas
  • USB Ports:
    • 2x USB 2.0 Type-A (up to 480Mbps)
    • 1x Micro USB (for eMMC programming)
    • 1x USB 2.0 (5-pin FPC)
  • HDMI: 1x Type A, HDMI 2.1 (up to 4K @ 60Hz)
  • GPIO:
    • 1x 40-pin (Raspberry Pi compatible)
    • 1x 10-pin (8 GPIO + power)
  • Serial Ports:
    • 2x RS485 (isolated with surge protection)
    • 2x RS232 (isolated with surge protection)
  • Power Input: 9 to 36V DC (2-pin Phoenix terminal)
  • Power Output:
    • 3x 12V @ 1A (for additional devices)
    • 1x 5V @ 1A (for accessories)
  • Power consumption: Up to 24W
  • RTC:** Real-time clock (with CR1220 battery)
  • EEPROM: 4KB for configuration data
  • Crypto Authentication
  • Hardware watchdog based on RTC
  • Buzzer
  • Buttons:
    • Device reset
    • Rpiboot mode switch
  • LED Indicators:**
    • PWR: Red (power)
    • ACT: Green (system status)
    • USER: Green (configurable)
    • COM1~COM4: Green (UART communication status)
  • Optional connectors: M.2 B-Key for SSD (2230, 2242)
  • DIN rail mounting
  • Operating system:** Raspberry Pi OS (Desktop and Lite) 32-bit and 64-bit
  • Operating temperature: -25°C to 60°C
  • Operating humidity: 10% to 60%
  • Dimensions: 143 x 100 x 35 mm (excluding DIN rail and antenna)
  • Weight: 750 g
