The PUSR USR-EG828-GL industrial computer is designed for industrial automation, edge computing, and Industrial IoT applications. It features a quad-core Rockchip RK3568 ARM Cortex-A55 64-bit processor running at up to 2.0 GHz, a 1 TOPS AI NPU accelerator, 4 GB DDR4 memory, and Linux Ubuntu 20.04. A comprehensive set of interfaces, including 4G LTE, Ethernet, WiFi, GPS, RS232, RS485, CAN, USB 3.0, HDMI, as well as analog and digital I/O, enables integration with industrial equipment, PLC controllers, and IoT platforms. PUSR USR-EG828-GL

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The PUSR USR-EG828-GL is designed for industrial automation, smart building, energy management, robotics, and edge computing applications. Based on the Rockchip RK3568 ARM platform, it delivers high computing performance while enabling local data processing without relying on external servers. The device comes pre-installed with Linux Ubuntu 20.04 and a complete set of hardware drivers, allowing rapid deployment of custom industrial applications.

High-performance hardware platform for data processing

The computer is powered by a Rockchip RK3568 quad-core ARM Cortex-A55 64-bit processor running at up to 2.0 GHz, supported by 4 GB DDR4 RAM, 32 GB eMMC storage, and an ARM G52 2EE GPU. An integrated 1 TOPS AI NPU enables on-device execution of artificial intelligence algorithms, supporting models developed with TensorFlow, TensorFlow Lite, ONNX, Caffe, MxNet, and Darknet. The platform is suitable for image analysis, object recognition, robotic control, and other edge AI applications.


A comprehensive set of communication interfaces enables direct integration with industrial equipment, PLC controllers, and network infrastructure without requiring additional expansion modules.


Industrial communication and networking

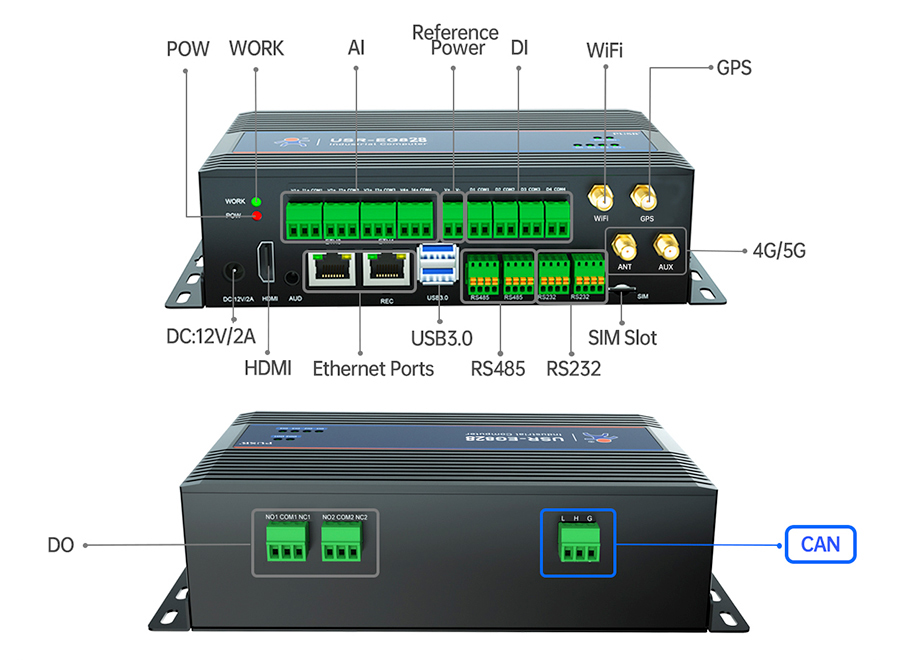

The USR-EG828-GL features two RS232 ports, two RS485 ports, a CAN interface, dual Ethernet ports, a global 4G LTE modem, 2.4 GHz WiFi, and a GPS receiver supporting GPS, GLONASS, BeiDou, Galileo, and QZSS. Additional interfaces include USB 3.0, HDMI 2.0 with 4K video output, four analog inputs (AI), four digital inputs (DI), and two relay digital outputs (DO), allowing direct connection to sensors, actuators, and industrial control systems.

Linux and the pre-installed software environment simplify industrial application development while reducing deployment time for edge computing solutions.

Linux Ubuntu and Edge Computing environment

The computer runs Linux Ubuntu 20.04 with a graphical desktop environment and includes pre-installed Node-RED and Docker, simplifying the development of industrial automation and IoT applications. The platform supports local data processing, communication with MQTT servers, protocol conversion, and integration with Modbus, OPC UA, BACnet, and numerous PLC protocols. According to the manufacturer, the device supports edge data acquisition, local computing, and grouped data reporting directly on the gateway.


The extensive communication capabilities allow the device to operate as an industrial IoT gateway and a central controller for automation systems, integrating equipment across different industrial networks and communication protocols.

Features

  • Rockchip RK3568 quad-core ARM Cortex-A55 64-bit processor, up to 2.0 GHz
  • ARM G52 2EE GPU
  • 1 TOPS (INT8) AI NPU
  • Supports TensorFlow, TensorFlow Lite, ONNX, Caffe, MxNet, and Darknet
  • Linux Ubuntu 20.04 operating system
  • 4 GB DDR4 RAM
  • 32 GB eMMC storage
  • LTE Cat.4 modem (Global version)
  • 2.4 GHz WiFi IEEE 802.11 b/g/n
  • Dual 10/100 Mbps Ethernet ports
  • GPS, GLONASS, BeiDou, Galileo, and QZSS support
  • 2 × RS232
  • 2 × RS485
  • CAN interface
  • 4 × analog inputs (AI, 0–10 V / 4–20 mA)
  • 4 × digital inputs (DI)
  • 2 × relay digital outputs (DO)
  • HDMI 2.0 with 4K 60 Hz output
  • USB 3.0 Host
  • USB 3.0 OTG
  • Nano SIM slot
  • Node-RED and Docker pre-installed
  • Supports Modbus, OPC UA, BACnet, and PLC protocols
  • 12 V DC power supply
  • Operating temperature: -10°C to 70°C
  • Dimensions: 160 × 85 × 28 mm
