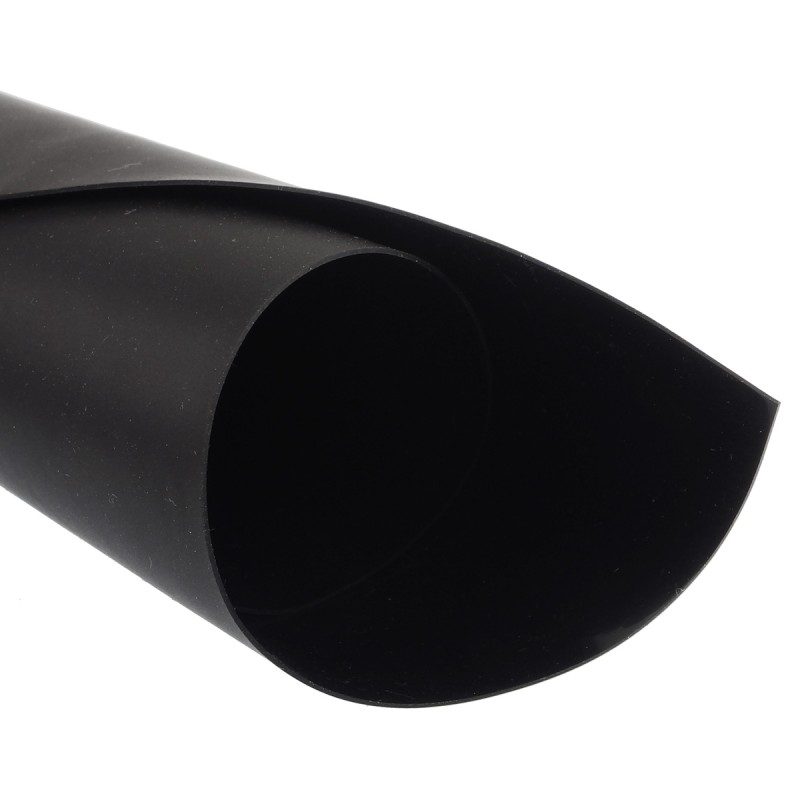

Conductive Rubber Sheet - 200x200x0.5mm stretching sensor
ID: 1180867
5906623431328
zł30.64
Tax included
zł24.91 tax excl.
A sheet of rubber with dimensions of 200x200 mm, changing its resistance during stretching. Adafruit 5464
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A sheet of rubber with dimensions of 200x200 mm, changing its resistance during stretching. In free state, it has a resistivity of about 50 Ω*mm. As the surface expands, the resistance increases, so we can be used as a sensor. When the force is released, the rubber contracts and returns to its original shape within approx. 1 to 2 minutes. Parameters may differ between sheets, therefore each piece may require individual calibration.
Features
- Free state resistivity: 50 Ω*mm
- Unloaded diagonal: 6"
- Diagonal when fully stretched: 10"
- Recovery time after stretching: 1 to 2 min
- Thickness: 0,5 mm
- Dimensions: 200 x 200 mm
- Weight: 22,6 g
1180867
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
