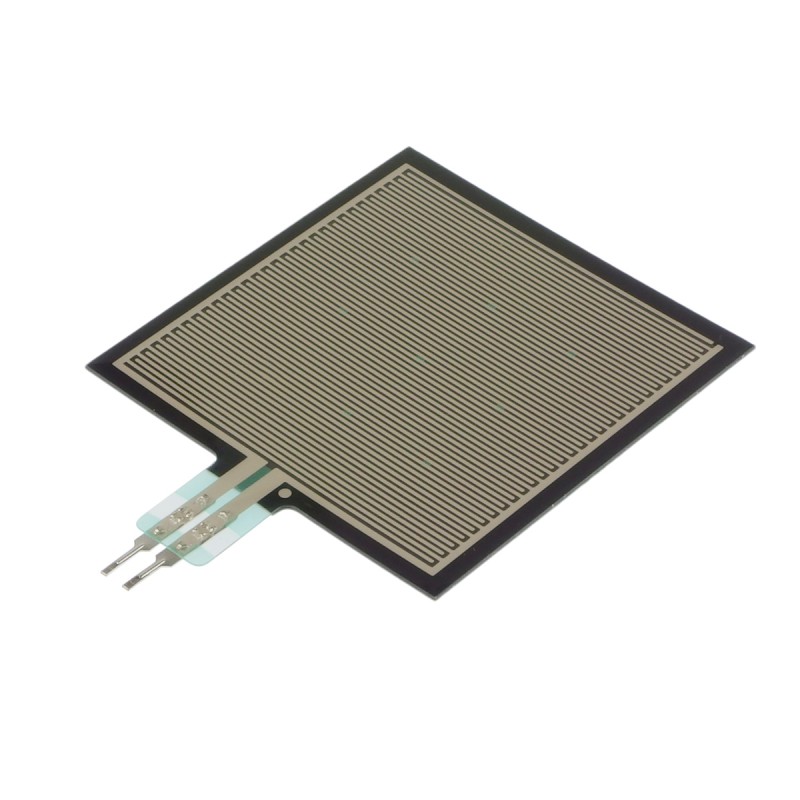

RP-S40-ST Thin Film Pressure Sensor - analog 40x40mm pressure sensor
ID: 574771
5906623406104
zł59.77
Tax included
zł48.59 tax excl.
Flexible pressure sensor with dimensions of 40 x 40 mm. Designed to detect static and dynamic pressure at high reaction speed. DFRobot SEN0296
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A flexible sensor with dimensions of 40 x 40 mm that can be used to detect small forces. It is designed to detect static and dynamic pressure with high reaction speed. It is made of a thin foil (0.45 mm) with excellent mechanical properties and conductive layers sensitive to nanometric pressure. The sensor works by recording the intensity and frequency of the force. As a result, it is widely used in all types of devices, such as pressure switch, monitoring system and medical devices. Full documentation is available on the product page.
Features
- Thickness: 0.45 mm
- Tripping force: 20 g, tripped (default resistance <200 kΩ)
- Pressure measurement range: 20 g to 10 kg
- Static and dynamic pressure measurement
- Initial resistance: ›10MΩ
- Activation time: ‹0.01 s
- Working temperature: -40 to 85 ℃
- Hysteresis: + 10%, (RF + -RF -) / FR +, force 1000g
- Response time: ‹10 ms
- Drift: ‹5% (2.5 kg force, 24h static load)
Sensor characteristics
