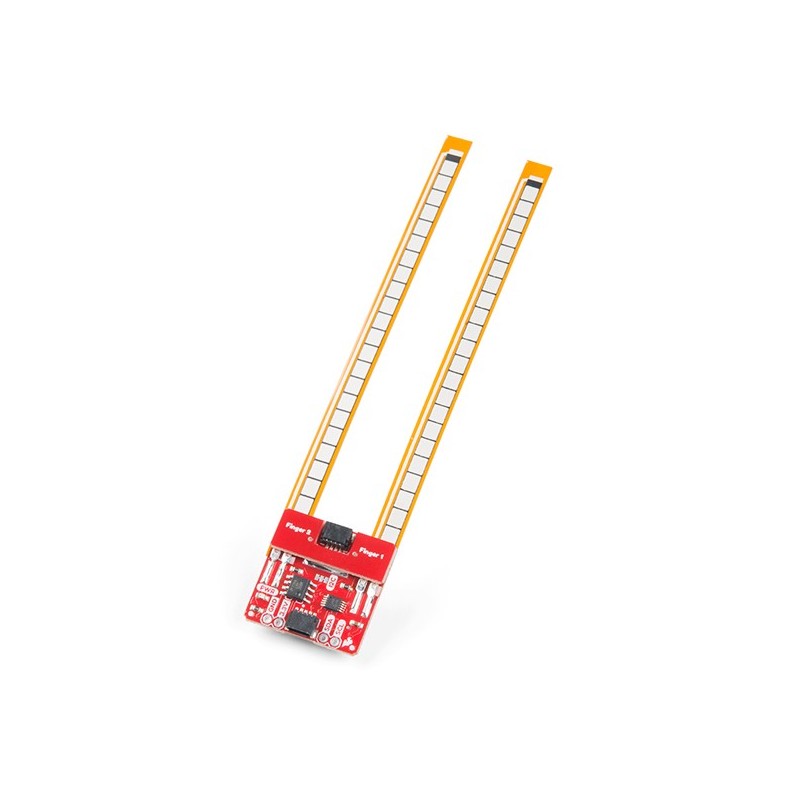

Qwiic Flex Glove Controller - module with a deflection sensor

Module with a deflection sensor with two measuring probes. The board houses the ADS1015 converter, which is an ADC converter with an output in the form of an I2C interface. SparkFun SEN-14666

More details

ID: 572229

56,82€ gross (23% VAT)
46,19€ net

Add to wishlist

More info

Description

Module with a deflection sensor with two measuring probes. The board has the ADS1015 converter, which is an ADC converter with an output in the form of an I2C interface, thanks to which the module can be easily connected to the microcontroller. The sensor output information changes with the bend angle, allowing angular displacement to be measured. The module was prepared with the intention of building your own interactive gloves, but it will also be used in other projects in such fields as robotics, medical devices or games. The module has two Qwiic connectors and two holes for sewing it to the fabric. Connection instructions and sample programs are available in the user manual.

Features

  • Resolution: 12 bits
  • Sampling frequency: 128 Hz to 3.3 kHz
  • I2C address: 0x48 (default), 0x49, 0x4A, 0x4B
  • 2x mounting holes
  • 2x Qwiic connectors
  • Voltage: 2.0 V to 5.5 V
  • Current consumption: 150 µA
  • Working temperature: -40°C to 125°C
