Gravity: Thin-film Pressure Sensor - pressure sensor module
ID: 1196957
5902186309111
zł22.53
Tax included
zł18.32 tax excl.
Educational module for measuring force in the range from 30 g to 1.5 kg, based on a flexible material that responds with a change in the analog signal. Thanks to its small thickness (0.4 mm), fast response and compatibility with Arduino, micro:bit and Unihiker, it is ideal for teaching physics, engineering and DIY projects. DFRobot SEN0616
Description

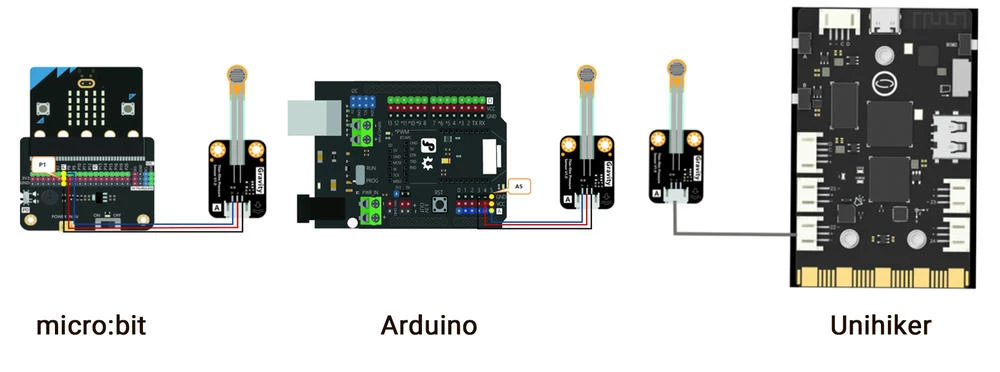

The Gravity: Thin-film Pressure Sensor is a user-friendly educational module that measures applied force through deformation of a flexible material. The greater the pressure, the higher the analog signal output, making it an intuitive tool for learning how pressure sensors work. With a detection range from 30 g to 1.5 kg, it's suitable for both educational use and DIY projects. Its plug-and-play design and compatibility with platforms like Arduino, micro:bit, and Unihiker make it ideal for schools and engineering courses.
Thanks to its ultra-thin design (just 0.4 mm thick), the sensor responds rapidly to pressure changes, making it perfect for real-time demonstrations. The manufacturer provides detailed user guides for the most popular educational platforms, significantly easing the learning curve for beginners. This is an excellent tool for visualizing concepts such as force, pressure, and load distribution, particularly in physics and introductory engineering classes.
Features
- Operating Voltage: 3.3 to 5V
- Detection Range: 30 g to 1.5 kg
- Output: Analog (higher pressure yields higher analog signal)
- Interface Type: PH2.0-3P
- Dimensions: 57.5 x 22 mm
- Weight: 2.9 g
Kit contains
- Gravity: Thin-film Pressure Sensor
- PH2.0-3P Connection Cable
1196957
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
