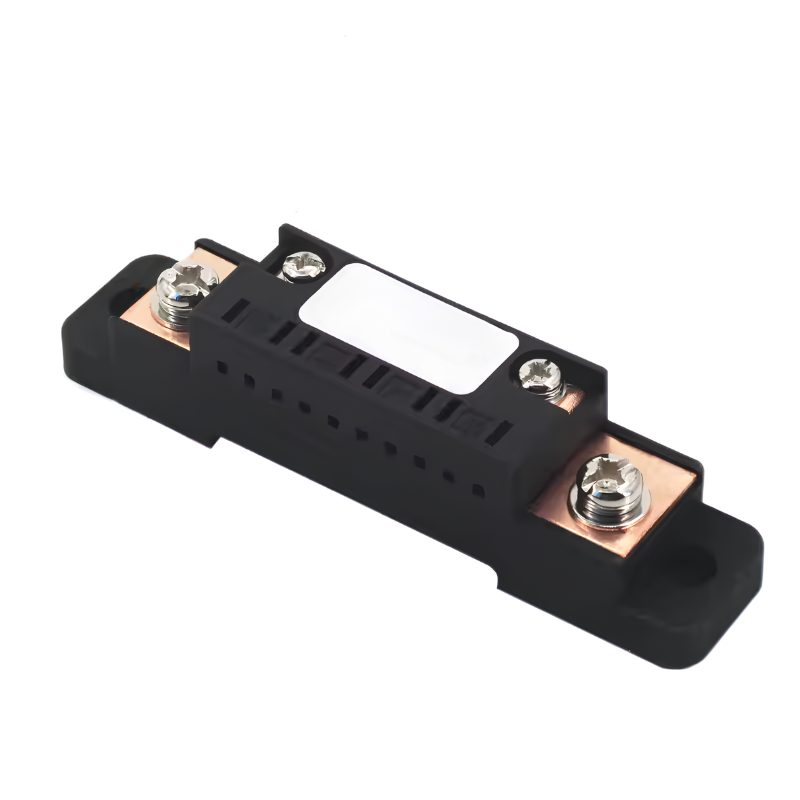

FL-2C 60A 75mV class 0.5 DC current shunt
ID: 1187389
zł13.65
Tax included
zł11.10 tax excl.
FL-2C current shunt rated for 60A with a 75mV voltage drop, designed for DC current measurement with a 75mV millivoltmeter. Accuracy class 0.5 and 120% overload capability for 2 hours. CG FL-2C-60A
Description
The device FL-2C-60A is designed for measuring high DC currents. At the rated current of 60A, the voltage drop across the shunt is 75mV, allowing it to operate with a 75mV magnetoelectric millivoltmeter and extend the measuring range of an ammeter. The product features an accuracy class of 0.5.
The shunt is made of copper and a copper-manganese alloy, while its outer housing is resistant to high temperatures and made of flame-retardant material. The design provides efficient heat dissipation, a low temperature drift coefficient, stable operation under long-term load and resistance to vibration and shock.
The shunt can operate at ambient temperatures from -40 to 60°C and at relative humidity up to 95% at 35°C. The permissible overload is 120% of the rated current for 2 hours. Since the 60A version belongs to variants with a rated current above 50A, the temperature rise under load is limited to a maximum of 120°C.
Features
- Type: DC current shunt
- Series: FL-2C
- Manufacturer: CG
- Rated current: 60A
- Voltage drop at rated current: 75mV
- Accuracy class: 0.5
- Overload capacity: 120% of rated current for 2 hours
- Operating temperature: -40 to 60°C
- Relative humidity: ≤95% at 35°C
- Temperature rise under load: ≤120°C
- Application: DC current measurement with a 75mV millivoltmeter
- Resistance to vibration and shock
- High-temperature resistant, flame-retardant housing
- Model: FL-2C-60A
