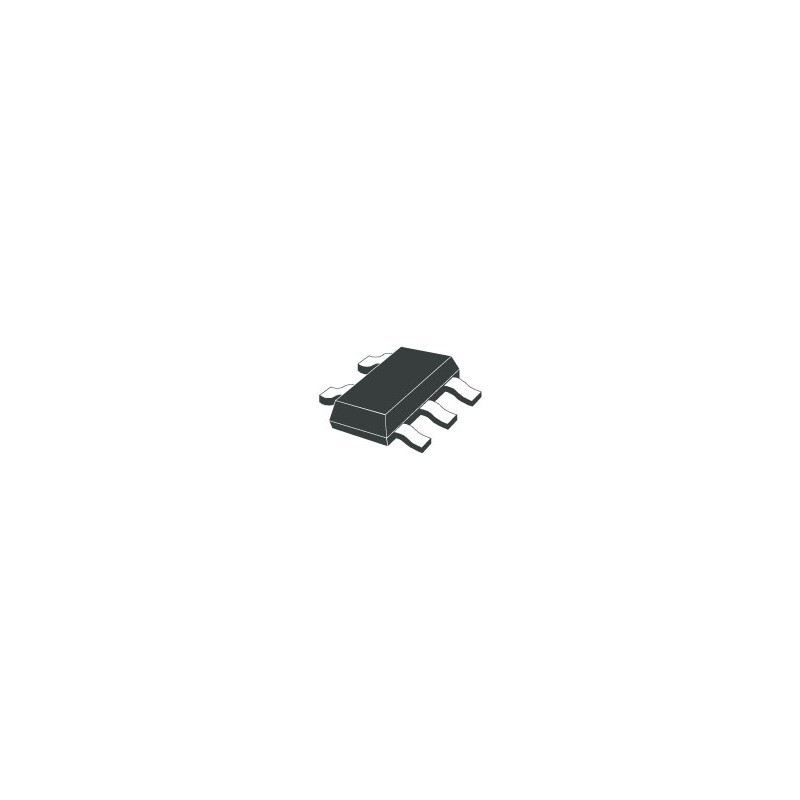

74AHC1G14GV – Schmitt Trigger Inverter AHC SOT-23
search
  • 74AHC1G14GV – Schmitt Trigger Inverter AHC SOT-23
ID: 1207825
5902186329188
zł1.89
Tax included

zł1.54 tax excl.

Single-channel Schmitt trigger inverter from the AHC logic family, designed for operation in a wide supply voltage range of 2.0–5.5 V. The SOT-23 package enables compact SMD mounting in digital designs.

4 weeks
Awaiting delivery

Description

The 74AHC1G14GV is a single NOT gate with a Schmitt trigger input, providing improved signal integrity through voltage hysteresis. The device is intended for applications requiring noise suppression, signal shaping of slow-rising edges, and conversion of analog or noisy signals into stable digital logic levels.The AHC (Advanced High-Speed CMOS) family supports a supply voltage range from 2.0 V to 5.5 V, enabling integration with both 3.3 V and 5 V systems. Low input capacitance and fast propagation delay allow the device to be used in higher-frequency signal paths.The Schmitt trigger input increases noise immunity and prevents multiple switching events when processing slow or noisy input signals.

Features

  • Model: 74AHC1G14GV
  • Type: Schmitt trigger inverter
  • Number of gates: 1
  • Logic function: NOT
  • Technology: AHC CMOS
  • Supply voltage range (VCC): 2.0 – 5.5 V
  • Output current: ±8 mA (typ.)
  • Propagation delay: few nanoseconds (depending on VCC)
  • Schmitt trigger input: Yes
  • Package: SOT-23 (SMD)
  •   Operating temperature range: - 40°C – +125°C (depending on manufacturer)

1207825
