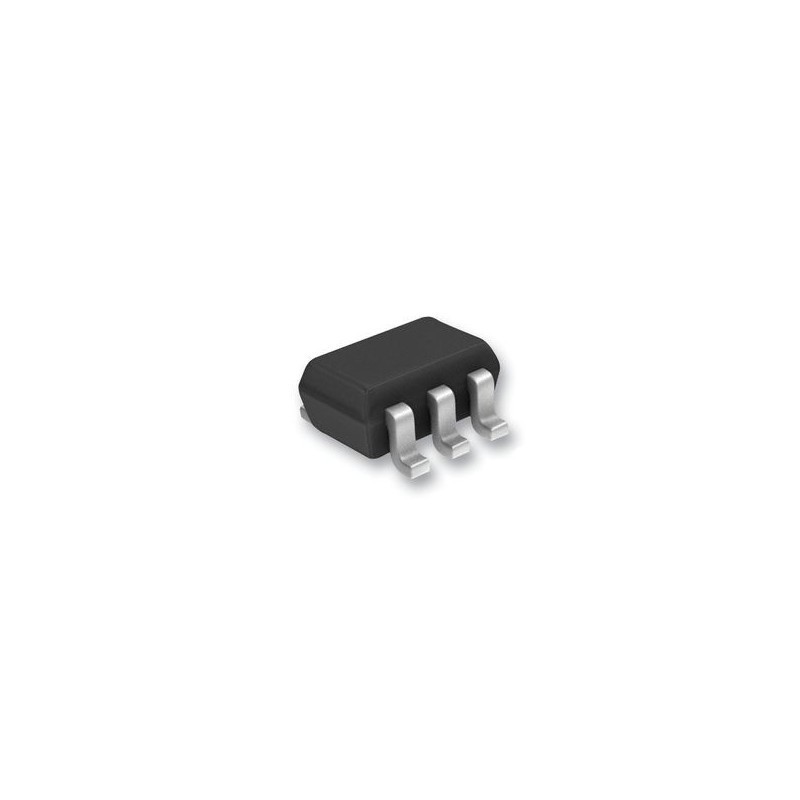

74LVC1G04GW.125
search
  • 74LVC1G04GW.125
ID: 1207827
5902186322530
zł2.90
Tax included

zł2.36 tax excl.

74LVC1G04GW is a single-channel CMOS/TTL logic inverter with low power consumption and a wide operating voltage range, ideal for embedded, portable, and digital applications requiring compact and energy-efficient solutions.

4 weeks
Awaiting delivery

Description

Single-channel inverter (NOT gate) from the LVC family, built using CMOS technology with TTL logic level compatibility. It operates over a wide supply voltage range from 1.65 V to 5.5 V, making it a versatile solution for digital systems with varying voltage levels. The device features a fast switching time (5 ns) and ultra-low quiescent current (100 nA), making it ideal for energy-efficient embedded applications. Supplied in a compact TSSOP‑5 (SOT‑753) surface-mount package, it is well-suited for space-constrained designs.

Features

  • Function: NOT gate (inverter)
  • Number of channels: 1
  • Logic family: LVC
  • Logic type: CMOS, TTL-compatible
  • Supply voltage: 1.65 V to 5.5 V
  • Output current: ±32 mA
  • Propagation delay: 5 ns
  • Quiescent current: 100 nA
  • Mounting style: SMD/SMT
  • Package: TSSOP‑5 (SOT‑753)
  • Operating temperature: –40 °C to +125 °C
  • RoHS compliant
