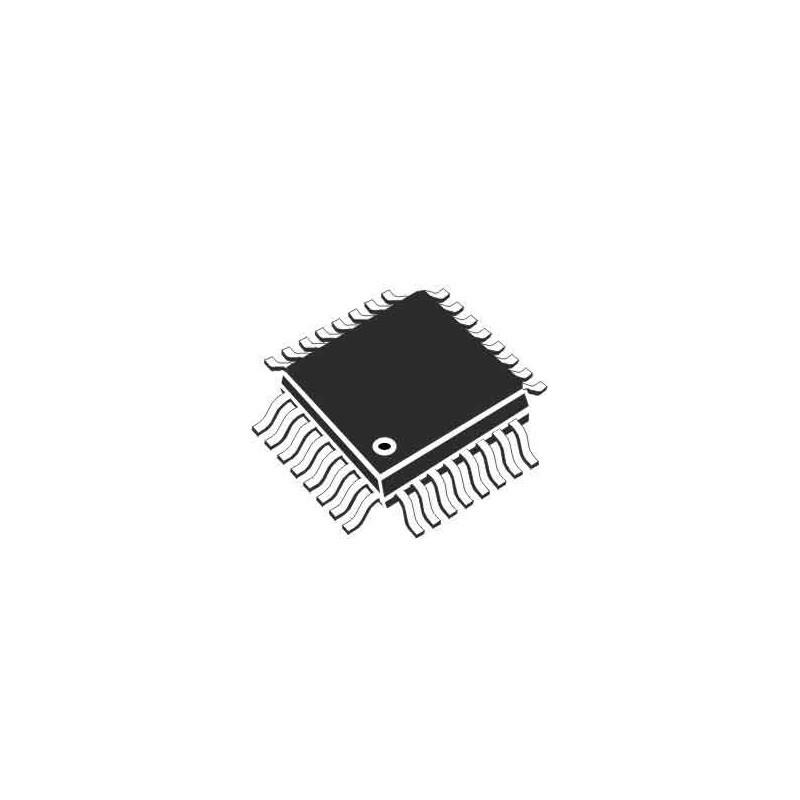

5M80ZE64C5N is a low-power CPLD from the MAX V series, featuring 80 logic elements, 64 macrocells, and 54 I/O pins, designed to implement complex logic functions in compact embedded applications. Flash-based technology enables non-volatile configuration, while the QFP‑64 package ensures compatibility with standard SMT processes.

24h
Available
Available quantity: 224

Description

Programmable logic device (CPLD) from the MAX V series, offering 80 logic elements and 64 macrocells. It features 54 I/O pins and operates at a typical supply voltage of 1.8 V. Flash memory technology enables non-volatile configuration, eliminating the need for an external configuration device. With a maximum operating frequency of 152 MHz and a propagation delay of up to 7.5 ns, the device is well-suited for low-power digital applications. It is housed in a QFP‑64 package for surface-mount assembly.

Features

  • Type: CPLD (Complex Programmable Logic Device)
  • Series: MAX V
  • Logic elements: 80
  • Macrocells: 64
  • I/O pins: 54
  • Logic array blocks (LABs): 8
  • Memory: 8192 bits (Flash)
  • Operating frequency: up to 152 MHz
  • Maximum propagation delay: 7.5 ns
  • Supply voltage: 1.71 V to 1.89 V (typ. 1.8 V)
  • Supply current: 25 μA (typ.)
  • Mounting style: SMD/SMT
  • Package: QFP‑64
  • Operating temperature: 0 °C to +70 °C
  • RoHS compliant
