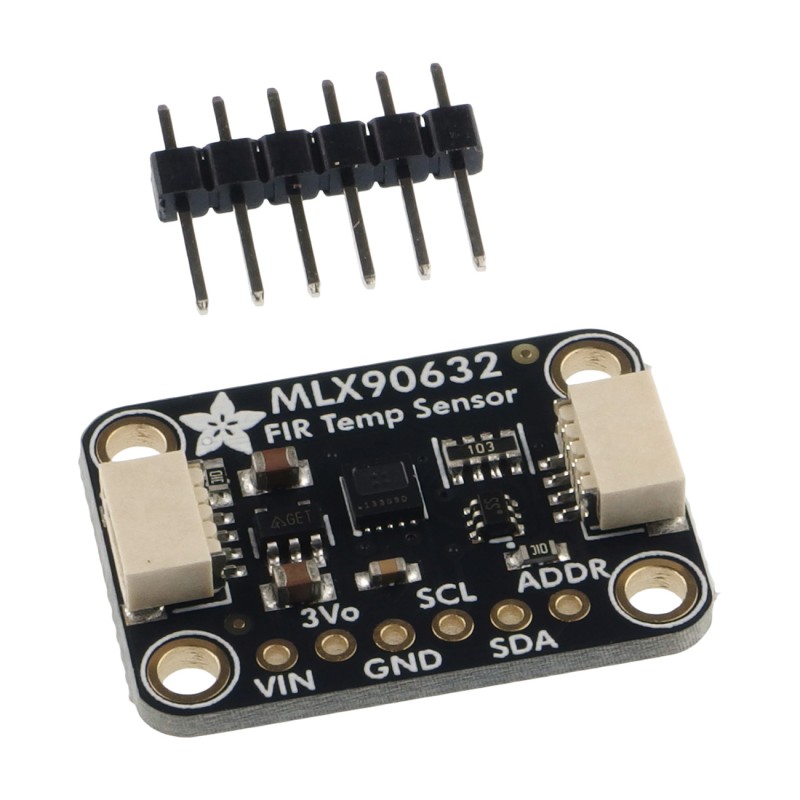

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1202601
5902186334076
zł84.48
Tax included

zł68.68 tax excl.

A compact FIR temperature sensor enabling high-precision, non-contact measurement of objects. The medical version offers an accuracy of ±0.2°C over a range of 35 to 42°C, and in extended mode, it measures temperatures from -20°C to 100°C. The sensor communicates via I2C and is mounted on a STEMMA QT board with an integrated voltage regulator for easy integration with 3V and 5V microcontrollers. Adafruit 6403

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Adafruit MLX90632 is a compact, high-precision FIR infrared temperature sensor designed for non-contact measurements. It can measure the temperature of hot or cold objects without physical contact. The MLX90632SLD-DCB medical version comes factory-calibrated, offering an accuracy of ±0.2°C within 35–42°C, making it ideal for medical applications. In extended mode, it can measure temperatures from -20°C to 100°C while also monitoring the sensor’s own temperature. The sensor has a 50° field of view (FOV), optimal for measurements at close range.

The MLX90632 uses a I2C interface for easy integration with microcontrollers and single-board computers. The module is mounted on a STEMMA QT PCB, compatible with SparkFun Qwiic connectors, allowing quick connections and daisy-chaining with other sensors. A built-in voltage regulator and logic level conversion enable operation with both 3 V and 5 V systems. This makes the MLX90632 easy to use with Arduino, Raspberry Pi, and similar platforms. It is ideal for medical devices, educational projects, IoT applications, temperature monitoring systems, and anywhere fast and accurate non-contact temperature measurement is required.

Features

  • Sensor type: FIR infrared, non-contact temperature measurement
  • Medical version: MLX90632SLD-DCB, factory calibrated
  • Medical measurement accuracy: ±0.2°C (35–42°C)
  • Extended measurement range: -20°C to 100°C
  • Sensor temperature measurement
  • Field of view (FOV): 50°
  • Standard resolution: 0.02°C
  • Medical resolution: 0.01°C
  • Power supply: 3.3 V, operating current 1 mA, standby current <2.5 µA
  • Interface: Digital I2C, configurable I2C address via external pin
  • Default refresh rate: 0.5 s (configurable 16 ms – 2 s)
  • Post-measurement calibration option
  • Module format: STEMMA QT / Qwiic, ready for solderless connection
  • Integrated voltage regulator and logic level conversion
  • Dimensions: 25.5 × 17.7 × 4.7 mm
  • Weight: 1.7 g

Kit contains

  • Adafruit MLX90632 FIR Temperature Sensor Module
  • Pin header
1202601

Data sheet

Interface
SPI/I2C
Type of sensor
MLX90632
Power supply voltage
3 - 5 V
Sensor type
Temperatury
