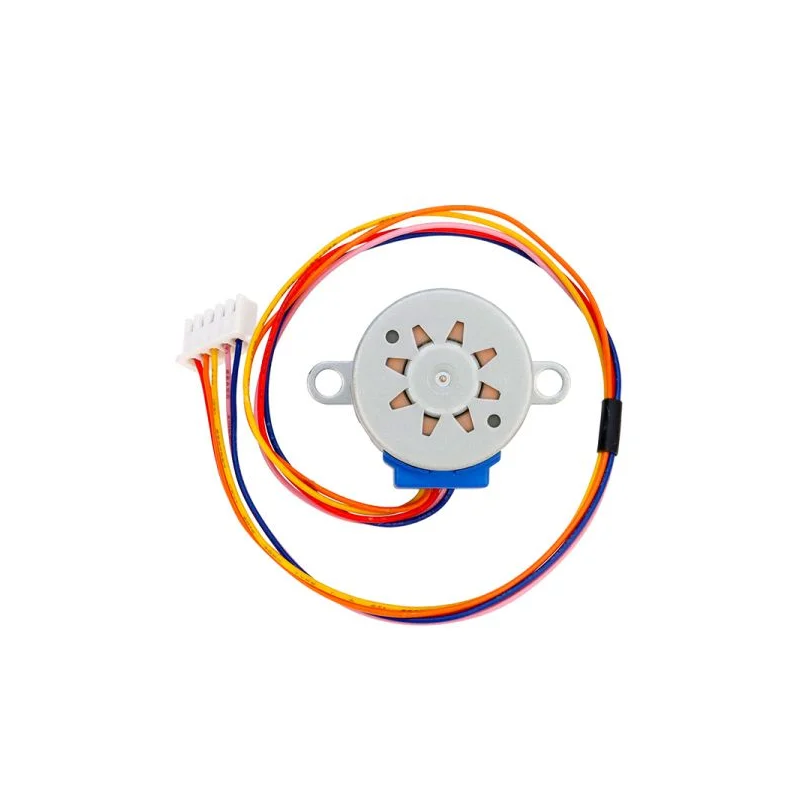

28BYJ-48 12V Stepper Motor with 1:64 Gearbox - Elecrow
ID: 1207030
zł9.98
Tax included
zł8.11 tax excl.
28BYJ-48 stepper motor powered by 12 V DC and equipped with a 1:64 reduction gearbox. The motor provides a step angle of 5.625° before gear reduction and an in-traction torque exceeding 34.3 mN·m at 120 Hz. It can be used in small mechanisms requiring controlled rotary motion. Elecrow 28BYJ-48
Description
A stepper motor with a 1:64 reduction gearbox - Elecrow 28BYJ-48 is designed for systems requiring controlled rotary motion with a 12 V DC power supply. The construction uses four poles and a reduction gearbox, while the manufacturer specifies the step angle as 5.625° x 1/64. The motor can be used in air conditioner louver mechanisms, small cooling and heating fans, and other mechanisms requiring positioning.
Dynamic parameters include an idle in-traction frequency above 600 Hz and an idle out-traction frequency above 1000 Hz. The in-traction torque at 120 Hz exceeds 34.3 mN·m, as does the specified self-positioning torque. According to the manufacturer's specification, the DC resistance of the winding is 200 Ω.
The winding insulation provides a resistance above 10 MΩ at 500 V. The manufacturer also specifies an insulation withstand voltage of 600 V AC / 1 mA / 1 s. The motor parameters comply with the SJ/T10689-95 electronic standard specified by the manufacturer.
Features
- Manufacturer: Elecrow
- Model: 28BYJ-48
- Type: geared stepper motor
- Rated voltage: 12 V DC
- Number of poles: 4
- Gear reduction ratio: 1:64
- Step angle: 5.625° x 1/64
- DC resistance: 200 Ω
- Idle in-traction frequency: >600 Hz
- Idle out-traction frequency: >1000 Hz
- In-traction torque: >34.3 mN·m at 120 Hz
- Self-positioning torque: >34.3 mN·m
- Insulation resistance: >10 MΩ at 500 V
- Insulation withstand voltage: 600 V AC / 1 mA / 1 s
1207030
Data sheet
- Shaft diameter
- Inna
- Resolution
- 4096 steps/rev
- Torque
- 350 g-cm
- Coil resistance
- 200 Ω
- Coil current
- Other
- Inductance of the coil
- Other
- Voltage
- 12 V
- Weight
- Other
