A switching converter that stabilizes a 5V input voltage from 2.6V to 20V. It offers high efficiency of 70-95% and the ability to operate with a continuous input current of up to 900mA and a peak current limit of 2.2A. With a switching frequency of 1.6MHz and a power-saving mode, it is suitable for both high-performance and low-power applications. Pololu 5581

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

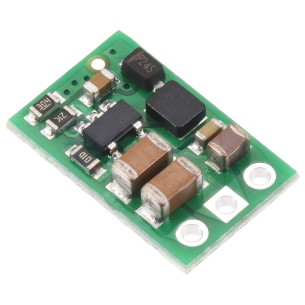

A compact and efficient step-up voltage regulator that provides a stable 5 V output voltage. The device belongs to the U3V9Fx family of regulators and operates in switching power supply (SMPS) technology, which allows for typical efficiency in the 70–95% range. With a switching frequency of about 1.6 MHz under heavy load and a power-saving mode at lower currents, the regulator offers high application flexibility. The system can limit peak input current to 2.2 A, and under typical conditions it can operate stably with continuous input current up to 900 mA. This makes it an excellent choice for applications that require a stable 5 V supply from low-voltage sources such as Li-Ion batteries, cells, or other mobile power supplies.

The VIN input requires a voltage of at least 2.6 V and not exceeding 20 V, with values above 5 V being passed directly to the output. This may pose a risk to the connected circuit if it is not designed to handle voltages higher than 5 V. The VOUT output provides a regulated 5 V, and the soft-start function gradually raises it, reducing inrush current.

The small size of the module makes it suitable both for prototyping and integration into space-constrained projects. The regulator is equipped with several protections, including over-temperature shutdown, peak current limiting, and soft-start functionality, which increase its reliability and safe operation. However, it does not include short-circuit protection or reverse polarity protection, so in some applications it is recommended to use additional protective modules. Thanks to its simplicity, high efficiency, and versatility, it is well-suited for use in IoT power systems, portable electronics, robotics, and consumer devices.

Features

  • Output voltage: 5 V ±4%
  • Input voltage range: 2.6 V to 20 V
  • Typical efficiency: 70–90% (depending on operating conditions)
  • Switching frequency: approx. 1.6 MHz under heavy load
  • Power-saving mode at light load
  • No-load current consumption: below 0.2 mA
  • Switch current limit: 2.2 A
  • Typical continuous input current: up to approx. 900 mA
  • Protections: over-temperature shutdown, soft start, peak current limiting
  • No short-circuit or reverse polarity protection
1200170

Data sheet

Output voltage
5th
Output current
900 mA
Converter type
Step-up
Supply voltage min
2,5 V
Supply voltages max
20 V
