DC-DC Step-Up converter module 5V 0.48A
ID: 585134
5906623462285
zł4.08
Tax included
zł3.32 tax excl.
Step-Up converter with an output voltage of 5 V, an input voltage of 0.9 to 5 V and a maximum current of 0.48 A
Description

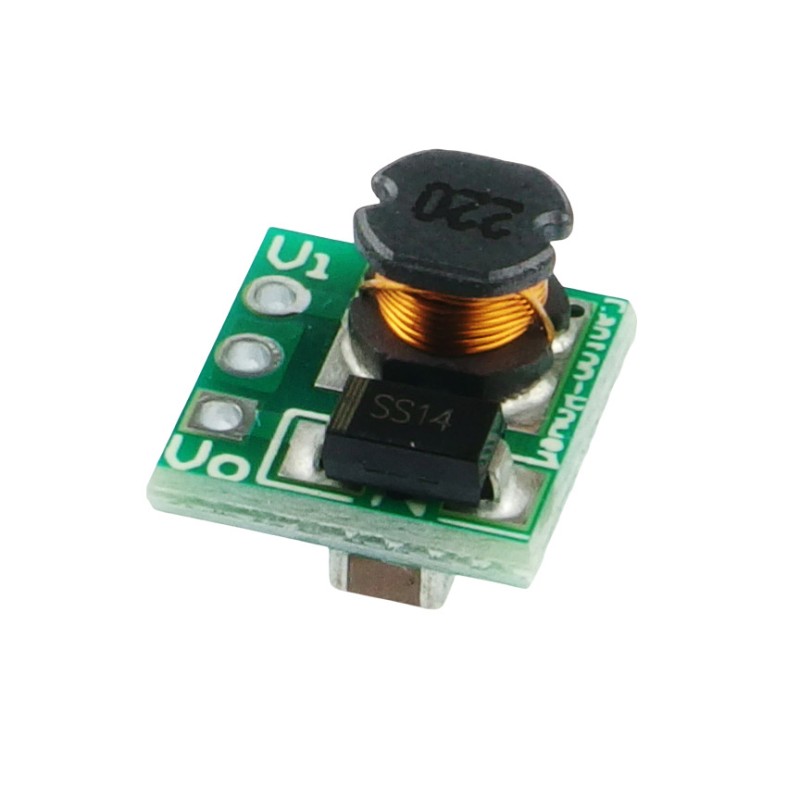

Step-Up converter module with an output voltage of 5 V and an input voltage from 0.9 to 5 V. The maximum current load of the module is up to 0.48 A.
Features
- Input voltage: 0.9 to 5V
- Output voltage: 5V
- Type. maximum current: up to 0.48 A
- Working frequency: 150 kHz
- Conversion efficiency: up to 85%
- Outputs with 2.54 mm raster
- Dimensions: 11 x 10.5 x 7.5 mm
585134
Data sheet
- Output voltage
- 5th
- Output current
- 0,48 A
- Converter type
- Step-up
- Supply voltage min
- 0,9 V
- Supply voltages max
- 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
