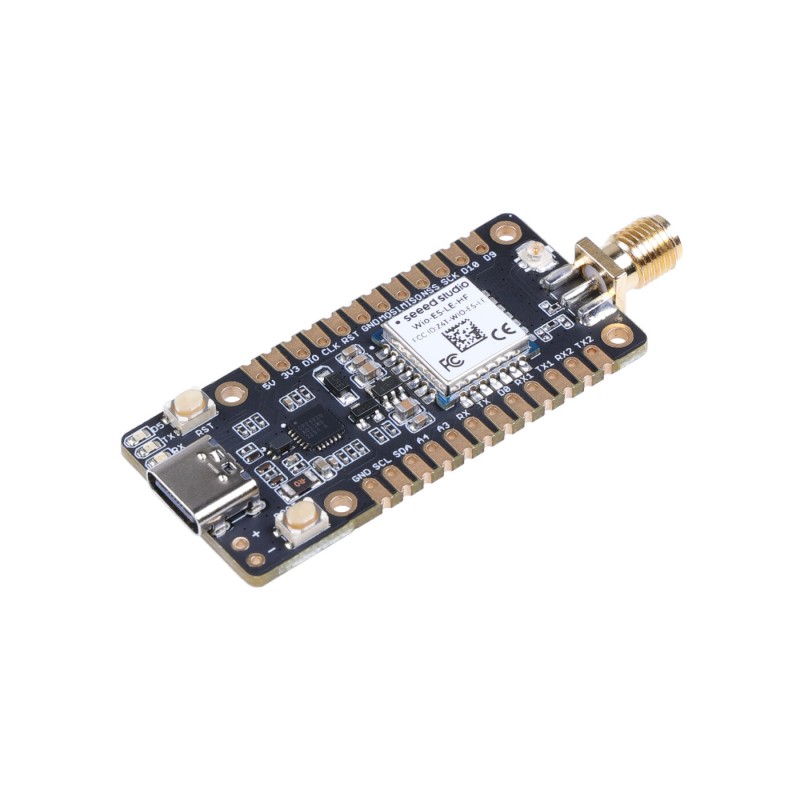

Wio-E5-LE mini Dev Board – development board with the STM32WLE5JC module and LoRaWAN EU868/US915 - Seeed Studio 113991156
ID: 1200506
zł109.25
Tax included
zł88.82 tax excl.
Wio-E5-LE mini Dev Board Seeed Studio 113991156 is a development board with the STM32WLE5JC module and built-in LoRaWAN support in the EU868/US915 bands, intended for creating energy-efficient IoT applications with long transmission range. It is suitable for prototyping environmental sensors, smart city systems, and precision agriculture solutions.
Description
The Wio-E5-LE mini development board provides access to all GPIO lines of the integrated Wio-E5-LE wireless module, equipped with the STM32WLE5JC microcontroller with an ARM Cortex-M4 core and SX126x transceiver. It supports long-range transmission in the EU868 and US915 bands using the LoRa protocol and (G)FSK, (G)MSK, and BPSK modulation. The transmission range reaches up to 10 km in open conditions, and the standby current is 2.1 µA in WOR mode.

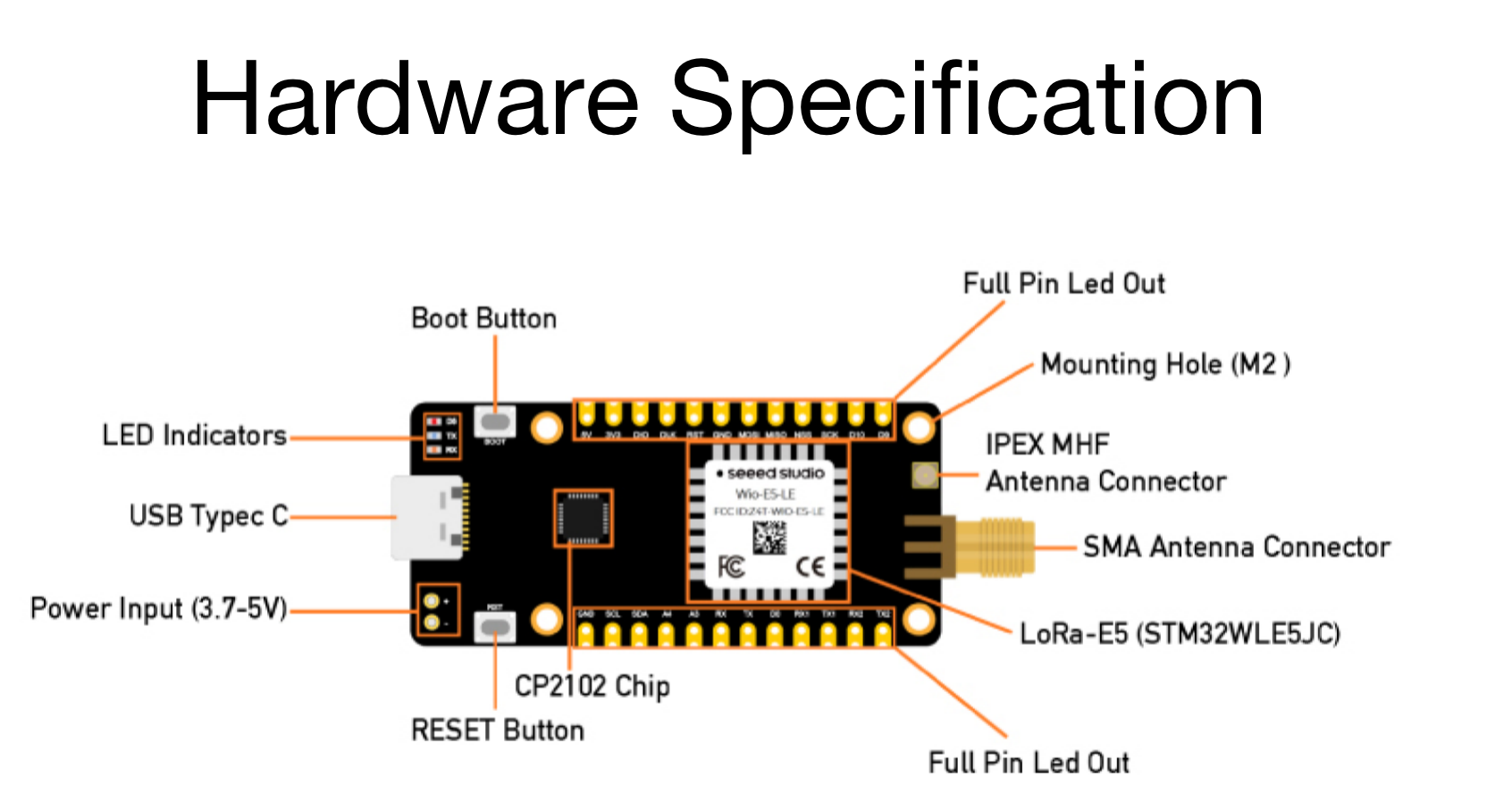

The board is equipped with a USB Type-C connector with a UART converter, RESET and BOOT buttons, and a full set of communication interface pins such as UART, SPI, I2C, and ADC. Thanks to the built-in firmware with AT commands and the possibility of programming through the STM32CubeProgrammer SDK, the board enables quick prototyping of battery-powered IoT network nodes used in precision agriculture, environmental monitoring systems, and industrial automation.
Properties
- Microcontroller STM32WLE5JC with ARM Cortex-M4 core
- SX126x transceiver with support for LoRa, (G)FSK, (G)MSK, BPSK
- Support for EU868 and US915 frequencies
- Maximum transmit power up to +20.8 dBm at 3.3 V supply
- Receiver sensitivity up to -136.5 dBm (SF12, 125 kHz)
- Link budget 158 dB
- Standby current 2.1 µA (WOR mode)

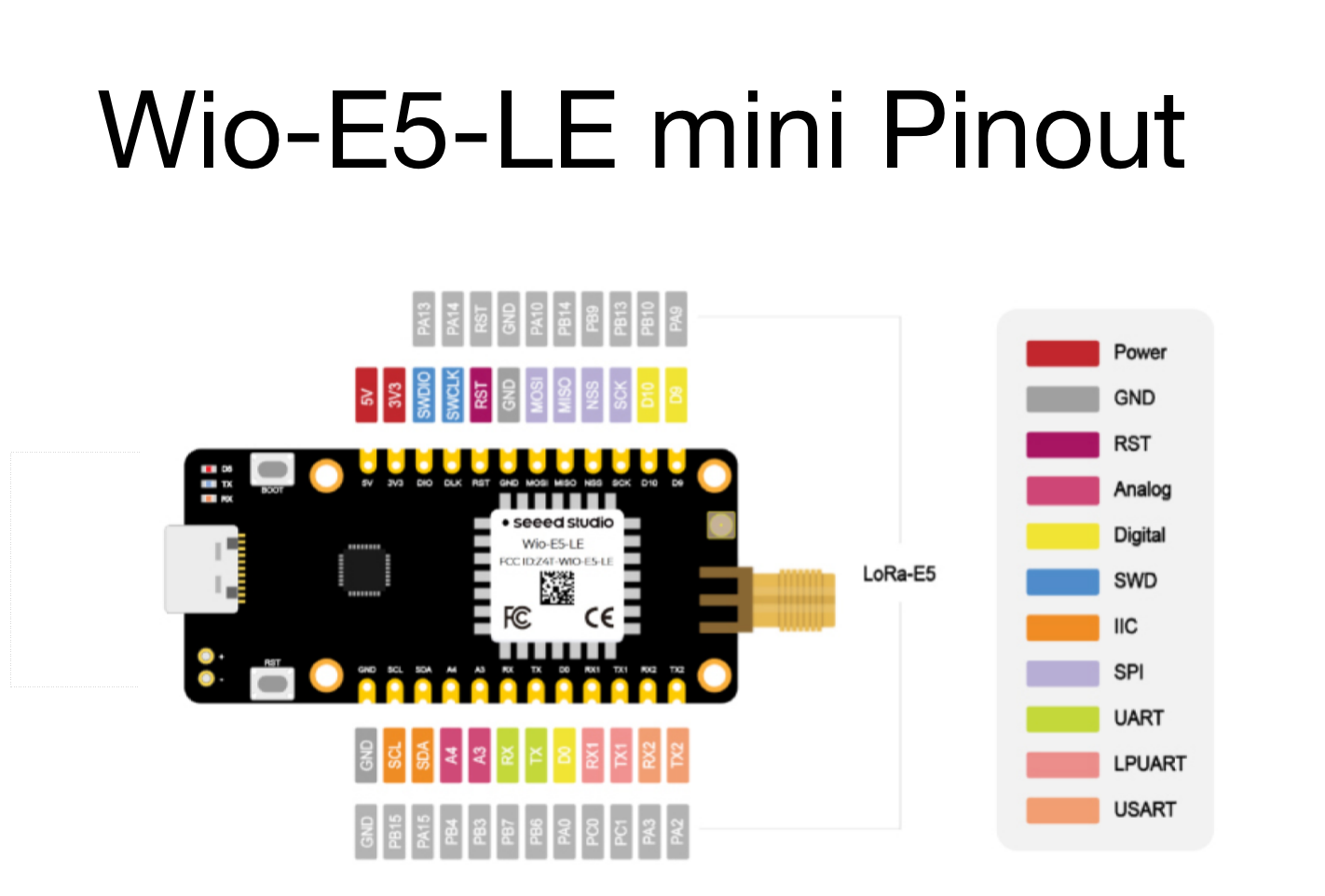

- Interfaces: UART, SPI, I2C, ADC, GPIO
- Connectors: USB Type-C, SMA-K, IPEX, 2× 12-pin headers
- Supply voltage range: 3.7–5 V
- Operating temperature: from -40°C to +85°C
- Certificates: CE, FCC
Included in the set
- Wio-E5-LE mini board
- EU868/US915 antenna
- USB Type-C cable (20 cm)
- Sticker
- 2× 1×12-pin header strips
