- New

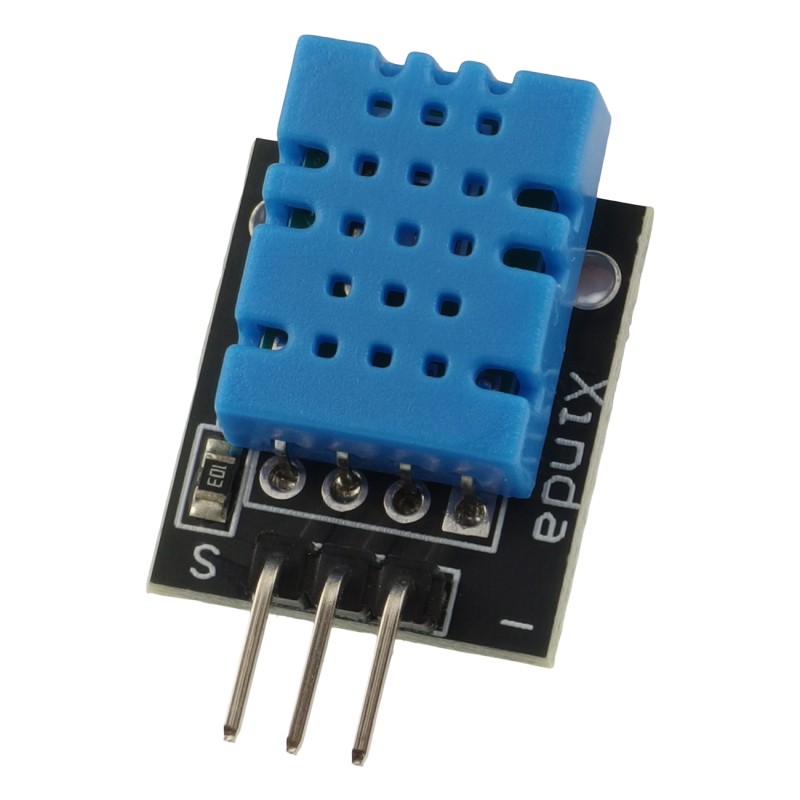

Iduino SE052 – Temperature and humidity sensor module with DHT11
ID: 1193811
5902186328754
zł11.89
Tax included
zł9.67 tax excl.
The Iduino SE052 module with a DHT11 sensor enables easy integration with microcontrollers for measuring temperature and humidity. Ideal for weather stations, data loggers, and home automation, it offers stable and long-term performance across a wide range of applications.
Description
The Iduino SE052 module with a digital DHT11 sensor is designed for measuring air temperature and humidity. Integrated with passive components (resistor and filter capacitor), it allows direct connection to a microcontroller, such as Arduino or STM32, without the need for additional components. The sensor communicates via a digital output (DOUT), and its supply voltage ranges from 3.3 V to 5.5 V. Thanks to the standard 2.54 mm goldpin connector, it can be mounted both with wires and on breadboards. The device is suitable for weather stations, HVAC systems, humidity controllers, and educational projects.
Properties
- Temperature measurement range: 0°C to 50°C
- Temperature resolution: 8-bit (1°C)
- Temperature accuracy: ±2°C
- Humidity measurement range: 20% – 90% RH
- Humidity resolution: 8-bit (±1% RH)
- Humidity accuracy: ±5% RH (at 25°C)
- Response time: 6 – 30 s (typically 10 s)
- Supply voltage: 3.3 V – 5.5 V
- Output: digital (DOUT)
- Connectors: 2.54 mm goldpin
- Included: 3-wire female-to-female cable
- Additional features: two mounting holes
- Compatibility: Arduino, STM32
1193811
Data sheet
- Interface
- Sygnał cyfrowy
- Type of sensor
- DHT11
- Power supply voltage
- 3,3 - 5,5 V
- Sensor type
- Temperature and humidity
