RS485 Multi-Depth Sensor for Soil Moisture, Temperature, and EC Measurement - Seeed Studio 101990982
ID: 1200501
5902186318229
zł1,722.34
Tax included
zł1,400.28 tax excl.
Seeed Studio 101990982 is a professional RS485 soil sensor that enables simultaneous measurement of moisture, temperature, and electrical conductivity at four different depths. With its robust design and IP68 protection, it is suitable for long-term applications in agriculture, greenhouses, and environmental monitoring, providing reliable data for irrigation and crop optimization.
Description
Industrial IP68 soil monitoring sensor measuring moisture, temperature, and electrical conductivity (EC) at four depths: 10 cm, 20 cm, 30 cm, and 40 cm. With high precision and resistance to soil salinity, it is suitable for agriculture, greenhouses, and scientific research. Compliance with the MODBUS-RTU RS485 protocol allows easy integration with data loggers such as the SenseCAP Sensor Hub 4G, enabling remote data reading and analysis. The high-quality plastic housing provides IP68 protection and corrosion resistance.
Properties
- Measurement of soil moisture, temperature, and electrical conductivity (EC) at 4 depths: 10 cm, 20 cm, 30 cm, 40 cm
- Soil temperature range: -30～70℃, accuracy ±0.5℃, resolution 0.1℃
- Moisture range: 0～70%, accuracy ±3%, resolution 0.1%
- Conductivity (EC) range: 0～5000 μs/cm (expandable to 20000 μs/cm), accuracy ±10%, resolution 10 μs/cm
- Interface: RS485, MODBUS-RTU protocol
- Power supply: 12–24 V DC, current consumption 40 mA (12 V) / 20 mA (24 V)
- Response time <100 ms, startup time 10 s
- Protection rating: IP68, corrosion resistant
- Operating temperature: -10℃～55℃
- Cable length: 10 m
- Weight: 1505 g
Set includes
- 1 × RS485 multi-depth sensor (moisture, temperature, EC)
- 1 × 10 m waterproof cable
1200501
Data sheet
- Interface
- RS485
- Type of sensor
- inny
- Power supply voltage
- 12/24V DC
- Sensor type
- Temperature and humidity
Other products in the same category (16)
This soil moisture sensor uses a resistive measurement between two gold-plated probes. Corrosion resistance ensures long life and stable measurements. It works with the micro:bit and Arduino platforms, allowing for reading soil moisture levels as an analog signal. Adafruit 6362
zł15.14
24h
Available quantity: 5
Available
The FC-28 sensor is used in automatic irrigation systems, IoT projects, and educational experiments involving soil moisture measurement. It enables accurate monitoring of crop conditions and optimizes water consumption
zł2.90
24h
Available quantity: 44
Available
A simple and practical soil moisture sensor designed to work with the BBC micro:bit. Using conductive probes inserted into the ground, the module measures moisture levels and generates an analog signal read by the micro:bit. Powered by 3V, it ensures easy and reliable integration, and when combined with the Mi:Power board, it can also trigger an audible alarm when the soil is dry. Kitronik 5647
zł19.34
24h
Available quantity: 2
Available
Earth humidity sensor with analogue output, supplied with 3.3 to 5.5 V voltage with Gravity connector. DFRobot SEN0193
zł27.53
24h
Available quantity: 1
Available
Soil moisture sensor based on soil resistivity meansurement
zł12.28
24h
Available quantity: 6
Available
Soil moisture sensor with I2C interface. The probe has two pointed tabs, making it easy to insert into the ground. The sensor is supplied with the voltage of 3.3 V or 5 V. SparkFun SEN-17731
zł104.43
24h
Available quantity: 1
Available
Kit for controlling soil moisture of cultivated plants. It contains the HAT Mini module and soil moisture sensors. Pimoroni PIM510
zł183.76
4 weeks
No product available!
Capacitive soil moisture sensor with analog output. The board is equipped with a Grove connector and communicates via a analog interface. Seeed Studio 101020614
zł30.65
4 weeks
No product available!
Soil moisture sensor dedicated to micro:bit. It is supplied with the voltage from 3.3 V to 5 V and communicates via an analog signal. SparkFun SEN-15272
zł48.84
24h
Available quantity: 3
Available
A robust sensor for approximate measurement of nitrogen, phosphorus and potassium (NPK) levels in soil, ideal for precision farming and field applications. With a rugged design (IP68), RS485 MODBUS-RTU communication and a wide power supply range, it allows easy integration with Arduino-type systems and operation in harsh environmental conditions. DFRobot SEN0605
zł391.84
4 weeks
No product available!

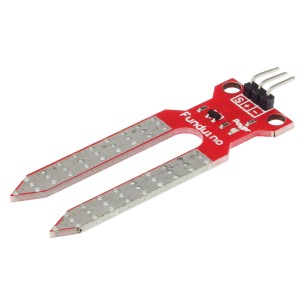

The soil moisture sensor with comparator LM393 has an analogue and digital output (with adjustable switching threshold). modHUM
