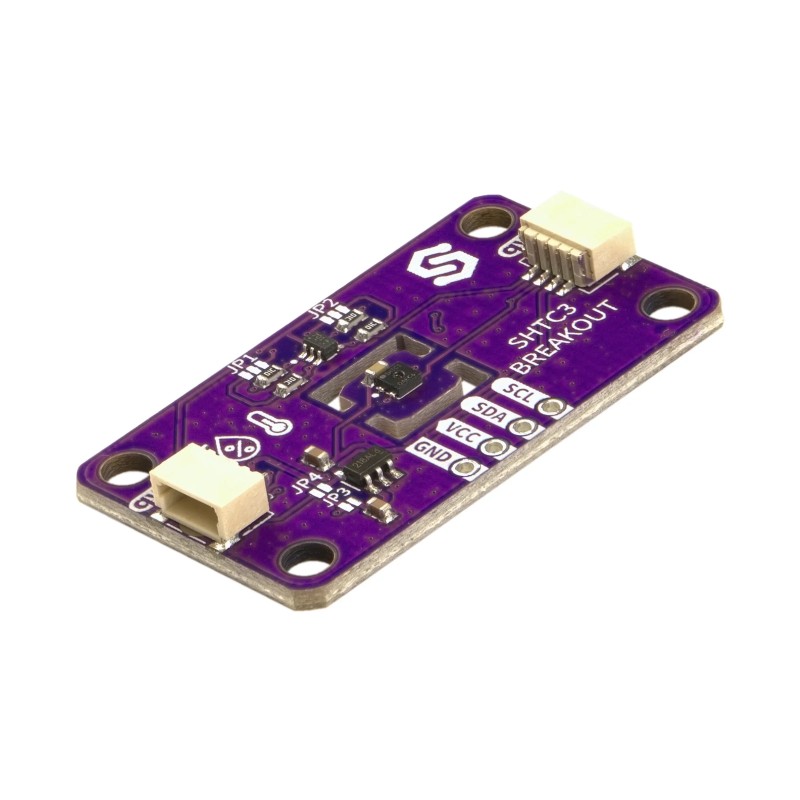

Soldered - SHTC3 I2C Qwiic temperature and humidity sensor
ID: 1208256
zł24.66
Tax included
zł20.05 tax excl.
Measurement module with a digital SHTC3 sensor, designed for measuring temperature and relative humidity. It offers a temperature measurement range from -40°C to 125°C with an accuracy of ±0.2°C and a humidity measurement range from 0% to 100% RH with an accuracy of ±2% RH. Communication is provided via I2C at address 0x70. Soldered 333032
Description
The board uses a digital SHTC3 sensor for simultaneous temperature and relative humidity measurement. The temperature measurement range is -40°C to 125°C with an accuracy of ±0.2°C, while relative humidity can be measured from 0% to 100% RH with an accuracy of ±2% RH. Communication with a microcontroller is provided via the I2C bus, and the hardware-defined module address is 0x70. Typical current consumption is 430 µA, while standby current consumption is 45 µA.
Two Qwiic connectors allow the module to be connected without soldering, while the 2.54 mm pin spacing also enables use with breadboards and prototyping circuits. The board operates with 3.3 V logic and features an onboard regulator allowing operation from a 5 V supply. The sensor can be used in weather stations, indoor environmental monitoring systems, greenhouses, building automation and IoT projects requiring temperature and humidity measurements. The board measures 22 x 22 mm.
Features
- Sensor: SHTC3
- Measured parameters: temperature and relative humidity
- Temperature measurement range: -40°C to 125°C
- Temperature measurement accuracy: ±0.2°C
- Humidity measurement range: 0% to 100% RH
- Humidity measurement accuracy: ±2% RH
- Communication interface: I2C
- I2C address: 0x70
- Number of Qwiic connectors: 2
- Logic voltage level: 3.3 V
- Operating voltage: 3.3 V
- Onboard regulator for 5 V operation
- Typical current consumption: 430 µA
- Standby current consumption: 45 µA
- Pin spacing: 2.54 mm
- Breadboard-compatible design
- Number of mounting holes: 2
- LEGO-compatible mounting holes
- Dimensions: 22 x 22 mm
- Arduino library support
- MicroPython module available
- Open-source design
- Manufactured in Croatia, EU
Kit includes
- Soldered Temperature and Humidity Sensor SHTC3 Breakout - 1 pc.
- Pin header - 1 pc.
1208256
Data sheet
- Interface
- I2C
- Type of sensor
- SHTC3
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Temperature and humidity
